Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7103-RCCMC 1.7MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 1A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7107-RCCMC 850UH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 850 µH @ 1 kHz | 2A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

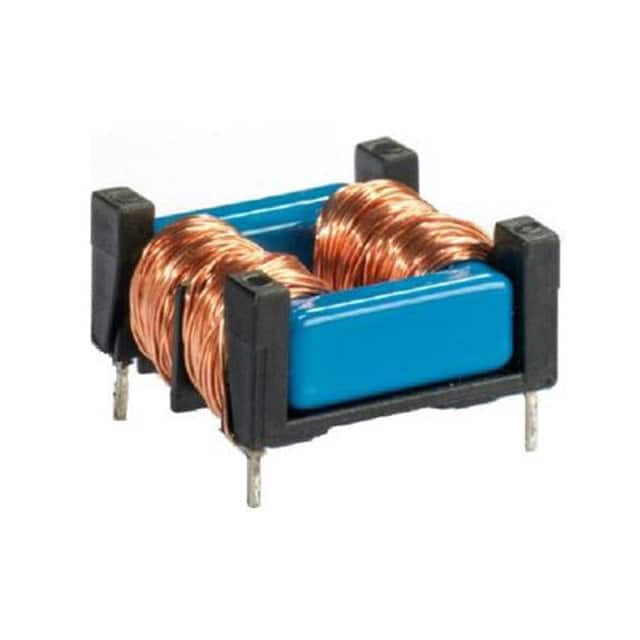

CMF23H-103231-BCMC 10MH 2.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 210mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-153191-BCMC 15MH 1.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.9A | 310mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-273141-BCMC 27MH 1.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 484mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-473111-BCMC 47MH 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-683900-BCMC 68MH 900MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 900mA | 1.21Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
CMF23V-104700-BCMC 100MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 700mA | 1.99Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-683900COMMON MODE INDUCTOR - L = 68MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 900mA | 1.21Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-683900COMMON MODE INDUCTOR - L = 68MH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 900mA | 1.21Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-153191COMMON MODE INDUCTOR - L = 15MH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 15 mH @ 10 kHz | 1.9A | 306mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-273141COMMON MODE INDUCTOR - L = 27MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 27 mH @ 10 kHz | 1.4A | 484mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-104700COMMON MODE INDUCTOR - L = 100MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 100 mH @ 10 kHz | 700mA | 1.99Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-103231COMMON MODE INDUCTOR - L = 10MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 2.3A | 210mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-393121COMMON MODE INDUCTOR - L = 39MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 39 mH @ 10 kHz | 1.2A | 766mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-473111COMMON MODE INDUCTOR - L = 47MH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-473111COMMON MODE INDUCTOR - L = 47MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23H-153191COMMON MODE INDUCTOR - L = 15MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 15 mH @ 10 kHz | 1.9A | 310mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-273141COMMON MODE INDUCTOR - L = 27MH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 10 kHz | 1.4A | 484mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-104700COMMON MODE INDUCTOR - L = 100MH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 10 kHz | 700mA | 1.99Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
