Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF0504-402YCMC 2.8UH 200MA 2LN 4KOHM SMD |
997 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 100 MHz | 2.8 µH @ 100 kHz | 200mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM1210A204R-1ACMC 200UH 70MA 2LN SMD AEC-Q200 |
7,293 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM2012-102-2P-T001CMC 190MA 2LN 1KOHM SMD AEC-Q200 |
4,354 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 190mA | 1.5Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
ACM2012-681-2P-T001CMC 200MA 2LN 680OHM SMD AECQ200 |
7,154 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 680 Ohms @ 100 MHz | - | 200mA | 1.3Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
AWCU00453228201XTECMC 200UH 100MA 2LN SMD AEC-Q200 |
9,312 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
AWCU00453226510XG0CMC 51UH 230MA 2LN 3.5KOHM SMD |
2,554 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.5 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
EMI8042MUTAGCMC 100MA 4LN SMD ESD |
0 |
|
Datasheet |
10-XFDFN | Signal Line | 4 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
DR331-104AECMC 100UH 500MA 2LN SMD |
1,472 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 100mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
RCM70CGI-471COMMON-MODE CHOKE 470 UH |
1,548 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 700mA | 170mOhm (Typ) | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-250-2P-TCMC 5A 2LN 250 OHM SMD |
1,495 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 14mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

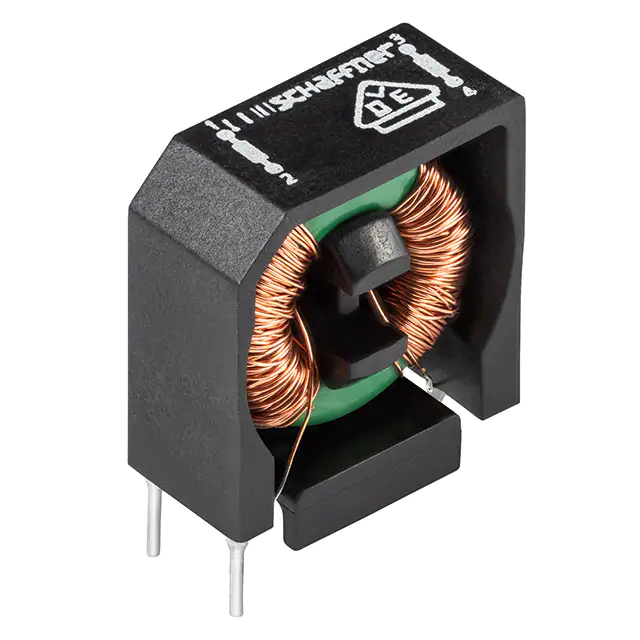

RC212-0.5-10MCMC 10MH 500MA 2LN TH |
291 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
SPDL485025-350-2P-TCMC 4A 2LN 350 OHM SMD |
2,486 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 4A | 28mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,716 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 19mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RC212-0.7-4M7CMC 4.7MH 700MA 2LN TH |
1,034 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 440mOhm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
RC212-0.3-30MCMC 30MH 300MA 2LN TH |
647 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 300mA | 2.2Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
LCFE080602A750TGCMC 100MA 2LN 75 OHM SMD ESD |
13,986 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
B82789C0113N002CMC 11UH 300MA 2LN SMD AEC-Q200 |
7,496 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 250mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EMI8141MUTAGCMC 100MA 2LN SMD ESD |
16,473 |
|
Datasheet |
6-XFDFN | Signal Line | 2 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

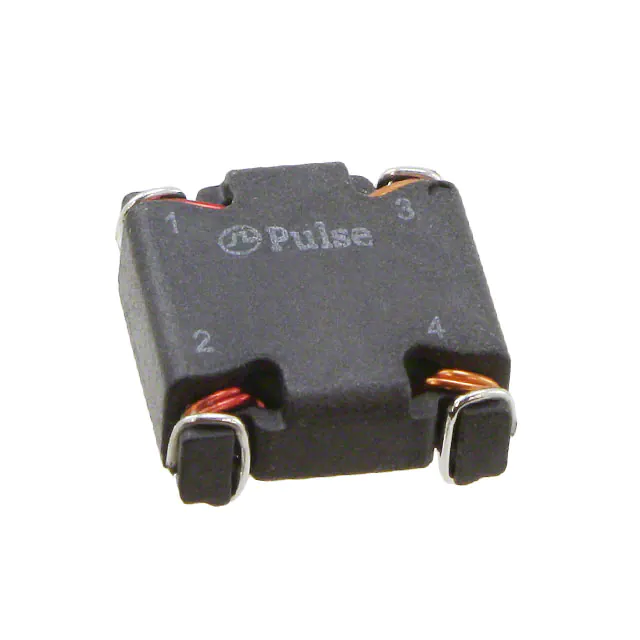

PA2744NLCMC 4A 2LN SMD |
7,218 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 4A | 13.2mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
APPM00485023102XY0CMC 3A 2LN 1000 OHM AEC-Q200 |
3,754 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 3A | 24mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
