Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UU9LFHNP-HB472CMC 4.7MH 340MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 340mA | 1.6Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFHNP-HB682CMC 6.8MH 250MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 250mA | 2.5Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFHNP-HB103CMC 10MH 200MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | - | - | - | - | - | - | - |
|
CM04RC02TCMC 500MA 3LN 1K OHM SMD |
0 |
|
Datasheet |
6-SMD, Gull Wing | Power, Signal Line | 3 | 1 kOhms @ 100 MHz | - | 500mA | 180mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
CM04RC05TCMC 500MA 4LN 800 OHM SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power, Signal Line | 4 | 800 Ohms @ 100 MHz | - | 500mA | 200mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
B82789C0113N001CMC 11UH 300MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 250mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

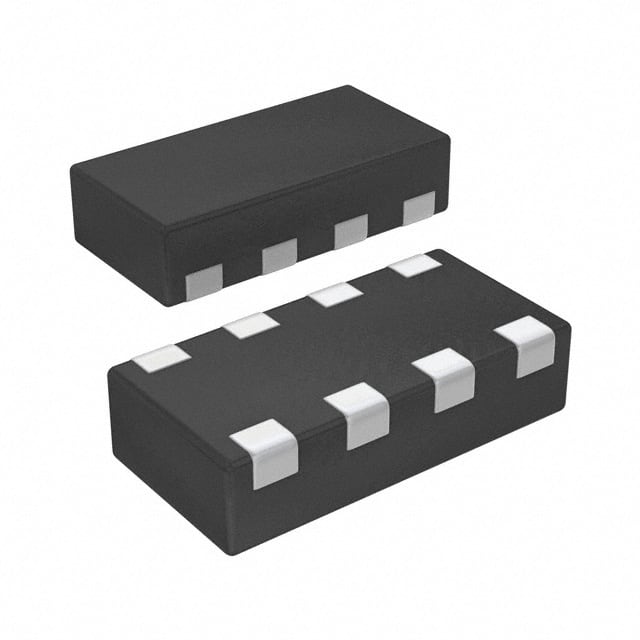

TCM1608G-350-4PCMC 100MA 4LN 35 OHM SMD |
0 |
|
Datasheet |
0603 (1608 Metric), 8 Lead | Signal Line | 4 | 35 Ohms @ 100 MHz | - | 100mA | 850mOhm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM1608G-900-4P-T200CMC 100MA 4LN 90 OHM SMD |
0 |
|
Datasheet |
0603 (1608 Metric), 8 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
AWCU00453226110XG0CMC 11UH 360MA 2LN 670OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 670 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 500mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00453226220XG0CMC 22UH 310MA 2LN 1.45KOHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.45 kOhms @ 10 MHz | 22 µH @ 100 kHz | 310mA | 600mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
CM5441Z161B-00CMC 75A 2LN 160 OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 160 Ohms @ 100 MHz | - | 75A | 0.3mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
ACMS-1065-251-TCMC 250UH 2A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 250 µH @ 100 kHz | 2A | 35mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-332-TCMC 3.3MH 650MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 3.3 mH @ 100 kHz | 650mA | 360mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-221-TCMC 220UH 2.2A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 220 µH @ 100 kHz | 2.2A | 32mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-222-TCMC 2.2MH 750MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 750mA | 300mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-472-TCMC 4.7MH 350MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 4.7 mH @ 100 kHz | 350mA | 720mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-471-TCMC 470UH 1.6A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 470 µH @ 100 kHz | 1.6A | 65mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-121-TCMC 120UH 2.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 120 µH @ 100 kHz | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMS-1065-392-TCMC 3.9MH 520MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 3.9 mH @ 100 kHz | 520mA | 540mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
LCFE300806A750TGCMC 100MA 6LN 75 OHM SMD ESD |
0 |
|
Datasheet |
1203 (3008 Metric), 14 Lead | Signal Line | 6 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
