Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-8-Lead-DLP2A-Series.jpg)
|
DLP2ADN161HL4LCMC 100MA 4LN 160 OHM SMD |
0 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 160 Ohms @ 100 MHz | - | 100mA | 3.13Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP2ADN281HL4LCMC 80MA 4LN 280 OHM SMD |
0 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 280 Ohms @ 100 MHz | - | 80mA | 5.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
BPPM00070638132X00CMC 2.5A 2LN 1.3K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.3 kOhms @ 100 MHz | - | 2.5A | 21mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638272X00CMC 1A 2LN 2.7K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.7 kOhms @ 100 MHz | - | 1A | 63mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638101X00CMC 9A 2LN 140 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 140 Ohms @ 100 MHz | - | 9A | 10mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638301X00CMC 5A 2LN 300 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 5A | 10mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638601X00CMC 4A 2LN 700 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638501X00CMC 5A 2LN 350 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 350 Ohms @ 100 MHz | - | 5A | 10mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638400X00CMC 15A 2LN 70 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 70 Ohms @ 100 MHz | - | 15A | 5mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00070638302X00CMC 900MA 2LN 3K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 100 MHz | - | 900mA | 75mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CPFC74NP-4251-T093COMMON MODE CHOKE |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ACM4532-102-3P-TCMC 200MA 3LN 1K OHM SMD |
0 |
|
Datasheet |
1812 (4532 Metric), 6 Lead | Signal Line | 3 | 1 kOhms @ 100 MHz | - | 200mA | 600mOhm | 20V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SRF1006-202YCMC 2MH 400MA 2LN 2KOHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2 kOhms @ 500 kHz | 2 mH @ 100 kHz | 400mA | 270mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF1006-402YCMC 4MH 300MA 2LN 4KOHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 500 kHz | 4 mH @ 100 kHz | 300mA | 550mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF1006-502YCMC 5MH 250MA 2LN 5KOHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 500 kHz | 5 mH @ 100 kHz | 250mA | 620mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCE0806S-120-2P-T200CMC 100MA 2LN 12 OHM SMD ESD |
0 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 1Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
TCE0806S-500-2PCMC 100MA 2LN 50 OHM SMD ESD |
0 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
PLA10AN7420R8R2BCMC 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 640mOhm | 300V | - | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLA10AS2221R5R2BCMC 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | - | 250V | - | -25°C ~ 60°C | - | - | - | - | - |
|

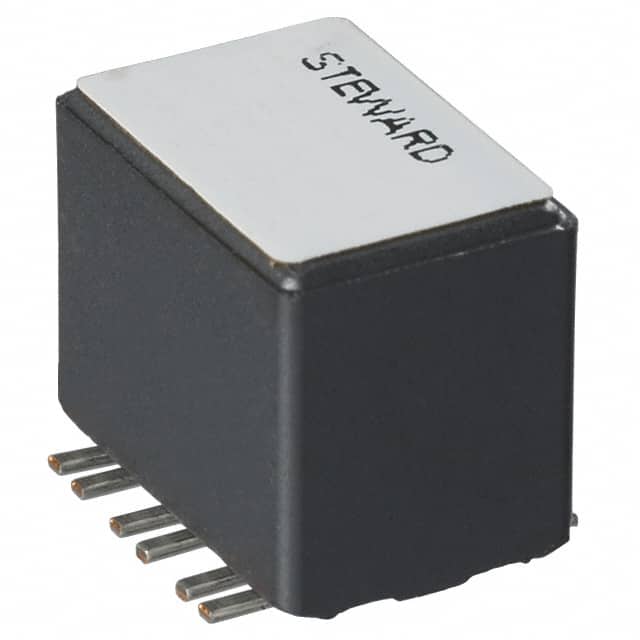

CM4732V201R-00CMC 8A 6LN 200 OHM SMD |
0 |
|
Datasheet |
Vertical, 12 Flat Lead | Power, Signal Line | 6 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
