Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACMP-5045-191-TCMC 5A 2LN 190 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 190 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-5045-801-TCMC 1.5A 2LN 800 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 800 Ohms @ 100 MHz | - | 1.5A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-5045-152-TCMC 1A 2LN 1.5K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.5 kOhms @ 100 MHz | - | 1A | 100mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-5045-501-TCMC 1.8A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 1.8A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-5045-351-TCMC 2A 2LN 350 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 2A | 40mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF0504A-102YCMC4.8X5X4.8MM,2.7UH1.5A,NON-SHD |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ZJYS51R5-2PL(T)-01CMC 2A 2LN 100 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | 100 Ohms @ 100 MHz | - | 2A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
MCZ1210DH500L2TA0GCMC 100MA 2LN 50 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCZ1210DH900L2TA0GCMC 100MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
-4-Leads-DLP31-Series.jpg)
|
DLP31SN121SL2LCMC 100MA 2LN 120 OHM SMD |
0 |
|
Datasheet |
1206 (3216 Metric), 4 Leads | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 2Ohm | 16V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP31SN551SL2LCMC 100MA 2LN 550 OHM SMD |
0 |
|
Datasheet |
1206 (3216 Metric), 4 Leads | - | 2 | 550 Ohms @ 100 MHz | - | 100mA | 3.6Ohm | 16V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SRF0905A-151MCMC 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
3623 (9260 Metric), Array, 4 PC Pad | Power Line | 2 | - | - | - | - | - | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
UU9LFNP-B-B103CMC 10MH 200MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | - | - | - | - | - | - | - |
|
CM04RC07TCMC 2.5A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power, Signal Line | 2 | 500 Ohms @ 160 MHz | - | 2.5A | 60mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|

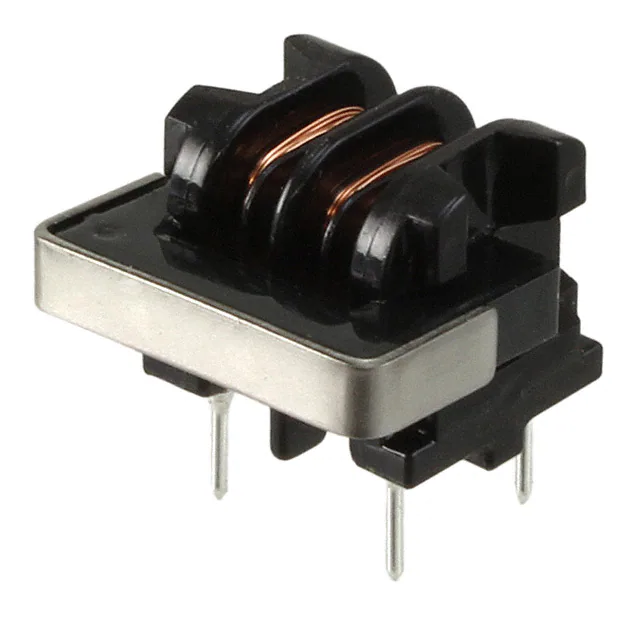

SU9HF-06030CMC 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 600mA | 820mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ECMS1V1306-231-RCMC 10A 2LN 230 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 10A | 2mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMS1V1306-801-RCMC 8A 2LN 800 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 800 Ohms @ 100 MHz | - | 8A | 8mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMS1V1306-272-RCMC 1.5A 2LN 2.7K OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 2.7 kOhms @ 100 MHz | - | 1.5A | - | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ECMS1V1306-252-RCMC 1.8A 2LN 2.5K OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 2.5 kOhms @ 100 MHz | - | 1.8A | - | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM0805C161R-10CMC 300MA 2LN 160 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 300mA | 350mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
