Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-4-Leads-DLP31-Series.jpg)
|
DLP31SN121ML2LCMC 100MA 2LN 120 OHM SMD |
34,902 |
|
Datasheet |
1206 (3216 Metric), 4 Leads | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 2Ohm | 16V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SN8S-130NMC 4.0UH 5.0A 0.0120 OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 4 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
CM422SG222NCMC 2.2MH 500MA 2LN SMD |
995 |
|
Datasheet |
- | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 500mA | 540mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSHB10HS-R13071CMC 7.1MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7.1 mH @ 10 kHz | 1.3A | 250mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
1812CAN-513NRCCMC 300MA 2LN OHM SMD |
2,090 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 51 µH @ 100 kHz | 300mA | 590mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
1812CAN-104NRCCMC 260MA 2LN OHM SMD |
1,394 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 260mA | 1Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SN10-300JCMC 40UH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 40 µH @ 100 kHz | 3A | 41mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
1812CAN-113NRCCMC 460MA 2LN OHM SMD |
696 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 11 µH @ 100 kHz | 460mA | 270mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
1812CAN-223NRCCMC 400MA 2LN OHM SMD |
455 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 22 µH @ 100 kHz | 400mA | 400mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS20H-R06200CMC 20MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 600mA | 930mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CTACM9070F-701CMC SMD |
895 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

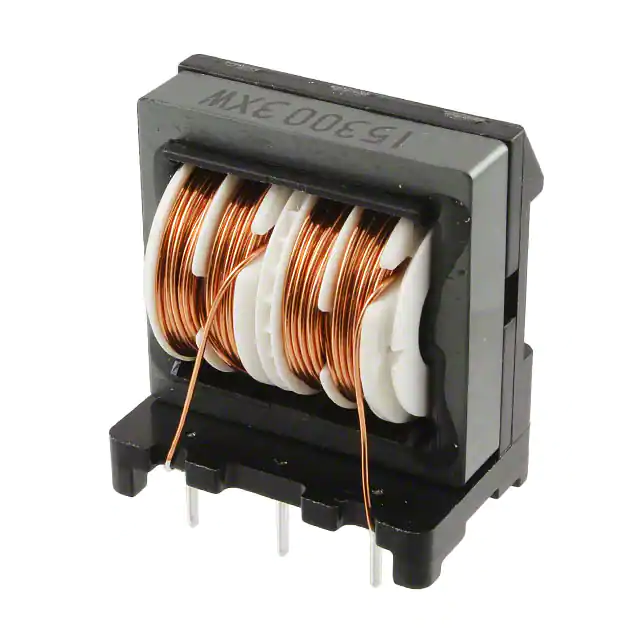

SS35V-15300CMC 30MH 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 1.5A | 480mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE060502A120TGCMC 100MA 2LN 12 OHM SMD ESD |
15,001 |
|
Datasheet |
0202 (0605 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSR10HS-04745CMC 74.5MH 400MA 2LN TH |
187 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 74.5 mH @ 10 kHz | 400mA | 2.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-08220CMC 22MH 800MA 2LN TH |
178 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 800mA | 650mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
FL2D-30-4724.7MH 2 LINE COMMON MODE CHOKE T |
118 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 3A | 70mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82793C0206N265CMC 20MH 100MA 2LN SMD |
3,878 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 20 mH @ 100 kHz | 100mA | 1.8Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
SZEMI2121MTTAGCMC 100MA 2LN SMD ESD AEC-Q101 |
2,353 |
|
Datasheet |
8-WFDFN | Signal Line | 2 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
B82793C0476N265CMC 47MH 100MA 2LN SMD AEC-Q200 |
655 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 47 mH @ 10 kHz | 100mA | 3.7Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM6050M201R-10CMC 4.4A 2LN 200 OHM SMD |
5,330 |
|
Datasheet |
Nonstandard | Power Line | 2 | 200 Ohms @ 10 MHz | - | 4.4A | 9.1mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
