Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
0805USBF-672MRCCMC 500MA 2LN 1.65 OHM SMD |
2,210 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 1.65 kOhms @ 1.2 GHz | 434 nH @ 100 MHz | 500mA | 370mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
0805USBF-172MRCCMC 500MA 2LN 520 OHM SMD |
1,754 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 520 Ohms @ 2.5 GHz | 101 nH @ 100 MHz | 500mA | 220mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
0805USBF-262MRCCMC 500MA 2LN 690 OHM SMD |
1,596 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 690 Ohms @ 2 GHz | 165 nH @ 100 MHz | 500mA | 235mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
0603USB-222MLC0603USB-222MLC |
26,086 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 660 Ohms @ 1.8 GHz | 150 nH @ 100 MHz | 500mA | 209mOhm | - | 250V | -40°C ~ 85°C | - | - | - | - | - |
|
|
0603USB-142MLC0603USB-142MLC |
10,262 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 420 Ohms @ 1.9 GHz | 98 nH @ 100 MHz | 500mA | 174mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
0603USB-251MLC0603USB-251MLC |
9,143 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 100 Ohms @ 3 GHz | 18 nH @ 100 MHz | 500mA | 77mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
0603USB-601MLC0603USB-601MLC |
1,698 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 3 GHz | 37 nH @ 100 MHz | 500mA | 109mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
ACMS-Q4526C-101-TCMC 100UH 200MA 2LN SMD AEC-Q200 |
3,999 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 200mA | 2Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

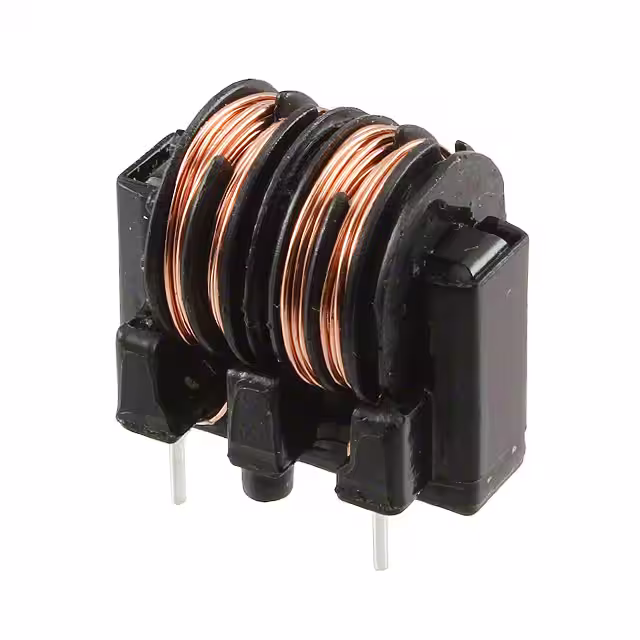

SS17VA-R10025CMC 2.5MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 1A | 380mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS20H-10080CMC 8MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 1A | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
FL2D-10-2222.2MH 2 LINE COMMON MODE CHOKE T |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1A | 90mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
WCM9070-701T50-M2 LINE COMMON MODE CHOKE SURFACE |
1,278 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 700 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM9070-102T40-M2 LINE COMMON MODE CHOKE SURFACE |
1,304 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 100 MHz | - | 4A | 13mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
LCF201204B101TGCMC 120MA 4LN 100 OHM SMD |
8,090 |
|
Datasheet |
0805 (2012 Metric), 8 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 120mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
OWICM5025RF-102CMC 2.5A 2LN 1K OHM SMD |
2,500 |
|
- |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 2A | - | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
OWICM5025RF-501CMC 500 OHM@ 100MHZ 4.0A 2LN SMD |
495 |
|
- |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 4A | - | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS21V-R400005CMC 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
1206USB-113MLCCMC 500MA 2LN 2.24 OHM SMD |
17,363 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.24 kOhms @ 660 MHz | 623 nH @ 100 MHz | 500mA | 440mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
1206USB-102MLCCMC 850MA 2LN 360 OHM SMD |
8,360 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 1.9 GHz | 66 nH @ 100 MHz | 850mA | 140mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
1206USB-532MLCCMC 600MA 2LN 1.45 OHM SMD |
8,202 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.45 kOhms @ 930 MHz | 319 nH @ 100 MHz | 600mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
