Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
WCM1211F-701T80-M2 LINE COMMON MODE CHOKE SURFACE |
840 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-10-5023.5MH 2 LINE COMMON MODE CHOKE T |
120 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1A | 220mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM5555FASV-501-LMCMC 2LN 500OHM 10.5MOHM 4.5A |
4,183 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4.5A | 10.5mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-101-LMCMC 2LN 100OHM 6MOHM 8.5A |
3,519 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 140 Ohms @ 100 MHz | - | 8.5A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-102-LMCMC 2LN 1000OHM 20MOHM 3A |
2,805 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 3A | 20mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-301-LMCMC 2LN 300OHM 7.5MOHM 4.8A |
2,016 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 4.8A | 7.5mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-701-LMCMC 2LN 700OHM 13MOHM 3.8A |
1,304 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 3.8A | 13mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
WCM5555FASV-142-LMCMC 2LN 1400OHM 38MOHM 2.8A |
281 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 2.8A | 38mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
RS612-0.5-02CMC 200UH 500MA 2LN TH |
424 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RS612-1-02CMC 55UH 1A 2LN TH |
840 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RS512-1-02CMC 55UH 1A 2LN TH |
150 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
WCM 1211FASV-102-LM2 LINE COMMON MODE CHOKE SURFACE |
885 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 7A | 8mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SSR21HS-07245CMC 24.5MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 24.5 mH @ 10 kHz | 700mA | 590mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE080602W500TGCMC 100MA 2LN 50 OHM SMD ESD |
18,006 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 7Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SS24H-R10170-CHCMC 17MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

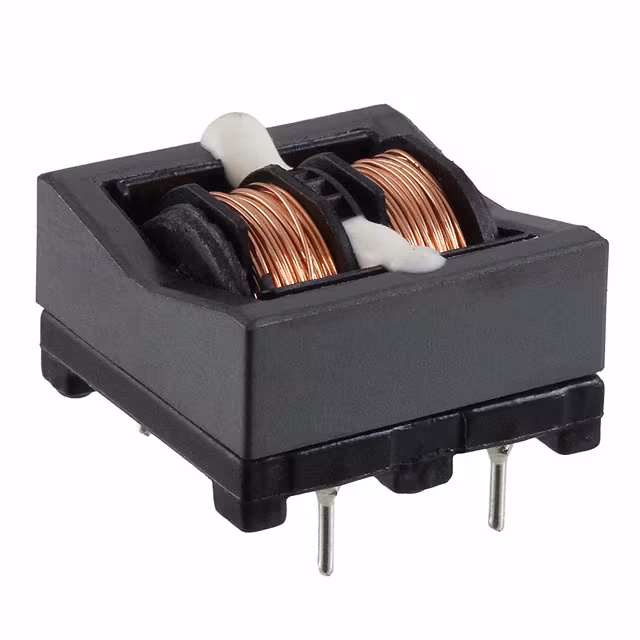

SSR21H-06425CMC 42.5MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 42.5 mH @ 10 kHz | 600mA | 890mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|

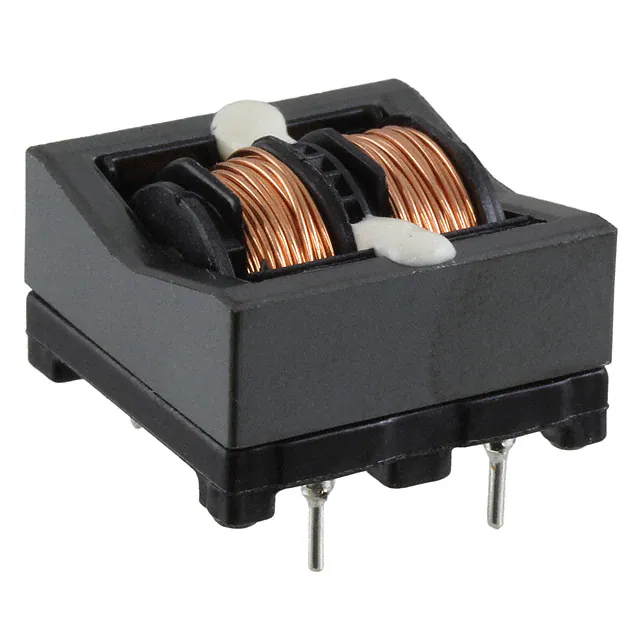

SSR21H-10215CMC 21.5MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 21.5 mH @ 10 kHz | 1A | 410mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
|
LCFE080602A250TGCMC 100MA 2LN 25 OHM SMD ESD |
15,447 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SSHB21HS-18046CMC 4.6MH 1.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.6 mH @ 10 kHz | 1.8A | 200mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
TCE0806S-350-2PCMC 100MA 2LN 35 OHM SMD ESD |
4,735 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.8Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
