Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

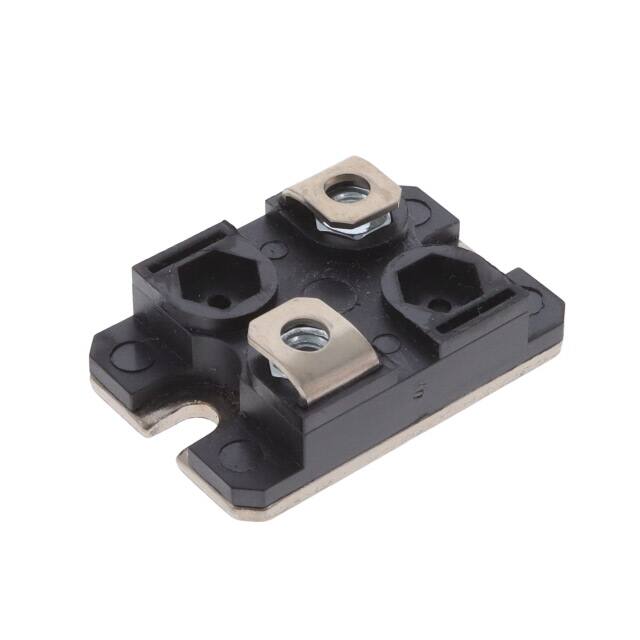

RTOP200VR100JBSFERNICE FIXED RESISTORS |
8 |
|
Datasheet |
RTOP | SOT-227-4 | Box | Active | 100 mOhms | ±5% | 200W | Thick Film | ±300ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.508" (12.90mm) | M4 Threaded | - | - | - |
|
HCH265J82RJ400W 82R 5% LEAD |
20 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 82 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
HCH265J220RJ400W 220R 5% LEAD |
14 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 220 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
HCH265J100RJ400W 100R 5% LEAD |
13 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 100 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
HCH265J68RJHCH265 400W 68R 5% LEAD |
7 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 68 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
HCH265J47RJHCH265 400W 47R 5% LEAD |
5 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 47 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
TE2000B1K8JRES CHAS MNT 1.8K OHM 5% 2000W |
10 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.8 kOhms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B5R6JRES CHAS MNT 5.6 OHM 5% 2000W |
12 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 5.6 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2000B6R8JRES CHAS MNT 6.8 OHM 5% 2000W |
10 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 6.8 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B180RJRES CHAS MNT 180 OHM 5% 2000W |
7 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 180 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2000B150RJRES CHAS MNT 150 OHM 5% 2000W |
3 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 150 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
LPSA800H1000JBLPSA 800 H 100U 5% BO15 E |
6 |
|
Datasheet |
LPS 800 | Box | Box | Active | 100 Ohms | ±5% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | Automotive | AEC-Q200 |
|
HCH265J10RJHCH265 400W 10R 5% LEAD |
4 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 10 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
HCH265J22RJHCH265 400W 22R 5% LEAD |
3 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 22 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
CJH1250J12RJCJH 1250W 12R 5% LEAD |
10 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 12 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J82RJCJH 1250W 82R 5% LEAD |
8 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 82 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J330RJCJH 1250W 330R 5% LEAD |
7 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 330 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J22RJCJH 1250W 22R 5% LEAD |
6 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 22 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J68RJCJH 1250W 68R 5% LEAD |
6 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 68 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J1K8JCJH 1250W 1K8 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 1.8 kOhms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
