Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CJP1000J560RJCJP 1000W 560R 5% LEAD |
10 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 560 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J220RJCJP 1000W 220R 5% LEAD |
10 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 220 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J82RJCJP 1000W 82R 5% LEAD |
10 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 82 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J390RJCJP 1000W 390R 5% LEAD |
10 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 390 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J1K8JCJP 1000W 1K8 5% LEAD |
9 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 1.8 kOhms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J22RJCJP 1000W 22R 5% LEAD |
9 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 22 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J150RJCJP 1000W 150R 5% LEAD |
7 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 150 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J820RJCJP 1000W 820R 5% LEAD |
6 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 820 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J1K2JCJP 1000W 1K2 5% LEAD |
6 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 1.2 kOhms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J120RJCJP 1000W 120R 5% LEAD |
5 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 120 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J2R2JCJP 1000W 2R2 5% LEAD |
5 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 2.2 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J2R7JCJP 1000W 2R7 5% LEAD |
5 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 2.7 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J8R2JCJP 1000W 8R2 5% LEAD |
5 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 8.2 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J27RJCJP 1000W 27R 5% LEAD |
3 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 27 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J3R3JCJP 1000W 3R3 5% LEAD |
3 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 3.3 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J270RJCJP 1000W 270R 5% LEAD |
3 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 270 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
|
CJP1000J180RJCJP 1000W 180R 5% LEAD |
2 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 180 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|

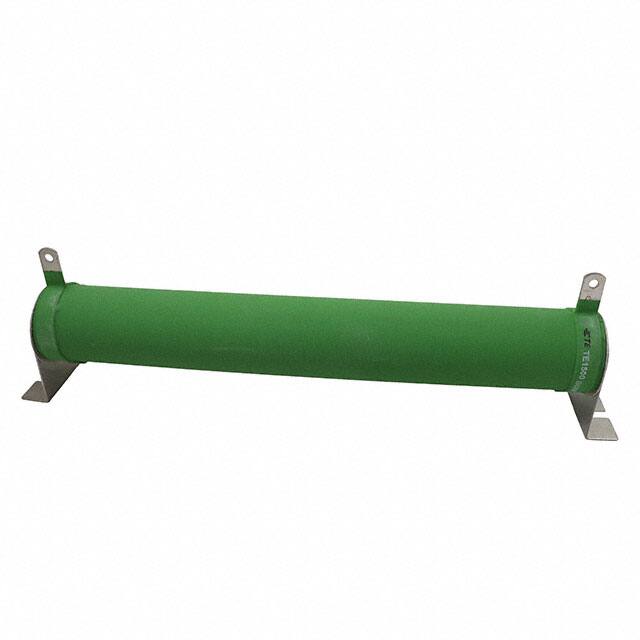

TE1500B680RJRES CHAS MNT 680 OHM 5% 1500W |
9 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 680 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
HCH165J47RJHCH165 200W 47R 5% LEAD |
25 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 47 Ohms | ±5% | 200W | Wirewound | ±200ppm/°C | 320°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 6.496" L x 2.362" W (165.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|

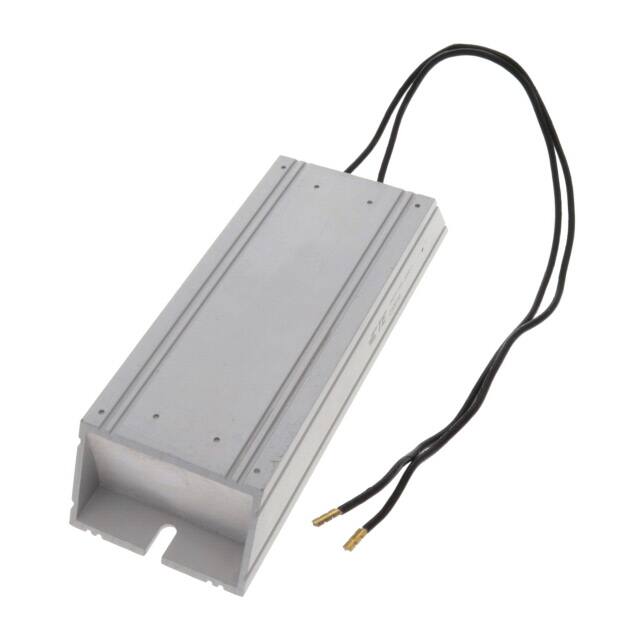

HCH165J33RJHCH165 200W 33R 5% LEAD |
20 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 33 Ohms | ±5% | 200W | Wirewound | ±200ppm/°C | 320°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 6.496" L x 2.362" W (165.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
