Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CJH2000J100RJCJH 2000W 100R 5% LEAD |
8 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 100 Ohms | ±5% | 2000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH2000J22RJCJH 2000W 22R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 22 Ohms | ±5% | 2000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH2000J10RJCJH 2000W 10R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 10 Ohms | ±5% | 2000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
RCMC50010R0KBMCB RESISTORS |
19 |
|
Datasheet |
RCMC | Box | Box | Active | 10 Ohms | ±10% | 750W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | - | Flanges | 2.362" L x 2.638" W (60.00mm x 67.00mm) | 1.594" (40.50mm) | M4 Threaded | - | - | - |
|
|
CJH3000J22RJCJH 3000W 22R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 22 Ohms | ±5% | 3000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH3000J27RJCJH 3000W 27R 5% LEAD |
2 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 27 Ohms | ±5% | 3000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH4000J220RJCJH 4000W 220R 5% LEAD |
6 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 220 Ohms | ±5% | 4000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 17.717" L x 4.055" W (450.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH4000J100RJCJH 4000W 100R 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 100 Ohms | ±5% | 4000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 17.717" L x 4.055" W (450.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH4000J33RJCJH 4000W 33R 5% LEAD |
2 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 33 Ohms | ±5% | 4000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 17.717" L x 4.055" W (450.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
FSE100022E10R0KERES CHAS MNT 10 OHM 10% 1000W |
22 |
|
Datasheet |
FSE | Radial, Tubular | Bulk | Active | 10 Ohms | ±10% | 1000W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Brackets (not included) | 2.500" Dia x 15.000" L (63.50mm x 381.00mm) | - | Solder Lugs | - | - | - |
|
|
CJH5000J270RJCJH 5000W 270R 5% LEAD |
7 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 270 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J27RJCJH 5000W 27R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 27 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J100RJCJH 5000W 100R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 100 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
SQBW2068RJRES 68 OHM 20W 5% RADIAL |
82 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 68 Ohms | ±5% | 20W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | - | - | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
THS10R22JRES CHAS MNT 0.22 OHM 5% 10W |
93 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 220 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
THS102R2JRES CHAS MNT 2.2 OHM 5% 10W |
80 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 2.2 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10R47JRES CHAS MNT 0.47 OHM 5% 10W |
70 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 470 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS1075RJRES CHAS MNT 75 OHM 5% 10W |
52 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 75 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|

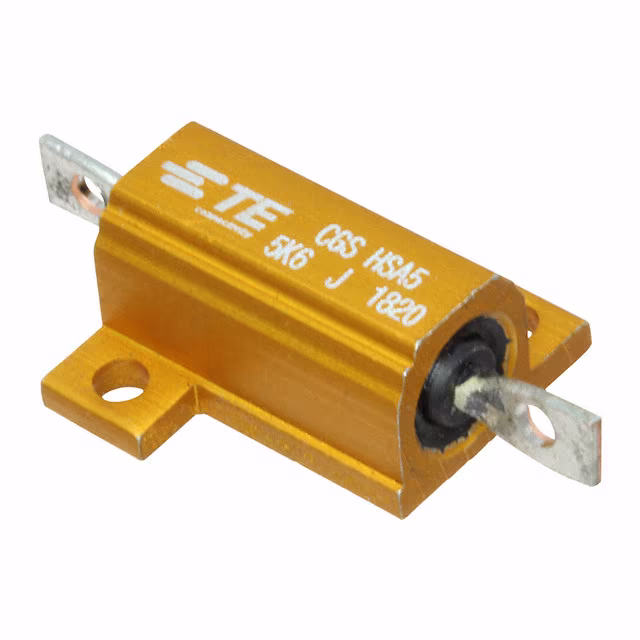

HSA55K6JRES CHAS MNT 5.6 OHMS 5% 10W |
81 |
|
Datasheet |
HS | Axial, Box | Box | Active | 5.6 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | - | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS15330RJRES CHAS MNT 330 OHM 5% 15W |
2 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 330 Ohms | ±5% | 15W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.433" (11.00mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
