Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCH165J22RJHCH165 200W 22R 5% LEAD |
12 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 22 Ohms | ±5% | 200W | Wirewound | ±200ppm/°C | 320°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 6.496" L x 2.362" W (165.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
TE1500B2R7JRES CHAS MNT 2.7 OHM 5% 1500W |
12 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 2.7 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
RTOP200V4R70JBSFERNICE FIXED RESISTORS |
18 |
|
Datasheet |
RTOP | SOT-227-4 | Box | Active | 4.7 Ohms | ±5% | 200W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.508" (12.90mm) | M4 Threaded | - | - | - |
|

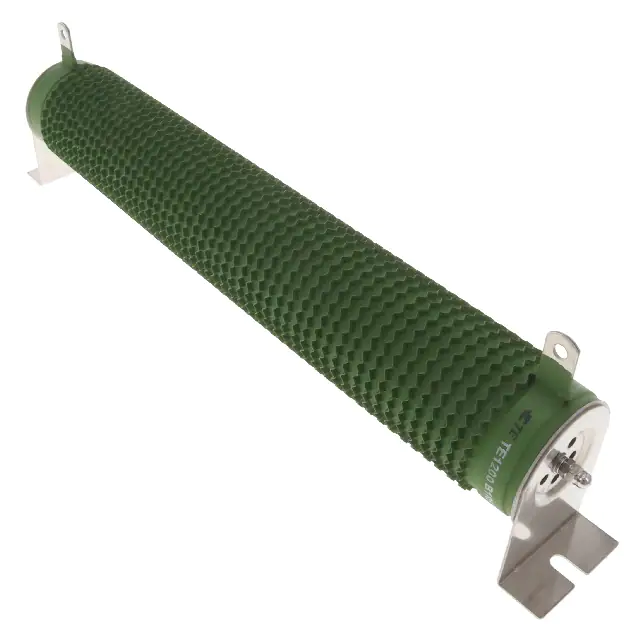

TE1200B1R5JRES CHAS MNT 1.5 OHM 5% 1200W |
14 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 Ohms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|

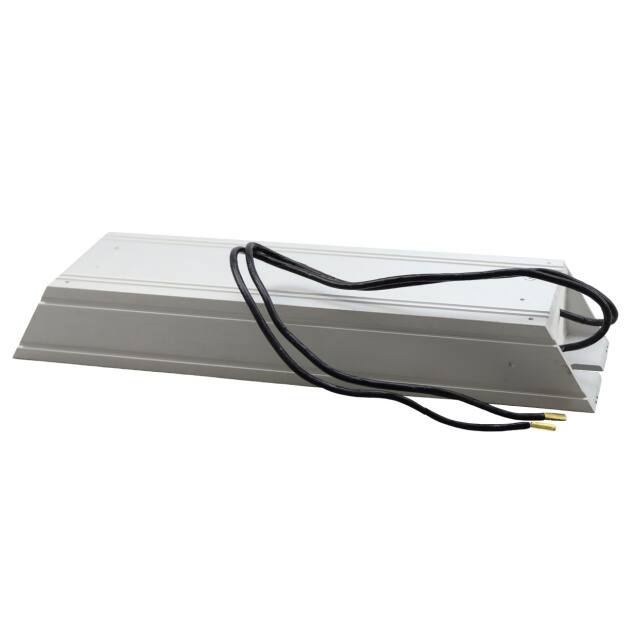

HCH265J33RJHCH265 400W 33R 5% LEAD |
10 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 33 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
TE2000B120RJRES CHAS MNT 120 OHM 5% 2000W |
5 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 120 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
LPSA800H1R00JBLPSA 800 H 1U 5% BO15 E |
11 |
|
Datasheet |
LPS 800 | Box | Box | Active | 1 Ohms | ±5% | 800W | Thick Film | ±500ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | Automotive | AEC-Q200 |
|
CJH1250J15RJCJH 1250W 15R 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 15 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J10RJCJH 1250W 10R 5% LEAD |
4 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 10 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J220RJCJH 1250W 220R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 220 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
HCH335J220RJHCH335 500W 220R 5% LEAD |
6 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 220 Ohms | ±5% | 500W | Wirewound | ±200ppm/°C | 375°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 13.189" L x 2.362" W (335.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
LPS0800H1002JBSFERNICE FIXED RESISTORS |
17 |
|
Datasheet |
LPS 800 | Box | Box | Active | 10 kOhms | ±5% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
TE2500B470RJRES CHAS MNT 470 OHM 5% 2500W |
3 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 470 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B390RJRES CHAS MNT 390 OHM 5% 2500W |
9 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 390 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
CJH1500J8R2JCJH 1500W 8R2 5% LEAD |
7 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 8.2 Ohms | ±5% | 1500W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 19.488" L x 2.638" W (495.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1500J10RJCJH 1500W 10R 5% LEAD |
11 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 10 Ohms | ±5% | 1500W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 19.488" L x 2.638" W (495.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1500J47RJCJH 1500W 47R 5% LEAD |
10 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 47 Ohms | ±5% | 1500W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 19.488" L x 2.638" W (495.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1500J390RJCJH 1500W 390R 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 390 Ohms | ±5% | 1500W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 19.488" L x 2.638" W (495.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
RPS0500DH10R0JBRES CHAS MNT 10 OHM 5% 500W |
10 |
|
Datasheet |
RPS 500 | Box | Bulk | Active | 10 Ohms | ±5% | 500W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Pulse Withstanding | Aluminum Oxide | Flanges | 2.874" L x 2.362" W (73.00mm x 60.00mm) | 1.063" (27.00mm) | M4 Threaded | - | - | - |
|
|
RPS0500DH47R0JBRES CHAS MNT 47 OHM 5% 500W |
8 |
|
Datasheet |
RPS 500 | Box | Bulk | Active | 47 Ohms | ±5% | 500W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Pulse Withstanding | Aluminum Oxide | Flanges | 2.874" L x 2.362" W (73.00mm x 60.00mm) | 1.063" (27.00mm) | M4 Threaded | - | - | - |
