Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BDS2A100100RKRES CHAS MNT 100 OHM 10% 100W |
0 |
|
Datasheet |
BDS, CGS | SOT-227-2 | Bulk | Active | 100 Ohms | ±10% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.827" (21.00mm) | M4 Threaded | - | - | - |
|
CJP1000J330RJCJP 1000W 330R 5% LEAD |
1 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 330 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
LPS0600H22R0JBSFERNICE FIXED RESISTORS |
0 |
|
Datasheet |
LPS 600 | Box | Box | Active | 22 Ohms | ±5% | 600W | Thick Film | ±150ppm/°C | -55°C ~ 155°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
TE1200B33RJRES CHAS MNT 33 OHM 5% 1200W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 33 Ohms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
TE1200B22RJRES CHAS MNT 22 OHM 5% 1200W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 22 Ohms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1200B1K5JRES CHAS MNT 1.5K OHM 5% 1200W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 kOhms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
|
HCH215J100RJHCH215 300W 100R 5% LEAD |
1 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 100 Ohms | ±5% | 300W | Wirewound | ±200ppm/°C | 330°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 8.465" L x 2.362" W (215.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|

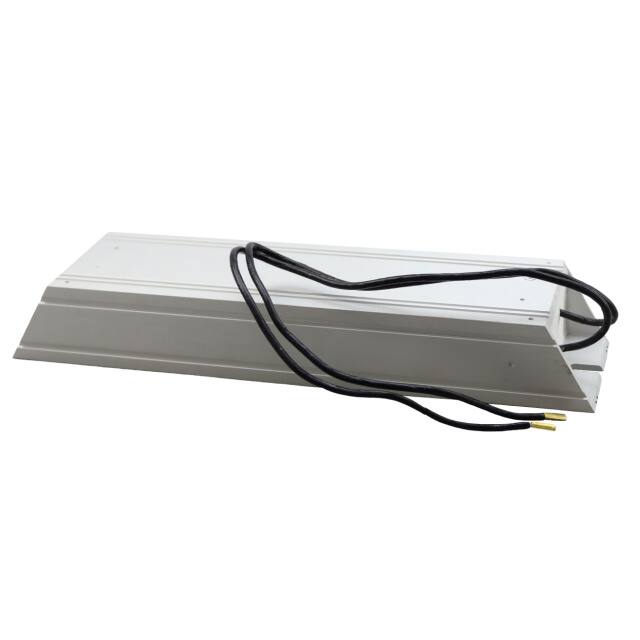

HCH215J220RJHCH215 300W 220R 5% LEAD |
0 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 220 Ohms | ±5% | 300W | Wirewound | ±200ppm/°C | 330°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 8.465" L x 2.362" W (215.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
|
TE1200B4R7JRES CHAS MNT 4.7 OHM 5% 1200W |
1 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 4.7 Ohms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
HCH215J10RJHCH215 300W 10R 5% LEAD |
0 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 10 Ohms | ±5% | 300W | Wirewound | ±200ppm/°C | 330°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 8.465" L x 2.362" W (215.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J120RJCJH 1250W 120R 5% LEAD |
1 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 120 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J5R6JCJH 1250W 5R6 5% LEAD |
1 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 5.6 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J18RJCJH 1250W 18R 5% LEAD |
0 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 18 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH1250J39RJCJH 1250W 39R 5% LEAD |
0 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 39 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
|
CJH2000J82RJCJH 2000W 82R 5% LEAD |
1 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 82 Ohms | ±5% | 2000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH3000J150RJCJH 3000W 150R 5% LEAD |
1 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 150 Ohms | ±5% | 3000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH4000J47RJCJH 4000W 47R 5% LEAD |
0 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 47 Ohms | ±5% | 4000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 17.717" L x 4.055" W (450.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
FSE100022E3R50KERES CHAS MNT 3.5 OHM 10% 1000W |
0 |
|
Datasheet |
FSE | Radial, Tubular | Bulk | Active | 3.5 Ohms | ±10% | 1000W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Brackets (not included) | 2.500" Dia x 15.000" L (63.50mm x 381.00mm) | - | Solder Lugs | - | - | - |
|
|
FSE100022E15R0KERES CHAS MNT 15 OHM 10% 1000W |
0 |
|
Datasheet |
FSE | Radial, Tubular | Bulk | Active | 15 Ohms | ±10% | 1000W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Brackets (not included) | 2.500" Dia x 15.000" L (63.50mm x 381.00mm) | - | Solder Lugs | - | - | - |
|
|
CJH5000J150RJCJH 5000W 150R 5% LEAD |
1 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 150 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
