Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE50BR39JTE 50W R39 5% BRACKET |
4 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 390 mOhms | ±5% | 50W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
|
TE50B2K7JTE 50W 2K7 5% BRACKET |
1 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 2.7 kOhms | ±5% | 50W | Wirewound | ±300ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
|
TE50BR82JTE 50W R82 5% BRACKET |
0 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 820 mOhms | ±5% | 50W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
RCH10S100R0JS06SFERNICE FIXED RESISTORS |
0 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 100 Ohms | ±5% | 10W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
TE60BR33JTE 60W R33 5% BRACKET |
4 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 330 mOhms | ±5% | 60W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
|
TE60BR82JTE 60W R82 5% BRACKET |
1 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 820 mOhms | ±5% | 60W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|

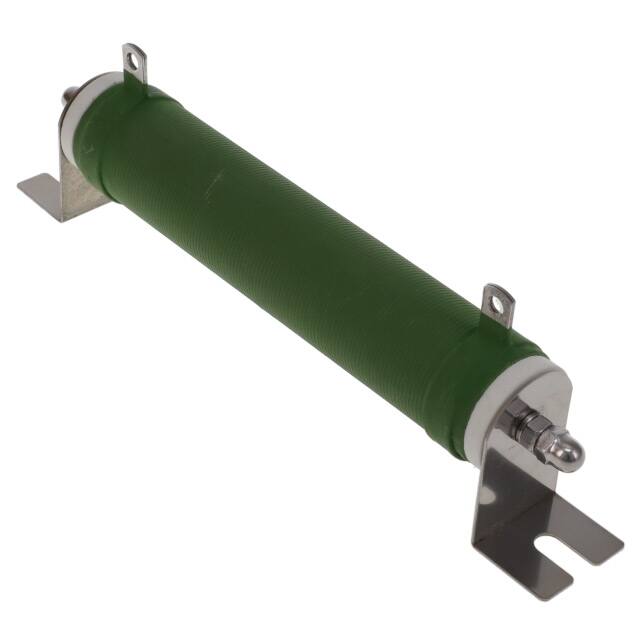

TE80B120RJRES CHAS MNT 120 OHM 5% 80W |
4 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 120 Ohms | ±5% | 80W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 5.984" L (28.00mm x 152.00mm) | - | Solder Lugs | - | - | - |
|
|
TE80BR10JTE 80W R10 5% BRACKET |
4 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 100 mOhms | ±5% | 80W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 5.984" L (28.00mm x 152.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
|
TE80BR47JTE 80W R47 5% BRACKET |
2 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 470 mOhms | ±5% | 80W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 5.984" L (28.00mm x 152.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
|
TE80BR22JTE 80W R22 5% BRACKET |
0 |
|
Datasheet |
TE | Radial, Tubular | Box | Active | 220 mOhms | ±5% | 80W | Wirewound | ±400ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | - | Brackets | 1.102" Dia x 5.984" L (28.00mm x 152.00mm) | 2.520" (64.00mm) | Solder Lugs | - | - | - |
|
HSC150510RJRES CHAS MNT 510 OHM 5% 150W |
2 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 510 Ohms | ±5% | 150W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
TE100B180RJRES CHAS MNT 180 OHM 5% 100W |
5 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 180 Ohms | ±5% | 100W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 7.165" L (28.00mm x 182.00mm) | - | Solder Lugs | - | - | - |
|
|
TE100B18RJRES CHAS MNT 18 OHM 5% 100W |
4 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 18 Ohms | ±5% | 100W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 7.165" L (28.00mm x 182.00mm) | - | Solder Lugs | - | - | - |
|
|
TE100B820RJRES CHAS MNT 820 OHM 5% 100W |
4 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 820 Ohms | ±5% | 100W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 7.165" L (28.00mm x 182.00mm) | - | Solder Lugs | - | - | - |
|
|
TE100B470RJRES CHAS MNT 470 OHM 5% 100W |
2 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 470 Ohms | ±5% | 100W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 7.165" L (28.00mm x 182.00mm) | - | Solder Lugs | - | - | - |
|
TE100B5R6JRES CHAS MNT 5.6 OHM 5% 100W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 5.6 Ohms | ±5% | 100W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 7.165" L (28.00mm x 182.00mm) | - | Solder Lugs | - | - | - |
|
RCH50S4R700JS06SFERNICE FIXED RESISTORS |
4 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 4.7 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 0.610" W (47.80mm x 15.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
CJP80J1R5JCJP 80W 1R5 5% LEAD |
0 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 1.5 Ohms | ±5% | 80W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 5.512" L x 1.575" W (140.00mm x 40.00mm) | 0.827" (21.00mm) | Wire Leads | - | - | - |
|
FVTS05R2E600R0JERES CHAS MNT 600 OHM 5% 5W |
0 |
|
Datasheet |
FVTS | Radial, Tubular | Bulk | Active | 600 Ohms | ±5% | 5W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | Combo Leads | - | - | - |
|
|
FVTS05R2E3K000JERES CHAS MNT 3K OHM 5% 5W |
0 |
|
Datasheet |
FVTS | Radial, Tubular | Bulk | Active | 3 kOhms | ±5% | 5W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | Combo Leads | - | - | - |
