Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE2500B100RJRES CHAS MNT 100 OHM 5% 2500W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 100 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B27RJRES CHAS MNT 27 OHM 5% 2500W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 27 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B68RJRES CHAS MNT 68 OHM 5% 2500W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 68 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B1K0JRES CHAS MNT 1K OHM 5% 2500W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 kOhms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
LPS1100H47R0JBRES CHAS MNT 47 OHM 5% 1100W |
0 |
|
Datasheet |
LPS 1100 | Box | Bulk | Active | 47 Ohms | ±5% | 1100W | Thick Film | ±150ppm/°C | -55°C ~ 200°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
HSA5150RJRES CHAS MNT 150 OHM 5% 10W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 150 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
HSA2527RJRES CHAS MNT 27 OHM 5% 25W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 27 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|

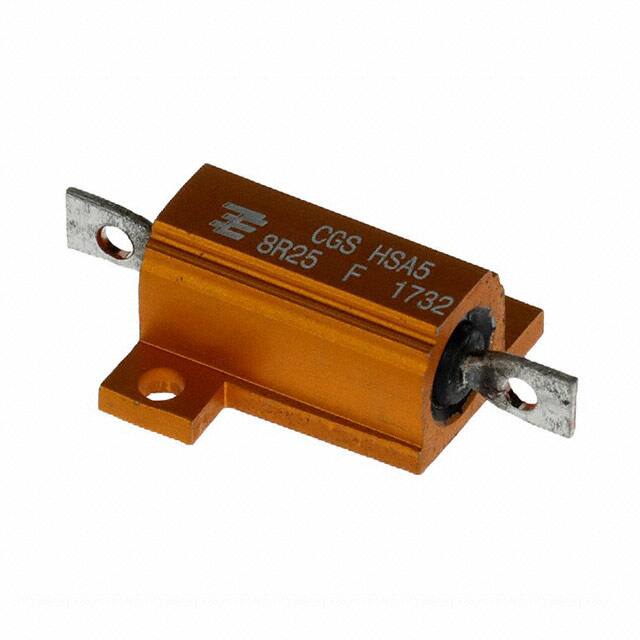

HSA58R25FRES CHAS MNT 8.25 OHM 1% 10W |
25 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 8.25 Ohms | ±1% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
HSA254R7JRES CHAS MNT 4.7 OHM 5% 25W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 4.7 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA2539RJRES CHAS MNT 39 OHM 5% 25W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 39 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
|
HSA25300RJRES CHAS MNT 300 OHM 5% 25W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 300 Ohms | ±5% | 25W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|
THS5022RJRES CHAS MNT 22 OHM 5% 50W |
24 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 22 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS501R0JRES CHAS MNT 1 OHM 5% 50W |
0 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS50220RJRES CHAS MNT 220 OHM 5% 50W |
0 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 220 Ohms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS5018RJRES CHAS MNT 18 OHM 5% 50W |
0 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 18 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSA502R0JRES CHAS MNT 2 OHM 5% 50W |
25 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 2 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSA501R1JRES CHAS MNT 1.1 OHM 5% 50W |
11 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1.1 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
HSA5010KJRES CHAS MNT 10K OHM 5% 50W |
5 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 10 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA5050RJRES CHAS MNT 50 OHM 5% 50W |
1 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 50 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HSA501K0JRES CHAS MNT 1K OHM 5% 50W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
