Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TJT30015RJRES CHAS MNT 15 OHM 5% 300W |
0 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 15 Ohms | ±5% | 300W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 8.278" L x 3.150" W (210.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
|
TJT3001R5JRES CHAS MNT 1.5 OHM 5% 300W |
0 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 1.5 Ohms | ±5% | 300W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 8.278" L x 3.150" W (210.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
LPS0800L3301JBLPS 800 L 3K3 5% BO15 E |
11 |
|
Datasheet |
LPS 800 | Box | Bulk | Active | 3.3 kOhms | ±5% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
CJT150010RJJRES CHAS MNT 10 OHM 5% 1500W |
0 |
|
Datasheet |
CJT, CGS | Rectangular Case | Bulk | Active | 10 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | - | - | Aluminum | Flanges | 19.094" L x 1.969" W (485.00mm x 50.00mm) | 4.213" (107.00mm) | Wire Leads | - | - | - |
|
|
BDS4B250R47KRES CHAS MNT 0.47 OHM 10% 250W |
0 |
|
Datasheet |
BDS, CGS | Box | Bulk | Active | 470 mOhms | ±10% | 250W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 2.638" L x 2.372" W (67.00mm x 60.25mm) | 1.417" (36.00mm) | M4 Threaded | - | - | - |
|
|
BDS2A250150RKRES CHAS MNT 150 OHM 10% 250W |
0 |
|
Datasheet |
BDS, CGS | Box | Bulk | Active | 150 Ohms | ±10% | 250W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 2.638" L x 2.372" W (67.00mm x 60.25mm) | 1.417" (36.00mm) | M4 Threaded | - | - | - |
|
|
BDS2A2506R8KRES CHAS MNT 6.8 OHM 10% 250W |
0 |
|
Datasheet |
BDS, CGS | Box | Bulk | Active | 6.8 Ohms | ±10% | 250W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 2.638" L x 2.372" W (67.00mm x 60.25mm) | 1.417" (36.00mm) | M4 Threaded | - | - | - |
|
|
1-1625999-4Fixed Resistor, Wire Wound, 100W |
29 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2-1625999-0FIXED RESISTOR, WIRE WOUND, 100W |
17 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TJT5003R3JFIXED RESISTOR, WIRE WOUND, 500W |
4 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 3.3 Ohms | ±5% | 500W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 12.992" L x 3.150" W (330.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
|
2176250-4TJT 500W 3R3 5% |
4 |
|
Datasheet |
TJT | Rectangular Case | Bulk | Active | 3.3 Ohms | ±5% | 500W | Wirewound | ±260ppm/°C | -25°C ~ 250°C | - | Aluminum | Screw Holes | 12.992" L x 3.150" W (330.00mm x 80.00mm) | 0.394" (10.00mm) | Wire Leads | - | - | - |
|
HSC200R47JFIXED RESISTOR, WIRE WOUND, 200W |
6 |
|
Datasheet |
HS | Axial, Box | Bulk | Active | 470 mOhms | ±5% | 200W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.543" L x 2.874" W (90.00mm x 73.00mm) | 1.654" (42.00mm) | Solder Lugs | - | - | - |
|
|
1-1879453-3TE 1000W 10R 5% BRACKET |
19 |
|
Datasheet |
TE, CGS | Radial, Tubular | Box | Active | 10 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -25°C ~ 225°C | - | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
HSA2510RJRES CHAS MNT 10 OHM 5% 25W |
24 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 10 Ohms | ±5% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.142" L x 1.102" W (29.00mm x 28.00mm) | 0.591" (15.00mm) | Solder Lugs | - | - | - |
|

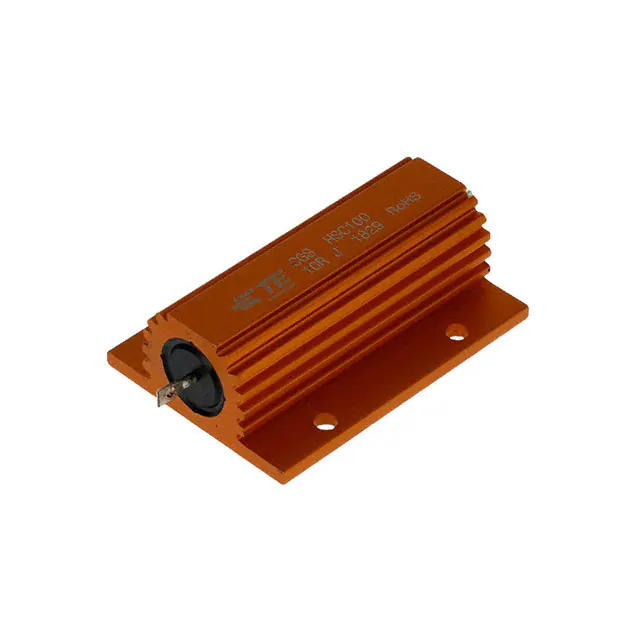

HSC10010RJRES CHAS MNT 10 OHM 5% 100W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 10 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
FVT05006E1K000JERES CHAS MNT 1K OHM 5% 50W |
0 |
|
Datasheet |
FVT | Radial, Tubular | Bulk | Active | 1 kOhms | ±5% | 50W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 4.000" L (14.30mm x 101.60mm) | - | Solder Lugs | - | - | - |
|
|
HSC20012RJRES CHAS MNT 12 OHM 5% 200W |
0 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 12 Ohms | ±5% | 200W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.543" L x 2.874" W (90.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
LPS0300H47R0JBRES CHAS MNT 47 OHM 5% 300W |
0 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 47 Ohms | ±5% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
TE1000B2R2JRES CHAS MNT 2.2 OHM 5% 1000W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 2.2 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1000B4R7JRES CHAS MNT 4.7 OHM 5% 1000W |
0 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 4.7 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
