Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSC100S120RJRES CHAS MNT 120 OHMS 5% 100W |
16 |
|
Datasheet |
HS | Axial, Box | Box | Active | 120 Ohms | ±5% | 100W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC100S82RJRES CHAS MNT 82 OHMS 5% 100W |
16 |
|
Datasheet |
HS | Axial, Box | Box | Active | 82 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC100S22RJRES CHAS MNT 22 OHMS 5% 100W |
16 |
|
Datasheet |
HS | Axial, Box | Box | Active | 22 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC100S680RJRES CHAS MNT 680 OHMS 5% 100W |
16 |
|
Datasheet |
HS | Axial, Box | Box | Active | 680 Ohms | ±5% | 100W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC100S12RJRES CHAS MNT 12 OHMS 5% 100W |
15 |
|
Datasheet |
HS | Axial, Box | Box | Active | 12 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC100S1R0JRES CHAS MNT 1 OHMS 5% 100W |
14 |
|
Datasheet |
HS | Axial, Box | Box | Active | 1 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC100SR47JRES CHAS MNT 470 OHMS 5% 100W |
10 |
|
Datasheet |
HS | Axial, Box | Box | Active | 470 mOhms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
RCH05S47002FS06SFERNICE FIXED RESISTORS |
20 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 470 kOhms | ±1% | 5W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.366" (9.30mm) | Solder Lugs | - | - | - |
|
FVT02506E10R00JERES CHAS MNT 10 OHM 5% 25W |
25 |
|
Datasheet |
FVT | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 25W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | Solder Lugs | - | - | - |
|
|
RCH05S1R000FS06SFERNICE FIXED RESISTORS |
45 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 1 Ohms | ±1% | 5W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|

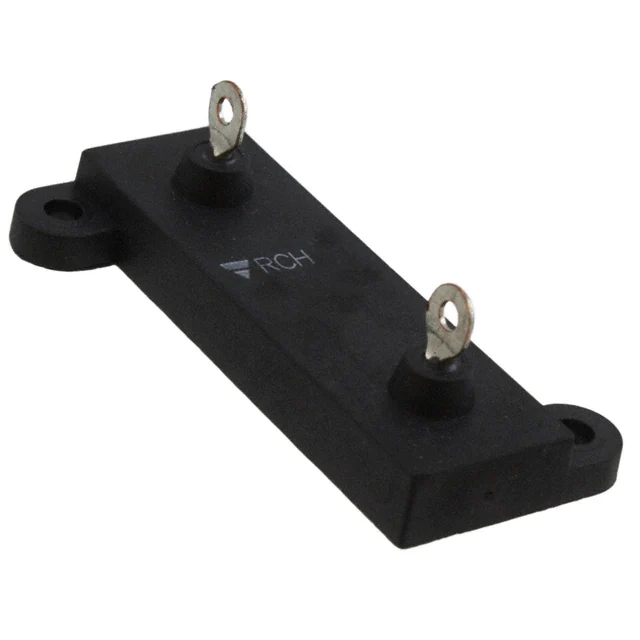

RCH10S10000FS06SFERNICE FIXED RESISTORS |
46 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 1 kOhms | ±1% | 10W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RA1000-20-8X20W (100 OHM) ALN FLANGED RESIST |
100 |
|
Datasheet |
RAxxxx-20-8X | Axial | Tray | Active | 100 Ohms | ±5% | 20W | Thick Film | - | -55°C ~ 150°C | - | Aluminum | Flanges | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.140" (3.56mm) | Tab | - | - | - |
|
|
HSC150S6R8JRES CHAS MNT 6.8 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 6.8 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S150RJRES CHAS MNT 150 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 150 Ohms | ±5% | 150W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S220RJRES CHAS MNT 220 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 220 Ohms | ±5% | 150W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S47RJRES CHAS MNT 47 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 47 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S470RJRES CHAS MNT 470 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 470 Ohms | ±5% | 150W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S2R2JRES CHAS MNT 2.2 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 2.2 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S68RJRES CHAS MNT 68 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 68 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC150S33RJRES CHAS MNT 33 OHMS 5% 150W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 33 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
