Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CJH5000J1K2JCJH 5000W 1K2 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 1.2 kOhms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J1K8JCJH 5000W 1K8 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 1.8 kOhms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J470RJCJH 5000W 470R 5% LEAD |
4 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 470 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J820RJCJH 5000W 820R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 820 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J82RJCJH 5000W 82R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 82 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J220RJCJH 5000W 220R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 220 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J56RJCJH 5000W 56R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 56 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J33RJCJH 5000W 33R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 33 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|

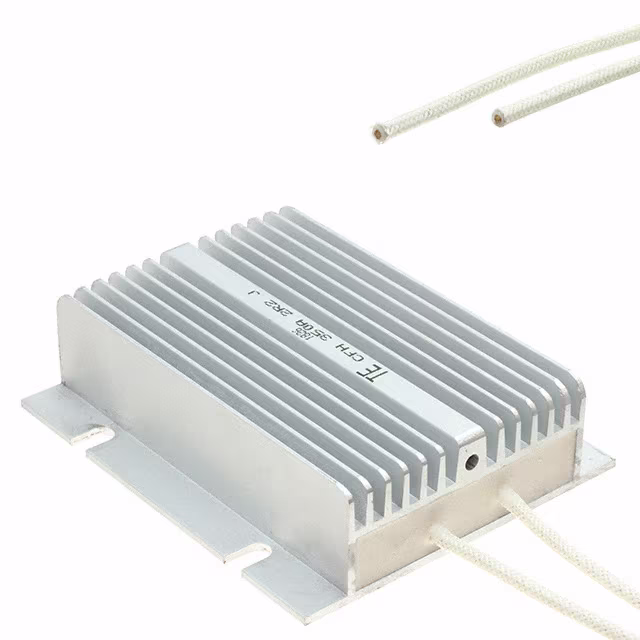

CFH350A2R2JRES CHAS MNT 2.2 OHM 5% 330W |
2 |
|
Datasheet |
CFH | Rectangular, Wire Leads | Bulk | Active | 2.2 Ohms | ±5% | 330W | Wirewound | - | - | Pulse Withstanding, IP65 | Aluminum | Flanges | 4.331" L x 3.740" W (110.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
|
CFH350A3R3JRES CHAS MNT 3.3 OHM 5% 330W |
2 |
|
Datasheet |
CFH | Rectangular, Wire Leads | Bulk | Active | 3.3 Ohms | ±5% | 330W | Wirewound | - | - | Pulse Withstanding, IP65 | Aluminum | Flanges | 4.331" L x 3.740" W (110.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
|
CFH350A10RJRES CHAS MNT 10 OHM 5% 330W |
2 |
|
Datasheet |
CFH | Rectangular, Wire Leads | Bulk | Active | 10 Ohms | ±5% | 330W | Wirewound | - | - | Pulse Withstanding, IP65 | Aluminum | Flanges | 4.331" L x 3.740" W (110.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
|
CFH350A4R7JRES CHAS MNT 4.7 OHM 5% 330W |
8 |
|
Datasheet |
CFH | Rectangular, Wire Leads | Bulk | Active | 4.7 Ohms | ±5% | 330W | Wirewound | - | - | Pulse Withstanding, IP65 | Aluminum | Flanges | 4.331" L x 3.740" W (110.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
CFH350A22RJRES CHAS MNT 22 OHM 5% 330W |
2 |
|
Datasheet |
CFH | Rectangular, Wire Leads | Bulk | Active | 22 Ohms | ±5% | 330W | Wirewound | - | - | Pulse Withstanding, IP65 | Aluminum | Flanges | 4.331" L x 3.740" W (110.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
CFH500A2R2JRES CHAS MNT 2.2 OHM 5% 410W |
6 |
|
Datasheet |
CFH | Rectangular, Wire Leads | Bulk | Active | 2.2 Ohms | ±5% | 410W | Wirewound | - | - | Pulse Withstanding, IP65 | Aluminum | Flanges | 6.299" L x 3.740" W (160.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
|
AHA80AFB-7R5RESISTOR CHASSIS MOUNT 7.5 OHM 1 |
36 |
|
Datasheet |
AHA | Axial, Box | Bulk | Active | 7.5 Ohms | ±1% | 80W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 2.598" L x 1.850" W (66.00mm x 47.00mm) | 1.024" (26.00mm) | M5 Threaded | - | - | - |
|
|
AHB10BFB-12RRESISTOR CHASSIS MOUNT 12 OHM 1% |
36 |
|
Datasheet |
AHB | Axial, Box | Bulk | Active | 12 Ohms | ±1% | 100W | Wirewound | - | -55°C ~ 275°C | - | Aluminum | Flanges | 3.858" L x 1.890" W (98.00mm x 48.00mm) | 1.063" (27.00mm) | M4 Threaded | - | - | - |
|
|
HSC75S100RJRES CHAS MNT 100 OHMS 5% 75W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 100 Ohms | ±5% | 75W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 1.929" L x 1.890" W (49.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC75S33KJRES CHAS MNT 33 OHMS 5% 75W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 33 kOhms | ±5% | 75W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 1.929" L x 1.890" W (49.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
|
TE60B22RJRES CHAS MNT 22 OHM 5% 60W |
6 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 22 Ohms | ±5% | 60W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.102" Dia x 4.016" L (28.00mm x 102.00mm) | - | Solder Lugs | - | - | - |
|
|
HSC100S330RJRES CHAS MNT 330 OHMS 5% 100W |
20 |
|
Datasheet |
HS | Axial, Box | Box | Active | 330 Ohms | ±5% | 100W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | High Voltage | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 0.945" (24.00mm) | Terminal Screw Type | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
