Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCM1-63AX+1:1 CORE & WIRE TRANSFORMER, 10 |
5,010 |
|
Datasheet |
- | 6-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 6GHz | 50 / 50Ohm | 8° | 2.5dB | 9.42dB | Surface Mount |
|
|
TCM2-63WX+1:2 CORE & WIRE TRANSFORMER, 30 |
3,739 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 30MHz ~ 6GHz | 1:2 | 5° | 3.9dB | 10.37dB | Surface Mount |
|
MABA-011118BALUN |
687 |
|
Datasheet |
- | 6-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 10GHz | 1:2 | 12° ±16 | 2.4dB | - | Surface Mount |
|
|
TCM1-83X+1:1 CORE & WIRE TRANSFORMER, 10 |
3,953 |
|
Datasheet |
- | 6-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 8GHz | 50 / 50Ohm | 8° | 3dB | 10.56dB | Surface Mount |
|
NCR2-183+1:2 LTCC TRANSFORMER, 12000 - 18 |
751 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 12GHz ~ 18GHz | 1:2 | 15° | 2.5dB | 9.78dB | Surface Mount |
|
3A412SBALUN 800MHZ-1GHZ 50/12.5 3SMD |
410 |
|
Datasheet |
RJE72 | 3-SMD, No Lead | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 12.5Ohm | 180° ±5° | 0.48dB | 15dB | Surface Mount |
|
JTX-2-10T+1:2 CORE & WIRE TRANSFORMER, 50 |
895 |
|
Datasheet |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Active | 50MHz ~ 1GHz | 1:2 | 3° | 1.0dB | 19.25dB | Surface Mount |
|
|
SCTX2-93-2W+1:2 XFMR, 10 - 9000 MHZ, 50 |
34 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 9GHz | 1:2 | 9° | 5.9dB | - | Surface Mount |
|
|
FTB-1-6*A15+1:1 XFMR, 0.01 - 125 MHZ, 50 |
31 |
|
Datasheet |
- | BNC In-Line Module | Tray | Active | 10kHz ~ 125MHz | 1:1 | - | 3.0dB | - | Chassis Mount |
|
|
MABA-011125-TR05002-20 GHZ 1:2 BALUN |
725 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | 2GHz ~ 20GHz | 1:2 | - | 4.0dB | - | Surface Mount |
|
TP-101-PINBALUN 500KHZ-1.5GHZ 50/50 6FLTPK |
30 |
|
Datasheet |
- | 6-FlatPack | Bulk | Active | 500kHz ~ 1.5GHz | 50 / 50Ohm | - | 0.5dB | - | Surface Mount |
|

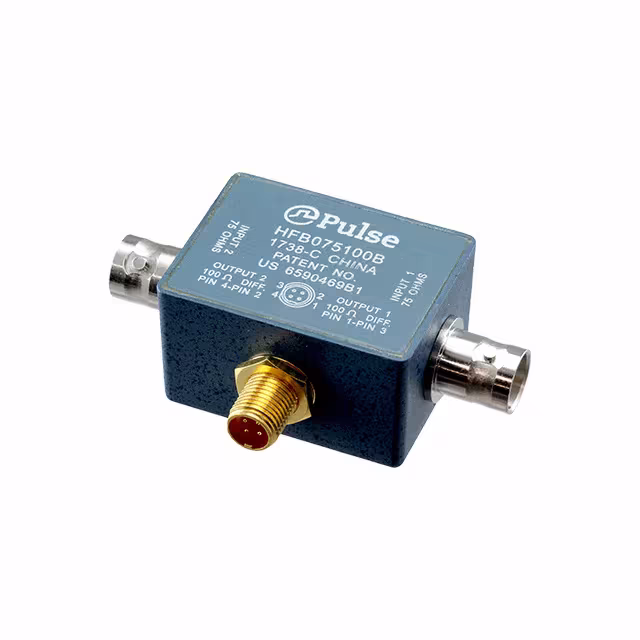

HFB075100BBALUN ADAPT 75 TO 100 OHM B PBC |
59 |
|
Datasheet |
- | Module | Bulk | Active | - | 75 / 100Ohm | - | - | - | Chassis Mount |
.jpg)
|
DEA102500LT-9052A1BALUN 2.3GHZ-2.5GHZ 0402 |
121,303 |
|
Datasheet |
DEA | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 2.5GHz | 50 / -Ohm | 178° | 0.9dB | 15dB | Surface Mount |
|
|
HHM1902B1BALUN 2.4GHZ-2.5GHZ 50/50 0402 |
22,088 |
|
Datasheet |
HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 180° ±10° | 0.8dB | 11.73dB | Surface Mount |
|
|
2000PC15C0040001EBALUN+FILTER FOR SEMTECH LR1110, |
11,244 |
|
Datasheet |
- | 0805 (2012 Metric), 10 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 1:1, 50 / 50Ohm | 180° ±15 | 2.0dB | 10dB | Surface Mount |
|
|
HHM1907B1BALUN 4.9GHZ-5.95GHZ 50/50 0402 |
3,700 |
|
Datasheet |
HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.9GHz ~ 5.95GHz | 50 / 50Ohm | 180° ±10° | 0.8dB | 10dB | Surface Mount |
|
|
2450BL15B0200001EBALUN 2.4GHZ-2.5GHZ 50/200 0805 |
2,903 |
|
Datasheet |
2450 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 200Ohm | 180° ±10° | 1.0dB | 9.5dB | Surface Mount |
|
BALF-NRG-02D3BALUN 2.4GHZ-2.5GHZ 50/50 4UFBGA |
16,629 |
|
Datasheet |
- | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 3° | 1.3dB | 19dB | Surface Mount |
|
|
1720BL15B0200001EBALUN 625MHZ-2.8GHZ 50/200 0805 |
20,972 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 625MHz ~ 2.8GHz | 50 / 200Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
|
|
0900BL18B0100001EBALUN 800MHZ-1GHZ 50/100 1206 |
123,026 |
|
Datasheet |
0900 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | 9.5dB | Surface Mount |
