Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0900BL15C0050001EBALUN 800MHZ-1GHZ 50/50 0805 |
152,551 |
|
Datasheet |
0900 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 50Ohm | 180° ±10° | 1.2dB | 9.5dB | Surface Mount |
|
BD3150N50100AHFBALUN 3.1GHZ-5GHZ 50/100 0404 |
23,059 |
|
Datasheet |
Xinger® | 0404 (1010 Metric) | Tape & Reel (TR) | Active | 3.1GHz ~ 5GHz | 50 / 100Ohm | 3° | 0.9dB | 13dB | Surface Mount |
|
|
BD4859N50100AHFBALUN 4.8GHZ-5.9GHZ 50/100 0404 |
5,022 |
|
Datasheet |
Xinger® | 0404 (1010 Metric) | Tape & Reel (TR) | Active | 4.8GHz ~ 5.9GHz | 50 / 100Ohm | 3° | 0.6dB | 15dB | Surface Mount |
|
|
2450BM14A0002001TBALUN 2.4GHZ-2.5GHZ 0603 |
245,419 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 160° ±15° | 2.0dB | 9.5dB | Surface Mount |
|
|
2450BM15A0015001EBALUN 2.4GHZ-2.5GHZ 0805 |
205,652 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
.jpg)
|
BD1222J50200AHFBALUN 1.2GHZ-2.2GHZ 50/200 0805 |
5,564 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.2GHz ~ 2.2GHz | 50 / 200Ohm | 2° | 0.4dB | 18dB | Surface Mount |
|
|
BD1631J50100AHFBALUN 1.6GHZ-3.1GHZ 50/100 0805 |
473 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.6GHz ~ 3.1GHz | 50 / 100Ohm | 2.3° | 1.0dB | 10dB | Surface Mount |
|
|
0896BM15A0001001EBALUN 863MHZ-928MHZ 0805 |
223,160 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 863MHz ~ 928MHz | 50 / -Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
|
|
0896FB15A0100001EBALUN 863MHZ-928MHZ 50/100 0805 |
60,351 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 863MHz ~ 928MHz | 50 / 100Ohm | 180° ±15° | 1.5dB | 11.7dB | Surface Mount |
|
|
0900PC15J0013001EBALUN 868-928MHZ 0805 10 PC PAD |
75,122 |
|
Datasheet |
- | 0805 (2012 Metric), 10 PC Pad | Tape & Reel (TR) | Active | 868MHz ~ 928MHz | - | 180° ±15° | 2.0dB | 9.5dB | Surface Mount |
|
|
2450FB15L0001001EBALUN 2.4GHZ-2.5GHZ 0805 |
2,431 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / -Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
|

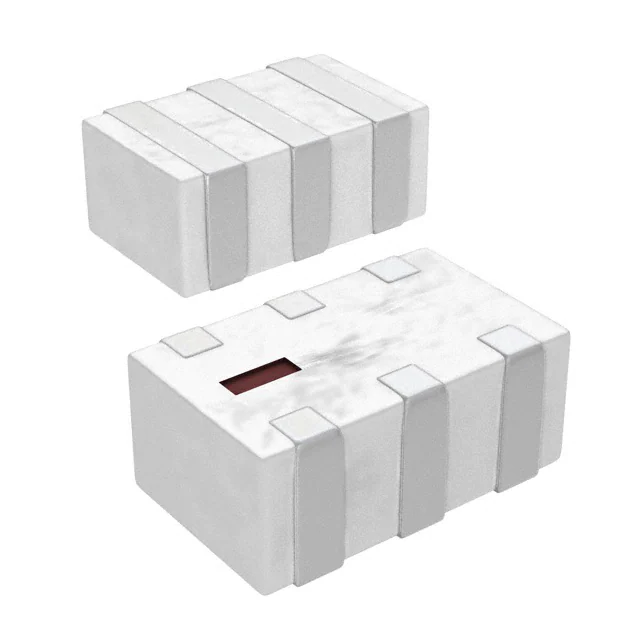

748421245BALUN 2.4GHZ-2.5GHZ 50/100 0805 |
1,490 |
|
Datasheet |
WE-BAL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | - | Surface Mount |
|
|
BD0826J50200AHFBALUN 800MHZ-2.6GHZ 50/200 0805 |
13,646 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 2.6GHz | 50 / 200Ohm | 3° | 1.5dB | 8.5dB | Surface Mount |
|
|
B0310J50100AHFBALUN 300MHZ-1GHZ 50/100 0805 |
29,998 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 300MHz ~ 1GHz | 50 / 100Ohm | 38° | 1.0dB | 8.1dB | Surface Mount |
|
|
B0322J5050AHFBALUN 300MHZ-2.2GHZ 50/50 0805 |
28,081 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 300MHz ~ 2.2GHz | 50 / 50Ohm | 17° | 1.6dB | 12.2dB | Surface Mount |
|
|
B0430J50100AHFBALUN 400MHZ-3000MHZ 50/100 0805 |
11,633 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 400MHz ~ 2.5GHz, 2.5Ghz ~ 3GHz | 50 / 100Ohm | 7° | 4.0dB | 7dB, 8.4dB | Surface Mount |
|
NCS2-33+1:2 LTCC TRANSFORMER, 1500 - 310 |
21,432 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 1.5GHz ~ 3.1GHz | 1:2 | 5° | 1.0dB | 14.72dB | Surface Mount |
|
NCS1.5-232+1:1.5 LTCC TRANSFORMER, 400 - 23 |
3,916 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 400MHz ~ 2.3GHz | 1:1.5 | 8° | 1.6dB | 11.76dB | Surface Mount |
|
|
NCS1-332+1:1 LTCC TRANSFORMER, 700 - 3300 |
3,447 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 700MHz ~ 3.3GHz | 50 / 50Ohm | 8° | 1.8dB | 12.45dB | Surface Mount |
|
|
NCS2-232+1:2 LTCC TRANSFORMER, 900 - 2300 |
3,256 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 900MHz ~ 2.3GHz | 1:2 | 8° | 1.6dB | 11.21dB | Surface Mount |
