Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MABA-011026TRANSFORMER 1:1 FLUX COUPLED |
4,690 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 2MHz ~ 200MHz | 1:1 | 0.5° | 1.0dB | 12dB | Surface Mount |
|

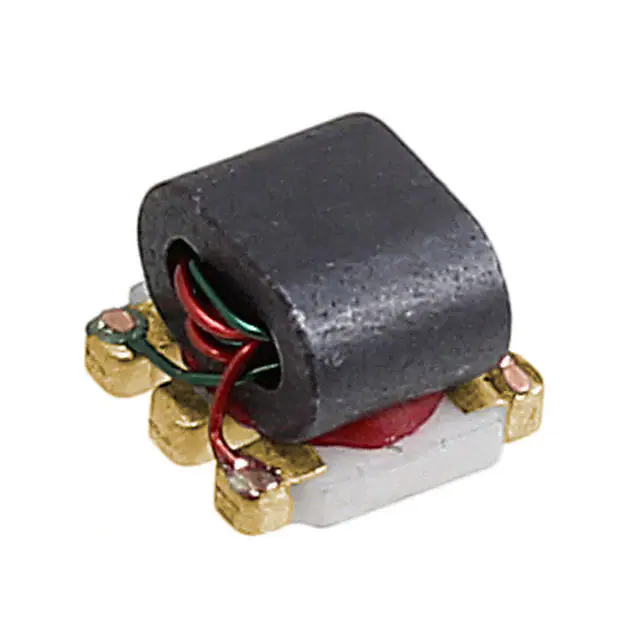

ETC4-1-2TRBALUN 6SMD FLAT LEAD |
4,347 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 2MHz ~ 800MHz | 1:4 | 10° | 3dB | - | Surface Mount |
|
MTX2-73+1:2 MMIC TRANSFORMER, 2000 - 700 |
1,072 |
|
Datasheet |
- | 12-VQFN Exposed Pad | Tape & Reel (TR) | Active | 2GHz ~ 7GHz | 1:2 | 4° | 2.3dB | 6.39dB | Surface Mount |
|
CX2041NLTBALUN 50KHZ-450MHZ 75/75 5SMD |
15,496 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 50kHz ~ 450MHz | 1:1 | - | 0.8dB | -25dB | Surface Mount |
|
TC1-1-13MX+1:1 CORE & WIRE TRANSFORMER, 4.5 |
5,425 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 50 / 50Ohm | 3° | 3dB | 6.79dB | Surface Mount |
|
TCN1-23+1:1 LTCC TRANSFORMER, 1300 - 230 |
2,818 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | 1.3GHz ~ 2.3GHz | 50 / 50Ohm | 5° | 0.7dB | 15.33dB | Surface Mount |
|
TC1-1-13MA+RF TRANSFORMER, 4.5 - 3000 MHZ, |
1,049 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 50 / 50Ohm | 3° | 3dB | 6.79dB | Surface Mount |
|
ETC1-1-13TRBALUN 4.5MHZ-3GHZ 1:1 5SMD |
18,165 |
|
Datasheet |
- | 5-SMD | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 1:1 | - | 3.5dB | - | Surface Mount |
|
MABA-007159-000000BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT |
16,567 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 1:1 | - | 3.5dB | - | Surface Mount |
|
MABAES0061BALUN 2MHZ-800MHZ 1:4 6SMD FLAT |
11,008 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 2MHz ~ 800MHz | 1:4 | - | 3.0dB | - | Surface Mount |
|
MABAES0060BALUN 300KHZ-200MHZ 1:1 6SMD |
10,458 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 300kHz ~ 200MHz | 1:1 | - | 1.5dB | 10dB | Surface Mount |
|
MABACT0059BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT |
7,177 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 1:1 | - | 8.4dB | 15dB | Surface Mount |
|
CX2041ANLTBALUN 50KHZ-450MHZ 75/75 5SMD |
35,292 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 50kHz ~ 450MHz | 1:1 | - | 3.4dB | 8dB | Surface Mount |
|
|
TC1-1-43X+1:1 CORE & WIRE TRANSFORMER, 650 |
5,192 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 650MHz ~ 4GHz | 50 / 50Ohm | 4° | 2.0dB | 7.51dB | Surface Mount |
|

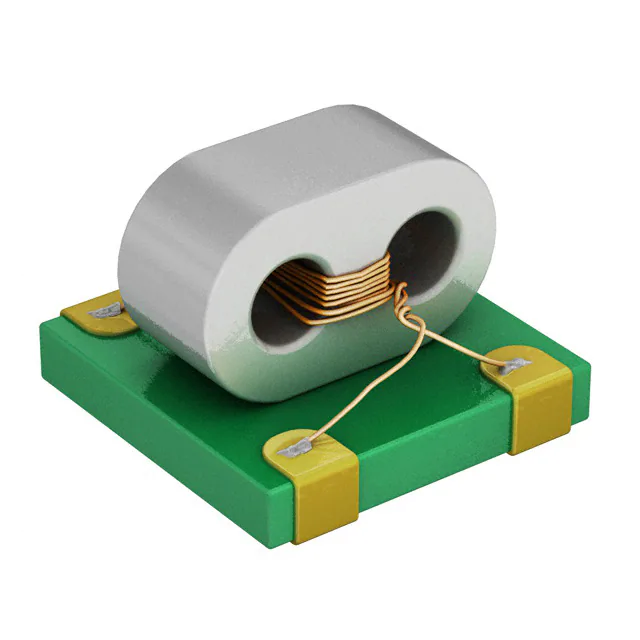

CX2041NLBALUN 50KHZ-450MHZ 75/75 5SMD |
312 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | 50kHz ~ 450MHz | 1:1 | - | 0.8dB | -25dB | Surface Mount |
|
TCM4-19+1:4 CORE & WIRE TRANSFORMER, 10 |
1,966 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 10MHz ~ 1.9GHz | 1:4 | 6° | 3dB | 7.01dB | Surface Mount |
|
TC1-1-13MG2+1:1 CORE & WIRE TRANSFORMER, 4.5 |
2,749 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 4.5MHz ~ 3GHz | 50 / 50Ohm | 3° | 3dB | 6.79dB | Surface Mount |
|
MABA-010247-2R1250E-SERIES BALUN 1:2 1-1600MHZ |
3,522 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 1MHz ~ 1.6GHz | 1:2 | 5° | 4dB | 10dB | Surface Mount |
|
|
TC1-1T+1:1 CORE & WIRE TRANSFORMER, 0.4 |
17,504 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 400kHz ~ 500MHz | 50 / 50Ohm | 5° | 3dB | 6.9dB | Surface Mount |
|
|
TC4-1TX+1:4 CORE & WIRE TRANSFORMER, 0.5 |
1,863 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 500kHz ~ 300MHz | 1:4 | - | 3dB | 16.81dB | Surface Mount |
