Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX2-4-RINDUCT ARRAY 2 COIL 1.76UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.76 µH | 7.06 µH | ±20% | 4.9 A | 2.45 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX8-4-RINDUCT ARRAY 2 COIL 8.28UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.28 µH | 33.12 µH | ±20% | 3.5 A | 1.75 A | - | - | 18mOhm Max | 72mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-4P-RINDUCT ARRAY 2 COIL 200.11UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.11 µH | 800.44 µH | ±20% | 600 mA | 300 mA | - | - | 810mOhm Max | 3.24Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
LCP5-2.04-47INDUCT ARRAY 2 COIL 47UH SMD |
0 |
|
Datasheet |
LCP | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±15% | 2.04 A | 1.02 A | - | - | 72mOhm | 288mOhm | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.358" (9.10mm) |
|
|
CTX200-3P-RINDUCT ARRAY 2 COIL 200.1UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.1 µH | 800.38 µH | ±20% | 600 mA | 300 mA | - | - | 731mOhm Max | 2.925Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX20-1INDUCT ARRAY 2 COIL 19.6UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 19.6 µH | 78.4 µH | ±20% | 1 A | 500 mA | - | - | 146mOhm Max | 583mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

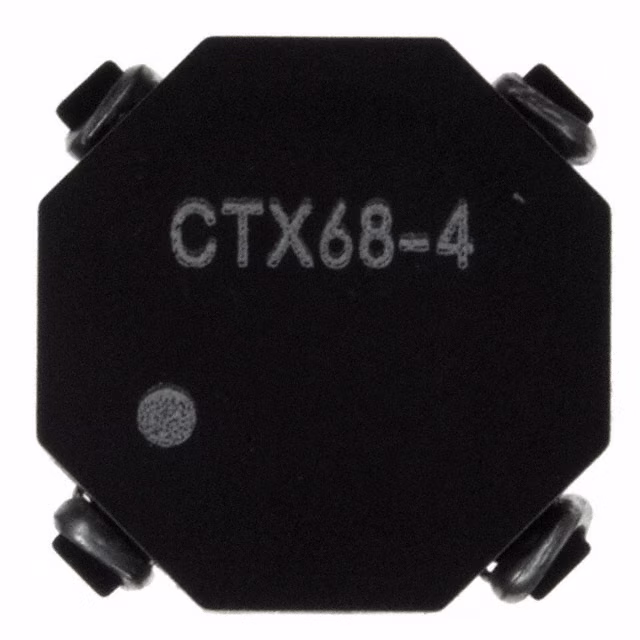

CTX68-4-RINDUCT ARRAY 2 COIL 67.08UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.08 µH | 268.32 µH | ±20% | 1.2 A | 600 mA | - | - | 157mOhm Max | 630mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX100-1INDUCT ARRAY 2 COIL 99.23UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
SDQ25-1R0-RINDUCT ARRAY 2 COIL 970NH SMD |
0 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 970 nH | 3.87 µH | ±20% | 3.15 A | 1.58 A | 4.09 A | 2.05 A | 25.2mOhm | 100.7mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
T60405A6166X0026166X002 |
0 |
|
- |
- | Radial, Vertical, 8 Leads | Box | Active | 2 | 12 µH | 48 µH | - | 15 A | 7.5 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.496" L x 0.945" W (38.00mm x 24.00mm) | 1.626" (41.30mm) |
|
|
T60405A6166X0046166X004 |
0 |
|
- |
- | Radial, Vertical, 4 Leads | Box | Active | 2 | 41 µH | 165 µH | - | 8 A | 4 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.866" W (36.00mm x 22.00mm) | 1.587" (40.30mm) |
|
|
CTX5-2INDUCT ARRAY 2 COIL 4.7UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 4.7 µH | 18.8 µH | ±20% | 3 A | 1.5 A | - | - | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX300-3P-RINDUCT ARRAY 2 COIL 298.39UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.39 µH | 1.2 mH | ±20% | 500 mA | 250 mA | - | - | 926mOhm Max | 3.702Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX5-4INDUCT ARRAY 2 COIL 4.9UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 4.9 µH | 19.6 µH | ±20% | 4.4 A | 2.2 A | - | - | 14mOhm Max | 56mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
T60405A6166X0076166X007 |
0 |
|
- |
- | Radial, Vertical, 4 Leads | Box | Active | 2 | 180 µH | 720 µH | - | 4 A | 2 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.827" W (36.00mm x 21.00mm) | 1.587" (40.30mm) |
|
|
T60405A6166X0056166X005 |
0 |
|
- |
- | Radial, Vertical, 4 Leads | Box | Active | 2 | 75 µH | 300 µH | - | 6 A | 3 A | - | - | - | - | Unshielded | - | -40°C ~ 60°C | Through Hole | 1.417" L x 0.827" W (36.00mm x 21.00mm) | 1.587" (40.30mm) |
|
7448990010INDUCT ARRAY 2 COIL 1UH SMD |
0 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±20% | 17 A | - | 43.5 A | - | 5.6mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990015INDUCT ARRAY 2 COIL 1.5UH SMD |
0 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | - | ±20% | 12.5 A | - | 34 A | - | 9.4mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990022INDUCT ARRAY 2 COIL 2.2UH SMD |
0 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | - | ±20% | 11.5 A | - | 29.5 A | - | 12.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990033INDUCT ARRAY 2 COIL 3.3UH SMD |
0 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±20% | 7.5 A | - | 28.2 A | - | 26mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
