Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX0.68-4A-RINDUCT ARRAY 2 COIL 744NH SMD |
0 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 744 nH | 2.98 µH | ±25% | 10.6 A | 5.28 A | 15 A | 7.5 A | 4mOhm Max | 15.8mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX1-4A-RINDUCT ARRAY 2 COIL 1.39UH SMD |
0 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.39 µH | 5.57 µH | ±25% | 9.23 A | 4.62 A | 11.25 A | 5.63 A | 5.2mOhm Max | 20.7mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX150-2-RINDUCT ARRAY 2 COIL 147.39UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 147.39 µH | 589.57 µH | ±20% | 430 mA | 220 mA | - | - | 560mOhm Max | 2.241Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX200-2-RINDUCT ARRAY 2 COIL 198.58UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 198.58 µH | 794.3 µH | ±20% | 390 mA | 200 mA | - | - | 796mOhm Max | 3.184Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX25-2-RINDUCT ARRAY 2 COIL 24.86UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.86 µH | 99.45 µH | ±20% | 1 A | 500 mA | - | - | 117mOhm Max | 466mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX68-2-RINDUCT ARRAY 2 COIL 67.87UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.87 µH | 271.47 µH | ±20% | 780 mA | 390 mA | - | - | 303mOhm Max | 1.214Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX200-4A-RINDUCT ARRAY 2 COIL 200.4UH SMD |
0 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.4 µH | 801.8 µH | ±25% | 920 mA | 460 mA | 940 mA | 470 mA | 521mOhm Max | 2.085Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

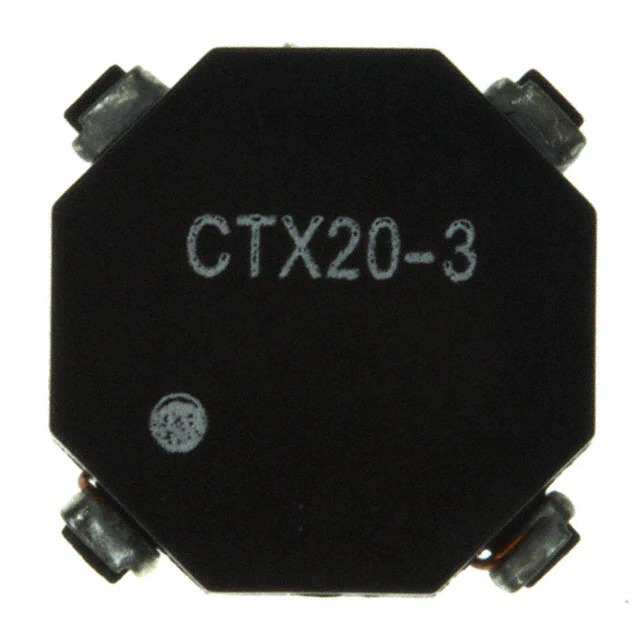

CTX20-3-RINDUCT ARRAY 2 COIL 20.18UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.18 µH | 80.74 µH | ±20% | 1.5 A | 750 mA | - | - | 78mOhm Max | 312mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX150-3P-RINDUCT ARRAY 2 COIL 149.85UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 149.85 µH | 599.4 µH | ±20% | 640 mA | 320 mA | - | - | 621mOhm Max | 2.483Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX150-3-RINDUCT ARRAY 2 COIL 149.78UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 149.78 µH | 599.14 µH | ±20% | 380 mA | 190 mA | - | - | 430mOhm Max | 1.718Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX15-3-RINDUCT ARRAY 2 COIL 15UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 2 A | 1 A | - | - | 43mOhm Max | 172mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX25-3-RINDUCT ARRAY 2 COIL 24.58UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.58 µH | 98.3 µH | ±20% | 980 mA | 490 mA | - | - | 86mOhm Max | 346mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX300-3-RINDUCT ARRAY 2 COIL 301.06UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 301.06 µH | 1.2 mH | ±20% | 400 mA | 200 mA | - | - | 951mOhm Max | 3.083Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX50-3-RINDUCT ARRAY 2 COIL 50.78UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.78 µH | 203.14 µH | ±20% | 940 mA | 470 mA | - | - | 239mOhm Max | 956mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX68-3-RINDUCT ARRAY 2 COIL 67.42UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.42 µH | 269.66 µH | ±20% | 800 mA | 400 mA | - | - | 277mOhm Max | 1.109Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|

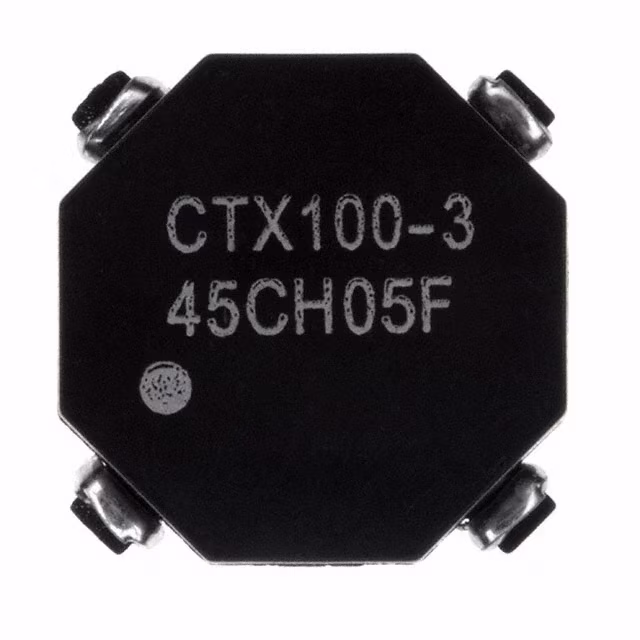

CTX100-3-RINDUCT ARRAY 2 COIL 101.4UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 700 mA | 350 mA | - | - | 345mOhm Max | 1.381Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX25-2PINDUCT ARRAY 2 COIL 24.79UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 24.79 µH | 99.14 µH | ±20% | 1.4 A | 700 mA | - | - | 109mOhm Max | 436mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX0.47-4-RINDUCT ARRAY 2 COIL 440NH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 440 nH | 1.76 µH | ±20% | 7 A | 3.5 A | - | - | 4mOhm Max | 16mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX0.68-4-RINDUCT ARRAY 2 COIL 780NH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 780 nH | 3.14 µH | ±20% | 6 A | 3 A | - | - | 5mOhm Max | 20mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX1-4-RINDUCT ARRAY 2 COIL 1.23UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.23 µH | 4.9 µH | ±20% | 5 A | 2.5 A | - | - | 6mOhm Max | 24mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
Arrays, Signal Transformers Electronic Components
Explore Arrays, Signal Transformers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
