Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX150-1P-RINDUCT ARRAY 2 COIL 150.72UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 150.72 µH | 602.87 µH | ±20% | 440 mA | 220 mA | - | - | 844mOhm Max | 3.376Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX10-2PINDUCT ARRAY 2 COIL 9.83UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 9.83 µH | 39.3 µH | ±20% | 2.1 A | 1.05 A | - | - | 45mOhm Max | 179mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX10-4PINDUCT ARRAY 2 COIL 9.88UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 9.88 µH | 39.53 µH | ±20% | 2.5 A | 1.25 A | - | - | 47mOhm Max | 187mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX20-4PINDUCT ARRAY 2 COIL 20.62UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 20.62 µH | 82.47 µH | ±20% | 1.9 A | 950 mA | - | - | 84mOhm Max | 337mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX50-4PINDUCT ARRAY 2 COIL 48.8UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 48.8 µH | 195.2 µH | ±20% | 1.2 A | 600 mA | - | - | 201mOhm Max | 805mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX1-4P-RINDUCT ARRAY 2 COIL 1.1UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.1 µH | 4.39 µH | ±20% | 5.9 A | 2.95 A | - | - | 8mOhm Max | 33mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX15-4P-RINDUCT ARRAY 2 COIL 14.76UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.76 µH | 59.05 µH | ±20% | 2.3 A | 1.15 A | - | - | 57mOhm Max | 228mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

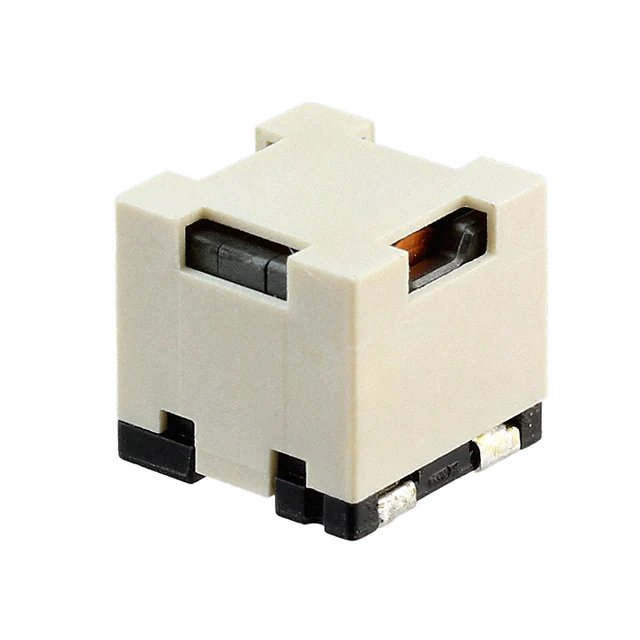

CDEPI106NP-220-SINDUCT ARRAY 2 COIL 11UH SMD |
0 |
|
Datasheet |
CDEPI106 | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | - | 16 A | 2 A | 4.4 A | 2.2 A | 11.5mOhm | 46mOhm | Shielded | - | -40°C ~ 105°C | Surface Mount | 0.433" L x 0.433" W (11.00mm x 11.00mm) | 0.413" (10.50mm) |
|
P0180NLTINDUCT ARRAY 2 COIL 32.8UH SMD |
0 |
|
Datasheet |
Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.8 µH | 131 µH | ±10% | 2.2 A | 1.07 A | - | - | 106mOhm Max | 404mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0174NLTINDUCT ARRAY 2 COIL 2.2UH SMD |
0 |
|
Datasheet |
Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.75 µH | ±10% | 8.3 A | 4.16 A | - | - | 7.6mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0181NLTINDUCT ARRAY 2 COIL 47.6UH SMD |
0 |
|
Datasheet |
Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 47.6 µH | 190.3 µH | ±10% | 1.8 A | 890 mA | - | - | 151mOhm Max | 604mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0182NLTINDUCT ARRAY 2 COIL 67.5UH SMD |
0 |
|
Datasheet |
Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.5 µH | 270.2 µH | ±10% | 1.5 A | 740 mA | - | - | 224mOhm Max | 888mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
CTX25-4P-RINDUCT ARRAY 2 COIL 25.65UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.65 µH | 102.6 µH | ±20% | 1.6 A | 800 mA | - | - | 115mOhm Max | 461mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX33-4P-RINDUCT ARRAY 2 COIL 33.21UH SMD |
0 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 33.21 µH | 132.86 µH | ±20% | 1.3 A | 650 mA | - | - | 166mOhm Max | 662mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX0.47-1-RINDUCT ARRAY 2 COIL 400NH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 400 nH | 1.6 µH | ±20% | 5.5 A | 2.75 A | - | - | 5mOhm Max | 20mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX0.68-1-RINDUCT ARRAY 2 COIL 630NH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 630 nH | 2.5 µH | ±20% | 4.5 A | 2.25 A | - | - | 6mOhm Max | 24mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX1-1-RINDUCT ARRAY 2 COIL 900NH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 900 nH | 3.6 µH | ±20% | 4.2 A | 2.1 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX2-1-RINDUCT ARRAY 2 COIL 2.03UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.03 µH | 8.1 µH | ±20% | 4.1 A | 2.05 A | - | - | 10mOhm Max | 40mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

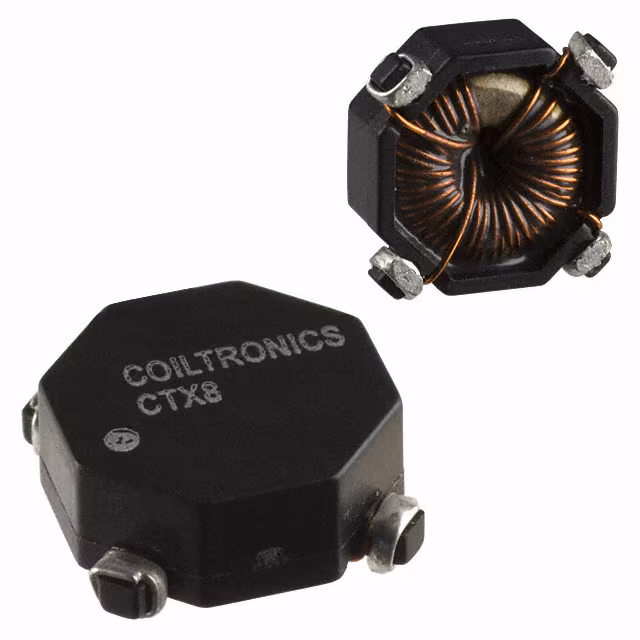

CTX8-1-RINDUCT ARRAY 2 COIL 8.1UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.1 µH | 32.4 µH | ±20% | 2 A | 1 A | - | - | 39mOhm Max | 157mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX200-1-RINDUCT ARRAY 2 COIL 202.5UH SMD |
0 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 202.5 µH | 810 µH | ±20% | 370 mA | 190 mA | - | - | 1.142Ohm Max | 4.567Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
