Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744870003INDUCT ARRAY 2 COIL 3.3UH SMD |
406 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.65 µH | 6.6 µH | ±30% | 7.1 A | 3.55 A | 12 A | 6 A | 21mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873001INDUCT ARRAY 2 COIL 1.5UH SMD |
265 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 0.75 µH | 3 µH | ±30% | 6.25 A | 3.125 A | 18 A | 9 A | 15mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477C6103M603INDUCT ARRAY 2 COIL 10UH SMD |
484 |
|
Datasheet |
B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | - | 5.65 A | 9.6 A | 4.8 A | 13.5mOhm Max | 54mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6223M603INDUCT ARRAY 2 COIL 22UH SMD |
283 |
|
Datasheet |
B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | - | 3.85 A | 6.4 A | 3.2 A | 24mOhm Max | 96mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6472M603INDUCT ARRAY 2 COIL 4.7UH SMD |
251 |
|
Datasheet |
B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | - | 7.05 A | 15.3 A | 7.65 A | 9mOhm Max | 36mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6153M603INDUCT ARRAY 2 COIL 15UH SMD |
465 |
|
Datasheet |
B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | - | 4.92 A | 8.3 A | 4.15 A | 17.5mOhm Max | 70mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6333M603INDUCT ARRAY 2 COIL 33UH SMD |
315 |
|
Datasheet |
B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | - | 3.3 A | 5.2 A | 2.6 A | 34.5mOhm Max | 138mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
P0396NLINDUCT ARRAY 2 COIL 3.5UH SMD |
945 |
|
Datasheet |
Tomcat | Nonstandard | Tube | Active | 2 | 3.5 µH | 14 µH | ±20% | 11.2 A | 5.6 A | - | - | 6.54mOhm | 26.2mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
P0403NLINDUCT ARRAY 2 COIL 50.5UH SMD |
115 |
|
Datasheet |
Tomcat | Nonstandard | Tube | Active | 2 | 50.5 µH | 202.2 µH | ±20% | 3 A | 1.5 A | - | - | 73.89mOhm | 295.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
CTX8-1P-RINDUCT ARRAY 2 COIL 8.08UH SMD |
740 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.08 µH | 32.33 µH | ±20% | 1.8 A | 900 mA | - | - | 52mOhm Max | 207mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448991470SMT MOLDED COUPLED INDUCTOR SIZE |
1,446 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 1.5 A | - | 4.4 A | - | 340mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991047SMT MOLDED COUPLED INDUCTOR SIZE |
769 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 6.2 A | - | 13.8 A | - | 29mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991033SMT MOLDED COUPLED INDUCTOR SIZE |
755 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±20% | 6.8 A | - | 14.3 A | - | 23.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991150SMT MOLDED COUPLED INDUCTOR SIZE |
651 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 3.25 A | - | 7.8 A | - | 95mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991010SMT MOLDED COUPLED INDUCTOR SIZE |
350 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±20% | 12 A | - | 30.2 A | - | 7.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
P0598NLINDUCT ARRAY 2 COIL 3.9UH SMD |
368 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | 2 | 3.9 µH | 15.6 µH | ±15% | 34 A | 17 A | - | - | 1.6mOhm Max | 6.4mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
CTX20-1P-RINDUCT ARRAY 2 COIL 20.46UH SMD |
214 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.46 µH | 81.83 µH | ±20% | 1 A | 500 mA | - | - | 158mOhm Max | 634mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

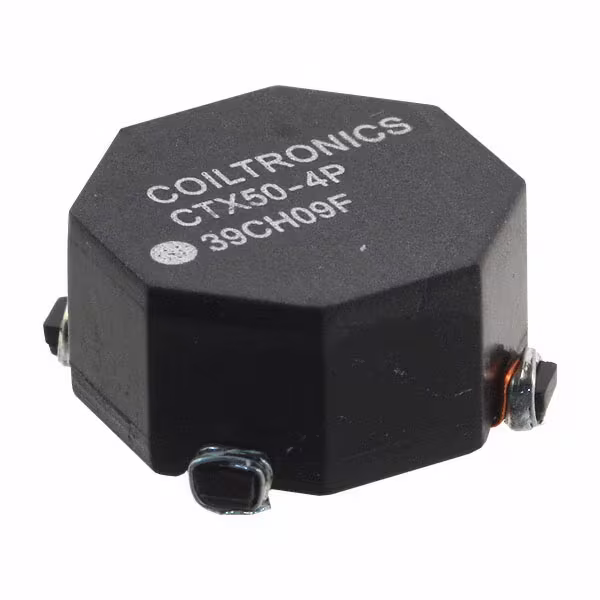

CTX50-4P-RINDUCT ARRAY 2 COIL 48.8UH SMD |
149 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 48.8 µH | 195.2 µH | ±20% | 1.2 A | 600 mA | - | - | 201mOhm Max | 805mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
7448990470INDUCT ARRAY 2 COIL 47UH SMD |
246 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 2.3 A | - | 6 A | - | 240mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990150INDUCT ARRAY 2 COIL 15UH SMD |
140 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 3.9 A | - | 9.5 A | - | 87mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
