Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL-12-24INDUCT ARRAY 2COIL 1.2MH CHA MNT |
29 |
|
Datasheet |
CL | Nonstandard | Box | Active | 2 | 1.2 mH | 4.8 mH | - | 24 A | 12 A | - | - | 13mOhm | 52mOhm | Unshielded | - | - | Chassis Mount | 3.374" L x 3.563" W (85.70mm x 90.50mm) | 2.811" (71.40mm) |
|

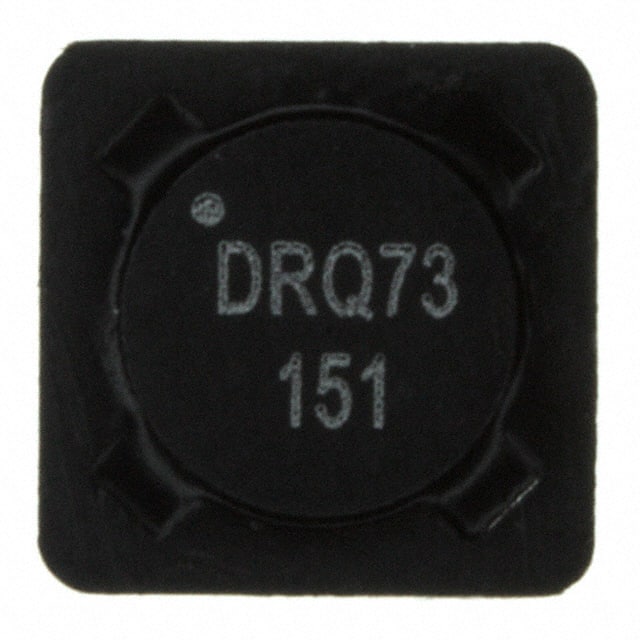

DRQ73-151-RINDUCT ARRAY 2 COIL 150.9UH SMD |
1,350 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 150.9 µH | 603.6 µH | ±20% | 580 mA | 289 mA | 650 mA | 320 mA | 851mOhm | 3.41Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
PF0552.334NLINDUCT ARRAY 2 COIL 340UH SMD |
1,490 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 340 µH | 1.3 mH | ±20% | 1.2 A | 610 mA | 1.2 A | 620 mA | 470mOhm Max | 1.9Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.472NLINDUCT ARRAY 2 COIL 5.3UH SMD |
1,417 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 5.3 µH | 21 µH | ±20% | 8.5 A | 4.3 A | 9.8 A | 4.9 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.103NLINDUCT ARRAY 2 COIL 9.7UH SMD |
1,485 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 9.7 µH | 39 µH | ±20% | 6 A | 3 A | 7.2 A | 3.6 A | 19mOhm Max | 73mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRF1260-R47YINDUCT ARRAY 2 COIL 470NH SMD |
750 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 nH | 1.88 µH | ±30% | 17.6 A | 8.8 A | 33 A | 16.5 A | 5.3mOhm Max | 21.2mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1260A-102MINDUCT ARRAY 2 COIL 1MH SMD |
1,333 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 mH | 4 mH | ±20% | 570 mA | 283 mA | 700 mA | 350 mA | 1.854Ohm Max | 6.782Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-101MINDUCT ARRAY 2 COIL 100UH SMD |
1,280 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±20% | 1.78 A | 892 mA | 2.2 A | 1.1 A | 171mOhm Max | 656mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-680MINDUCT ARRAY 2 COIL 68UH SMD |
1,165 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 117mOhm Max | 444mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1280A-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
912 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 12.5 A | 6.23 A | 25.5 A | 12.7 A | 9.2mOhm Max | 33.8mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ74-8R2-RINDUCT ARRAY 2 COIL 8.566UH SMD |
637 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.566 µH | 34.26 µH | ±20% | 2.53 A | 1.27 A | 3.4 A | 1.7 A | 44.1mOhm | 177mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
PA3143AHLINDUCT ARRAY 3 COIL SMD |
830 |
|
Datasheet |
PA314xAHL | 6-SMD, No Lead | Tray | Active | 3 | - | 150 nH | ±15% | - | 40 A | - | - | - | 0.3mOhm Max | Shielded | - | -40°C ~ 130°C | Surface Mount | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.315" (8.00mm) |
|
|
PF0552.472NLTINDUCT ARRAY 2 COIL 5.3UH SMD |
1,984 |
|
Datasheet |
PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.3 µH | 21 µH | ±20% | 8.5 A | 4.3 A | 9.8 A | 4.9 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DRQ125-1R5-RINDUCT ARRAY 2 COIL 1.478UH SMD |
1,050 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.478 µH | 5.912 µH | ±20% | 13.8 A | 6.89 A | 18.3 A | 9.15 A | 2.9mOhm | 11.4mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0553.333NLTINDUCT ARRAY 2 COIL 34UH SMD |
800 |
|
Datasheet |
PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 135 µH | ±20% | 3.2 A | 1.6 A | 6.2 A | 3.1 A | 59mOhm Max | 240mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.472NLTINDUCT ARRAY 2 COIL 4.8UH SMD |
790 |
|
Datasheet |
PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.8 µH | 19 µH | ±20% | 8.1 A | 4.1 A | 16 A | 8.2 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
76889440100INDUCTOR ARRAY 2 COIL 10UH SMD |
245 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.6 A | - | 3 A | - | 200mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
744889030100INDUCT ARRAY 2 COIL 10UH SMD |
2,000 |
|
Datasheet |
WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 0.95 A | - | 1.5 A | - | 1.1Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
7448841033INDUCT ARRAY 2 COIL 3.3UH SMD |
2,000 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±30% | 1.9 A | - | 2.6 A | - | 120mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841010INDUCT ARRAY 2 COIL 1UH SMD |
1,740 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±30% | 2.9 A | - | 5 A | - | 45mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
