Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

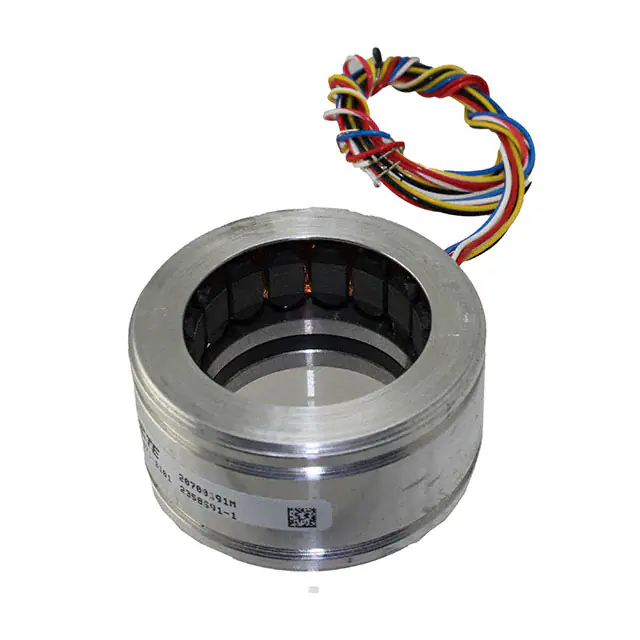

V23401-T1071-B101RESOLVER |
0 |
|
Datasheet |
Ring, Wire Leads | - | Box | Active | - | Angle | - | 0° ~ 20° | - | - | - | - | - | - | - | - | Custom | - | - | - | - | - |
|

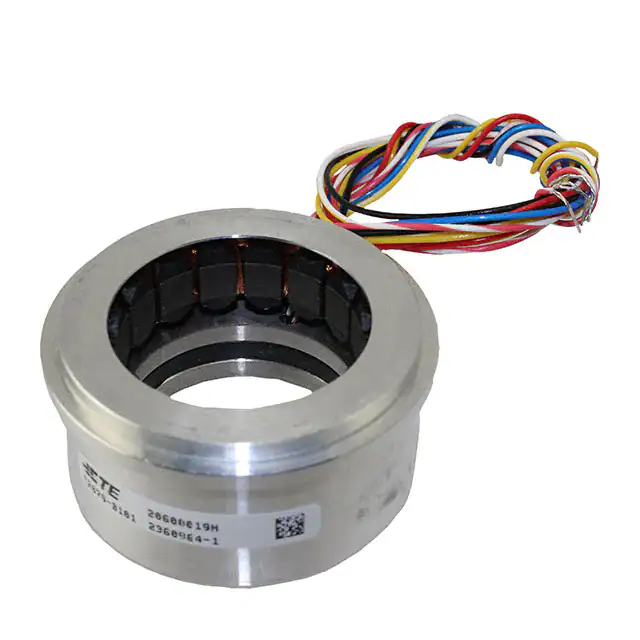

V23401-T2079-B101RESOLVER |
0 |
|
Datasheet |
Ring, Wire Leads | - | Box | Active | - | Angle | - | 0° ~ 20° | - | - | - | - | - | - | - | - | Custom | - | - | - | - | - |
|
V23401-T2715-B101RESOLVER |
1 |
|
Datasheet |
Ring, Wire Leads | - | Box | Active | - | Angle | - | 0° ~ 20° | - | - | - | - | - | - | - | - | Custom | - | - | - | - | - |
|
V23401-T2074-B101RESOLVER |
0 |
|
Datasheet |
Ring, Wire Leads | - | Box | Active | - | Angle | - | 0° ~ 20° | - | - | - | - | - | - | - | - | Custom | - | - | - | - | - |
|

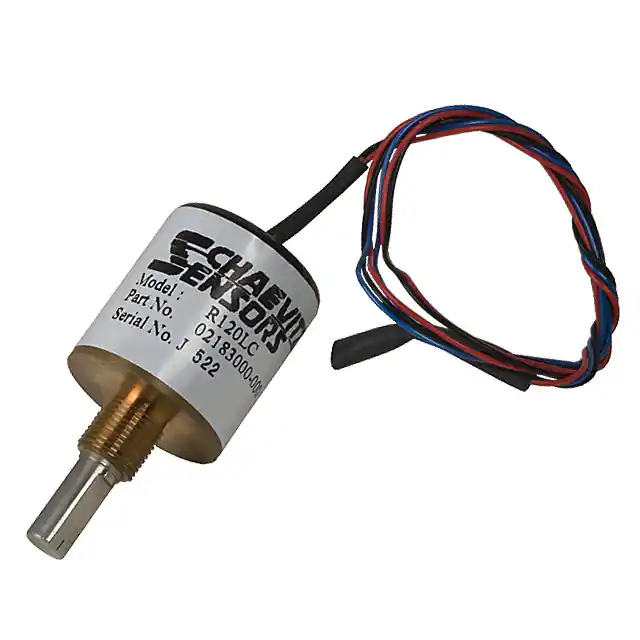

02183000-000SENSOR ROTARY 120DEG WIRE LEADS |
0 |
|
Datasheet |
Cylinder | R120LC | Bulk | Active | - | Rotary Position | Inductive | 0° ~ 120°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Wire Leads | -40°C ~ 85°C | - | - | - |
|
34THEB1ATA2S22SENSOR ROTARY 3600DEG SLD TURRET |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±1% | - | - | 5V | Panel Mount | Solder Turret | -40°C ~ 85°C | - | - | - |
|
LZE-13-2.5-A-00-10-SLINEAR POSITION SENSOR 1/10" RAN |
1 |
|
Datasheet |
Cylinder, Wire Leads | LZE-13 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 2.54mm (0 ~ 0.10") | 0V ~ 10V | - | Round Shaft | ±0.15% | - | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 105°C | - | - | - |
|
|
34THES1BTA2S22SENSOR ROTARY 3600DEG SLD TURRET |
0 |
|
Datasheet |
Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Slotted Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Turret | -40°C ~ 85°C | - | - | - |
|
|
LZE-13-150-A-00-10-SLINEAR POSITION SENSOR 6" RANGE, |
1 |
|
Datasheet |
Cylinder, Wire Leads | LZE-13 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 150.00mm (0 ~ 5.91") | 0V ~ 10V | - | Round Shaft | ±0.15% | - | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 105°C | - | - | - |
|
LRI-19-100-R-00-20-ASENSOR LINEAR 101.6MM CABLE |
0 |
|
Datasheet |
Cylinder | LR-19 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 101.60mm (0 ~ 4.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
LRSE-18-025-A-00-10-ASENSOR LINEAR 25.4MM 1M CABLE |
0 |
|
Datasheet |
Cylinder | LRS-18 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 25.40mm (0 ~ 1.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
|
LRI-19-150-R-00-20-ASENSOR LINEAR 152.4MM CABLE |
0 |
|
Datasheet |
Cylinder | LR-19 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 152.40mm (0 ~ 6.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
LRI-27-050-R-00-20-ASENSOR LINEAR 50.8MM CABLE |
1 |
|
Datasheet |
Cylinder | LR-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 50.80mm (0 ~ 2.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
|
LRE-27-075-R-00-10-ASENSOR LINEAR 76.2MM CABLE |
1 |
|
- |
Cylinder | LR-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 76.20mm (0 ~ 3.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
|
LRI-27-075-R-00-20-ASENSOR LINEAR 76.2MM CABLE |
1 |
|
- |
Cylinder | LR-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 76.20mm (0 ~ 3.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
|
LRE-27-100-R-00-10-ASENSOR LINEAR 101.6MM CABLE |
0 |
|
- |
Cylinder | LR-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 101.60mm (0 ~ 4.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
|
LRE-27-150-R-00-10-ASENSOR LINEAR 152.4MM CABLE |
1 |
|
- |
Cylinder | LR-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 152.40mm (0 ~ 6.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
LRLE-27-250-R-00-10-ASENSOR LINEAR 254MM CABLE |
0 |
|
Datasheet |
Cylinder | LRL-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 254.00mm (0 ~ 10.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
GHSE-19-006-A-02-10-SSENSOR LINEAR 6.35MM CONNECTOR |
1 |
|
Datasheet |
Cylinder | GHS-19 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 6.35mm (0 ~ 0.25") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Connector | -20°C ~ 85°C | - | - | - |
|
|
LRLE-27-350-R-00-10-ASENSOR LINEAR 355.6MM CABLE |
0 |
|
Datasheet |
Cylinder | LRL-27 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 355.60mm (0 ~ 14.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
