Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1393047-5IND HOLLOW SHAFT RES |
0 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1079360MAGN POSITION SENSOR |
1 |
|
Datasheet |
Module | MPS-C | Bulk | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 50.00mm (0 ~ 1.97") | 0V ~ 10V, 4mA ~ 20mA, Push-Pull | Clockwise Increase | External Magnet, Included | - | 2 kOhms | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 70°C | - | - | - |
|
|
SP3-12POT STRING 12.5 INCH |
0 |
|
Datasheet |
Box with Connector | SP1 | Bulk | Active | - | Linear Position | - | - | 0 ~ 1270.00mm (0 ~ 50.00") | 0V ~ 10V, 4mA ~ 20mA | - | String Potentiometer | ±0.25% | - | - | 8V ~ 32V, 12V ~ 40V | Chassis Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
3382G-1-502GSENSOR ROTARY 330DEG SMD |
0 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 5 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
ADA4571BRZSENSOR ANGLE 180DEG SMD |
24 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | - | Angle | Magnetoresistive | 180° (±90°), Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX90365LDC-ACD-000-SPSENSR ROTRY/LNEAR ANLG/PWM 8SOIC |
22 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
|
MLX90374GDC-ABC-200-SPIC SENSOR HALL 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Bulk | Active | - | Linear Position | Hall Effect | - | - | PWM, SENT | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | Automotive | AEC-Q100 | 8-SOIC |
|
|
TSP-L-0012-103-1%-STSENSOR LINEAR 12.5MM SOLDER TAB |
10 |
|
Datasheet |
Sensor Strip | ThinPot | Bag | Active | - | Linear Position | Resistive | - | 0 ~ 12.50mm (0 ~ 0.49") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Solder Tab | -40°C ~ 50°C | - | - | - |
|
|
TSP-L-0050-103-3%-MPSENSOR LINEAR 50MM PC PIN |
24 |
|
Datasheet |
Sensor Strip | ThinPot | Bag | Active | - | Linear Position | Resistive | - | 0 ~ 50.00mm (0 ~ 1.97") | Resistive | - | Flexible Membrane - Linear | ±3% | 10 kOhms | ±20% | - | Custom | PC Pin | -40°C ~ 50°C | - | - | - |
|

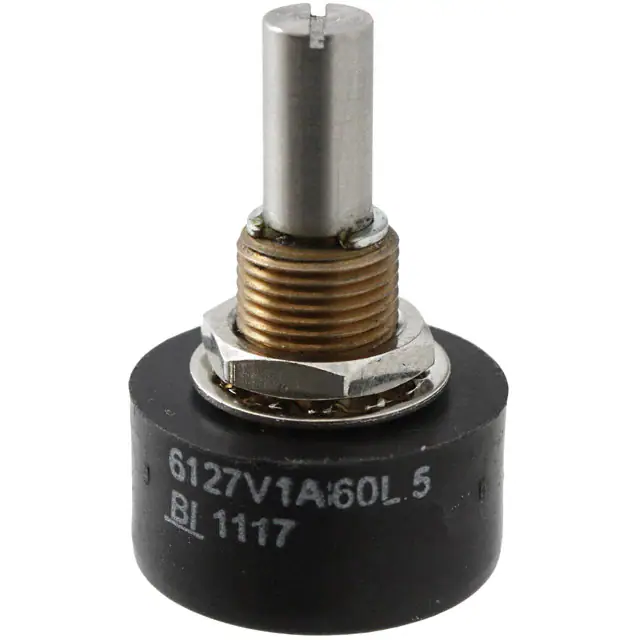

6127V1A60L.5SENSOR ROTARY 60DEG SLDR TURRET |
0 |
|
Datasheet |
Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 60°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
3046L-2-502SENSOR LINEAR 6.35MM WIRE LEADS |
5 |
|
Datasheet |
Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 6.35mm (0 ~ 0.25") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
TSP-L-0200-103-1%-STSENSOR LINEAR 200MM SOLDER TAB |
4 |
|
Datasheet |
Sensor Strip | ThinPot | Bag | Active | - | Linear Position | Resistive | - | 0 ~ 200.00mm (0 ~ 7.87") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Solder Tab | -40°C ~ 50°C | - | - | - |
|
MK5159CYLINDER SENSOR WITH AMR CELL; 2 |
1 |
|
Datasheet |
Module | - | Box | Active | - | Linear Position | - | - | - | Digital | - | T-Slot | - | - | - | 10V ~ 30V | Chassis Mount | Connector | -25°C ~ 85°C | - | - | - |
|
|
1070818SENSOR LINEAR CBL W/CONN |
1 |
|
Datasheet |
Module | MZT7 | Bulk | Active | - | Linear Position | GMR (Giant Magnetoresistive) | - | - | PNP | - | T-Slot | - | - | - | 10V ~ 30V | Chassis Mount | Cable with Connector | -30°C ~ 80°C (TA) | - | - | - |
|
|
1070820SENSOR LINEAR CBL W/CONN |
1 |
|
Datasheet |
Module | MZT7 | Bulk | Active | - | Linear Position | GMR (Giant Magnetoresistive) | - | - | NPN | - | T-Slot | - | - | - | 10V ~ 30V | Chassis Mount | Cable with Connector | -30°C ~ 80°C (TA) | - | - | - |
|
99600002MECHANICAL POSITION SENSOR, HIGH |
0 |
|
Datasheet |
Cylinder, Threaded - M8 | 99600 | Bag | Active | - | Linear Position | - | - | - | NC | - | Pin | - | - | - | 30V | Panel Mount | Cable with Connector | -20°C ~ 105°C | - | - | - |
|
V23401-T2071-B101RESOLVER |
0 |
|
Datasheet |
Ring, Wire Leads | - | Box | Active | - | Angle | - | 0° ~ 20° | - | - | - | - | - | - | - | - | Custom | - | - | - | - | - |
|
1393047-3IND HOLLOW SHAFT RES |
0 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LZE-13-12.7-A-00-10-SLINEAR POSITION SENSOR 1/2" RANG |
1 |
|
Datasheet |
Cylinder, Wire Leads | LZE-13 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 12.70mm (0 ~ 0.50") | 0V ~ 10V | - | Round Shaft | ±0.15% | - | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 105°C | - | - | - |
|
LRI-19-075-R-00-20-ASENSOR LINEAR 76.2MM CABLE |
0 |
|
Datasheet |
Cylinder | LR-19 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 76.20mm (0 ~ 3.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
