Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX90365LDC-ACD-200-SPSENSR ROTRY/LNEAR ANLG/PWM 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
MLX90374GDC-ABC-100-SPIC SENSOR HALL 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SENT | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | Automotive | AEC-Q100 | 8-SOIC |
|
|
MLX90377GDC-ADB-330-SPSENSOR MAGNET POSITION 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | - | - | 8-SOIC |
|
TLE5009A16DE2210XUMA1SENSOR ANGLE 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-TDSO-16 |
|
MLX90364LVS-ADD-200-SPSENSOR ROTARY 360DEG PC PIN |
0 |
|
Datasheet |
4-SIP Module | Triaxis® | Bulk | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog, PWM | - | External Magnet, Not Included | ±2.5° | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 150°C | Automotive | AEC-Q100 | 4-DMP |
|
MA330GQ-P14-BIT, DIGITAL, CONTACTLESS ANG |
0 |
|
Datasheet |
16-VFQFN Exposed Pad | MagAlpha | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
TLE5309DE2211XUMA1POSITION&CURRENT SENSORS |
0 |
|
Datasheet |
16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | PG-TDSO-16 |
|
|
MLX90377GVE-ADB-300-SPSENSOR MAGNET POSITION 3SMP |
0 |
|
Datasheet |
3-SIP Module | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 160°C | - | - | SMP-3 |
|
|
MLX90374GVS-ABC-200-SPIC SENSOR HALL 4DMP |
0 |
|
Datasheet |
4-SIP Module | Triaxis® | Bulk | Active | - | Linear Position | Hall Effect | - | - | PWM, SENT | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 160°C | Automotive | AEC-Q100 | 4-DMP |
|
|
MLX90316EDC-BDG-100-SPSENSOR ROTARY 360DEG SMD |
15 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | SPI | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | 8-SOIC |
|
MLX90371GGO-BCC-100-SPSENSOR ROTARY 360DEG SMD |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | - | - | 16-TSSOP |
|
|
MLX90421GGO-ADC-000-SPSENSOR MAG POS RATIO/PWM 16TSSOP |
15 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | Automotive | AEC-Q100 | 16-TSSOP |
|
|
MLX90378GGO-ABJ-300-SPTRIAXIS POSITION PROCESSOR WITH |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SENT | Programmable | External Magnet, Not Included | ±2.5° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | - | - | 16-TSSOP |
|
|
MLX90373KGO-ABA-300-SPIC SENSOR POSITION PSI-5 OUTPUT |
0 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tray | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Programmable | External Magnet, Not Included | ±1° | - | - | 4.1V ~ 6V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 16-TSSOP |
|
PSE-290-A-ERA270-S-05PANEL MOUNT HALL-EFFECT 270 DEGR |
2 |
|
Datasheet |
Module, Flatted Shaft | PSE-290 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 270°, 0° ~ 290° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | - | - | - | - |
|
PSCI-3PP-05INDUCTIVE HIGH SPEED ROTOR POSIT |
3 |
|
Datasheet |
Box with Wire Leads | PSCI | Bulk | Active | - | Rotary Position | Inductive | - | - | Analog Voltage, PWM | Cosine, Sine | Hole for Shaft | - | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 150°C | - | - | - |
|
PSC360G2-F1A-C0011-ERA090-05KSENSOR ANGLE 90DEG WIRE LEADS |
0 |
|
Datasheet |
Box with Wire Leads | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 90° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|

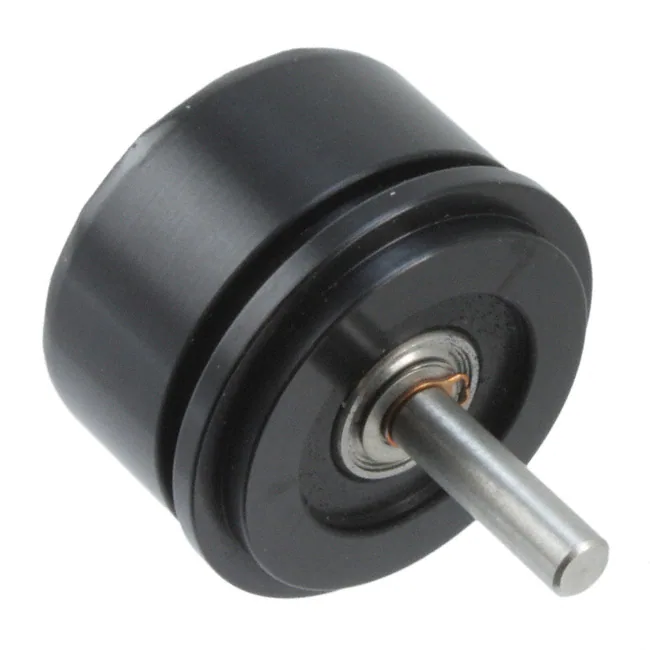

6153V1A90L.5SENSOR ROTARY 360DEG SLDR TURRET |
3 |
|
Datasheet |
Module, Round Shaft | 6150 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
AMS22U5A1BHBRL334SENSOR ROTARY 340DEG SOLDER LUG |
0 |
|
Datasheet |
Module, Round Shaft | AMS22U | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 340°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
99600004MECHANICAL POSITION SENSOR, HIGH |
0 |
|
Datasheet |
Cylinder, Threaded - M8 | 99600 | Bag | Active | - | Linear Position | - | - | - | NC, NO | - | Ball | - | - | - | 30V | Panel Mount | Cable with Connector | -20°C ~ 105°C | - | - | - |
