Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS78RBA102SFERNICE TRANSDUCERS |
34 |
|
Datasheet |
Module, Round Shaft | - | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±1% | 1 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|

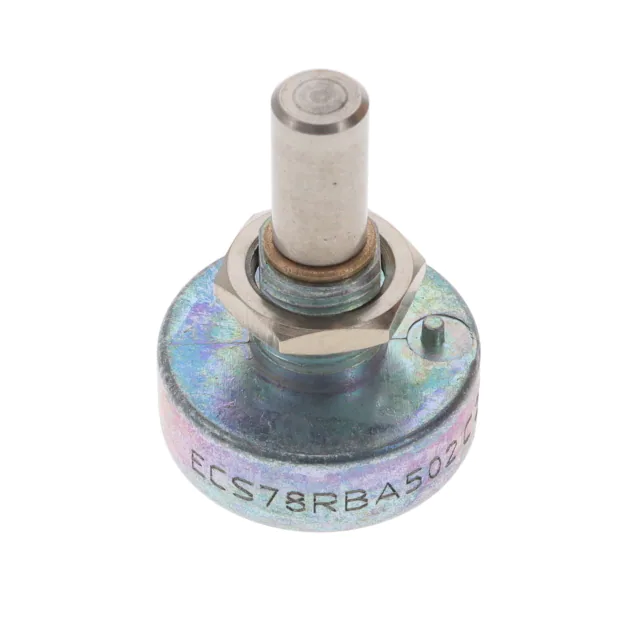

ECS78RBA502SFERNICE TRANSDUCERS |
42 |
|
Datasheet |
Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 5 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
|
PST360G2-2AA-C0123-ERA040-05KHALL-EFFECT POSITION SENSOR (THO |
37 |
|
Datasheet |
Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 40° | - | Analog Voltage | Clockwise Increase | - | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
981HE0B4WA1F16SENSOR ROTARY 360DEG WIRE LEADS |
63 |
|
Datasheet |
Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
RTY180LVNAXSENSOR ROTARY 180DEG CONNECTOR |
207 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 180° (±90°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
9851R5KL2.0SENSOR ROTARY 120 DEG CONNECTOR |
87 |
|
Datasheet |
Box with Connector | 9850 Gen II | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 85°, 0° ~ 120° | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | ±20% | - | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RTY090LVNAASENSOR ROTARY 90DEG CONNECTOR |
38 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY360LVNAXSENSOR ROTARY 360DEG CONNECTOR |
44 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
9812R5KL2.0SENSOR ROTARY CONNECTOR |
121 |
|
Datasheet |
Box with Connector | 9800 | Box | Active | - | Rotary Position | Resistive | - | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | - | - | Chassis Mount | Connector | - | - | - | - |
|
|
RTY090HVNAXSENSOR ROTARY 90DEG CONNECTOR |
53 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
93620901HALL EFFECT ROTARY SENSOR |
26 |
|
Datasheet |
Box with Connector | 9360 | Bag | Active | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage, PWM | Counterclockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
PSC360G2-F1J-C0000-ERA360-RECOMPACT ROTARY SENSOR, 12 BIT AB |
45 |
|
Datasheet |
Module, Flatted Shaft | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | CAN | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5.5V | Panel Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|

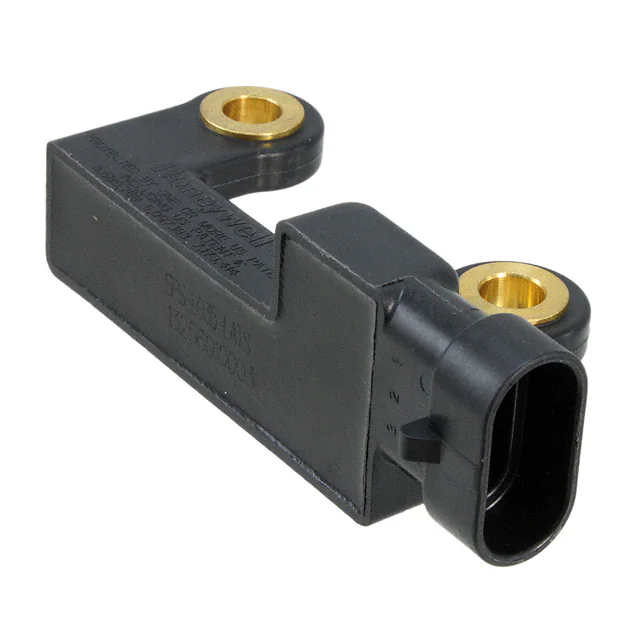

SPS-L035-LATSSENSOR LINEAR 35MM CONNECTOR |
5 |
|
Datasheet |
Box with Connector | SPS | Bulk | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 35.00mm (0 ~ 1.38") | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
SPS-L225-HALSSENSOR LINEAR 225MM WIRE LEAD |
283 |
|
Datasheet |
Box with Wire Leads | SPS | Box | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 225.00mm (0 ~ 8.86") | Analog Voltage | - | External Magnet, Included | ±0.4% | - | - | 6V ~ 24V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
LX34070-H/STHIGH SPEED INDUCTIVE POSITION SE |
3,282 |
|
- |
14-TSSOP (0.173", 4.40mm Width) | - | Tube | Active | - | - | Inductive | - | - | - | Cosine, Sine | Inductive Target | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
|
A33230LLHALT-XY-S-AR-103D HALL-EFFECT SENSOR IC WITH SI |
13,684 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
|
A33230LLHALT-XZ-S-AR-033D HALL-EFFECT SENSOR IC WITH SI |
2,674 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
|
A33230LLHALT-XZ-S-AR-103D HALL-EFFECT SENSOR IC WITH SI |
2,463 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
3382G-1-503GSENSOR ROTARY 330DEG SMD |
781 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 50 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
3382G-1-252GSENSOR ROTARY 330DEG SMD |
685 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 2.5 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
Angle, Linear Position Measuring Electronic Components
Explore Angle, Linear Position Measuring electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
