Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAS2143-AAAASENSOR ANGLE 360DEG SMD |
672 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | TAS | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | 5 kOhms | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 8-TSSOP |
|
TLE5012BDE1200XUMA1SPEED SENSORS 16TDSO |
4,309 |
|
Datasheet |
16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | SENT, SPI | Cosine, Sine | External Magnet, Not Included | - | - | - | - | Surface Mount | Gull Wing | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | PG-TDSO-16 |
|
MLX90316KDC-BCG-200-RESENSOR ROTARY 360DEG SMD |
5,585 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX90316KDC-BCG-300-RESENSOR ROTARY 360DEG SMD |
4,299 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
AS5147U-HTSM TSSOP14 LF T&RDPAS5147U-HTSM TSSOP14 LF T&RDP |
469 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 14-TSSOP |
|
IPS2200BI1RHIGH-SPEED INDUCTIVE POSITION SE |
2,736 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Inductive | 0° ~ 360°, Continuous | - | Analog | Cosine, Sine | Inductive Target | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | 16-TSSOP |
|
|
AS5047U-HTSM TSSOP14 LF T&RDPAS5047U-HTSM TSSOP14 LF T&RDP |
303 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 14-TSSOP |
|
TSP-L-0025-103-1%-RHSENSOR LINEAR 25MM CONNECTOR |
656 |
|
Datasheet |
Sensor Strip | ThinPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 25.00mm (0 ~ 0.98") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
|
AS5048A-HTSP TSSOP14 LF T&RDPSENSOR ANGLE 360DEG SMD |
3,371 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
|
|
FS-L-055-253-MPSENSOR LINEAR 55MM PC PIN |
184 |
|
Datasheet |
Sensor Strip | FS | Bag | Active | - | Linear Position | Resistive | - | - | Resistive | - | Flexible Membrane - Linear | - | 25 kOhms | ±30% | - | Custom | PC Pin | -35°C ~ 80°C | - | - | - |
|
SP-L-0100-103-3%-RHSENSOR LINEAR 100MM CONNECTOR |
319 |
|
Datasheet |
Sensor Strip | SoftPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 100.00mm (0 ~ 3.94") | Resistive | - | Flexible Membrane - Linear | ±3% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|

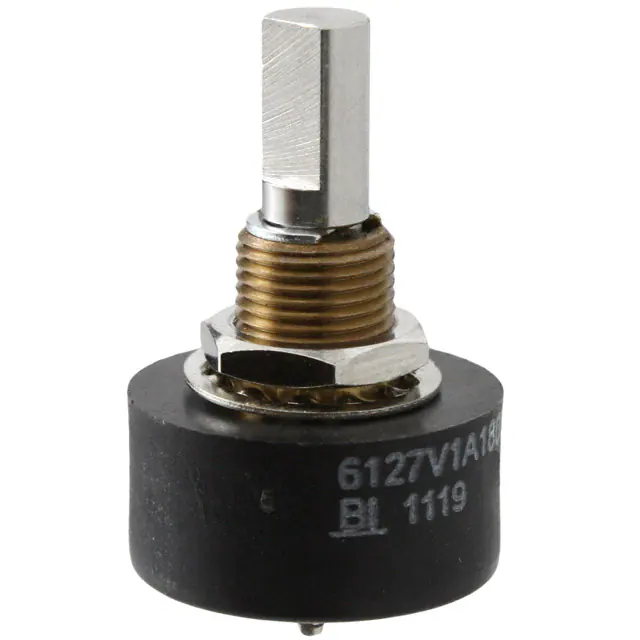

6127V1A180L.5FSSENSOR ROTARY 180DEG SLDR TURRET |
432 |
|
Datasheet |
Module, Flatted Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
LIN-11HAW1SENSOR LINEAR 45MM WIRE LEADS |
560 |
|
Datasheet |
Box with Wire Leads | LIN | Bulk | Active | - | Linear Position | Hall Effect | - | 0 ~ 45.00mm (0 ~ 1.77") | Analog Voltage, PWM | - | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 140°C | - | - | - |
|
ANG-11HAW1SENSOR ANGLE 360DEG WIRE LEADS |
126 |
|
Datasheet |
Box with Wire Leads | ANG | Bulk | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Counterclockwise Increase | External Magnet, Not Included | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 140°C | - | - | - |
|
|
TSP-L-0300-103-1%-RHSENSOR LINEAR 300MM CONNECTOR |
116 |
|
Datasheet |
Sensor Strip | ThinPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 300.00mm (0 ~ 11.81") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
105040402-012-AXIS |
190 |
|
Datasheet |
Module | - | Bulk | Active | - | Angle | Capacitive | - | - | I2C | - | Flexible Membrane - Linear | - | - | - | 1.8V ~ 3.63V | Custom | Solder Pad | - | - | - | - |
|
PSC360G2-F1A-C0000-ERA360-05KSENSOR ANGLE 360DEG WIRE LEADS |
41 |
|
Datasheet |
Box with Wire Leads | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
PST360G2-B-1A-C0000-ERA360-05KTHROUGH HOLE MAGNETIC POSITION S |
37 |
|
Datasheet |
Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
PS2P-LIN-LA-M002-1A0-L0000-ELS120-05SENSOR LINEAR 12MM WIRE LEADS |
58 |
|
Datasheet |
Box with Wire Leads | PS2P-LIN | Bulk | Active | - | Linear Position | Hall Effect | - | 0 ~ 12mm (0 ~ 0.47") | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|

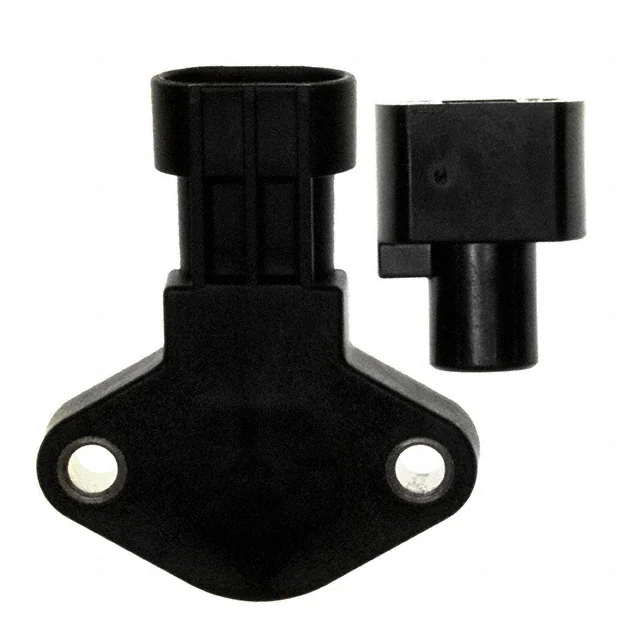

CU103602SENSOR ANGLE 360DEG CONNECTOR |
127 |
|
Datasheet |
Box with Connector | - | Box | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±3.5% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
