Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55300-00-02-ASENSOR ROTARY 360DEG WIRE LEADS |
374 |
|
Datasheet |
Rectangular, Wire Leads | - | Box | Active | - | Rotary Position | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | External Magnet, Included | - | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 105°C | - | - | - |
|
FS-L-095-103-STSENSOR LINEAR SOLDER TABS |
429 |
|
Datasheet |
Sensor Strip | FS | Bulk | Active | - | Linear Position | Resistive | - | - | Resistive | - | Flexible Membrane - Linear | - | 10 kOhms | ±30% | - | Custom | Solder Tab | -35°C ~ 80°C | - | - | - |
|
9615R5.1KL2.0SENSOR LINEAR 38.1MM SOLDER LUG |
128 |
|
Datasheet |
Box with Solder Lugs | 9600 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 38.10mm (0 ~ 1.50") | Resistive | - | Round Shaft | ±0.35% | 5.1 kOhms | ±25% | - | Chassis Mount | Solder Lug | -40°C ~ 135°C | - | - | - |
|

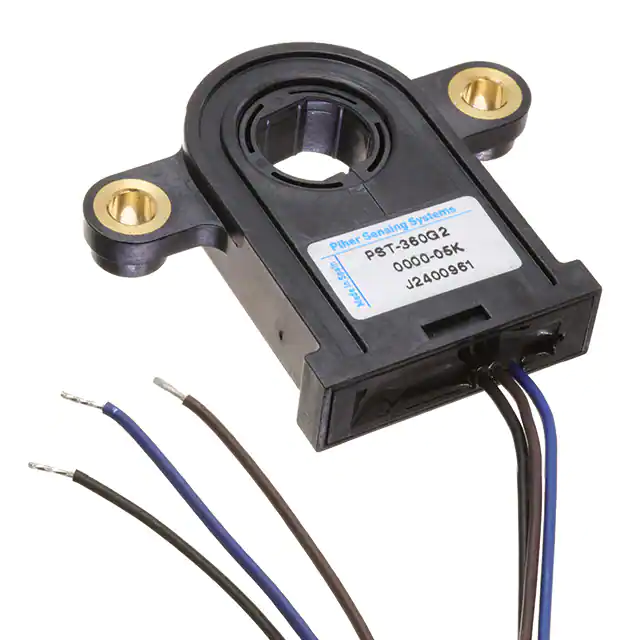

PST360G2-1A-C0000-ERA360-05KSENSOR ANGLE 360DEG WIRE LEADS |
50 |
|
Datasheet |
Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
RTY090LVNAXSENSOR ROTARY 90DEG CONNECTOR |
437 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY120LVEAXSENSOR ROTARY 120DEG CONNECTOR |
1,127 |
|
Datasheet |
Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 120° (±60°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|

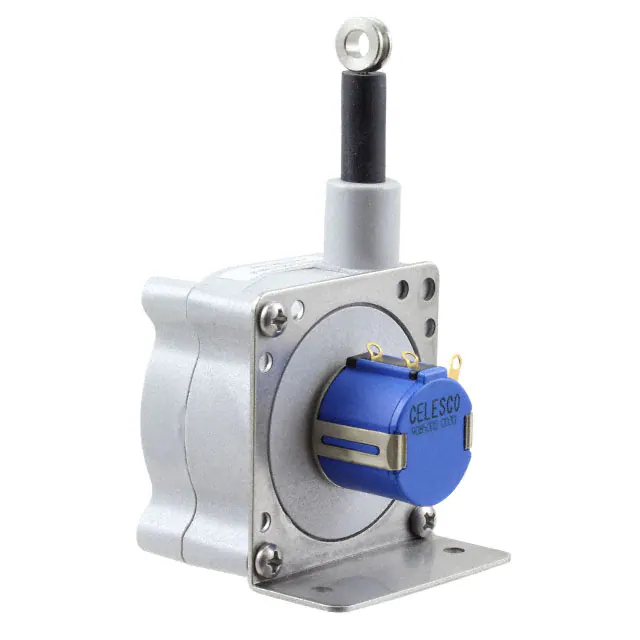

SP1-50SENSOR LINEAR 1270MM SOLDER LUG |
30 |
|
Datasheet |
Box with Connector | SP1 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1270mm (0 ~ 50") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Solder Lug | -18°C ~ 70°C | - | - | - |
|
SP2-25SENSOR LINEAR 635MM WIRE LEADS |
30 |
|
Datasheet |
Box with Wire Leads | SP2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 635mm (0 ~ 25") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
|
SP2-50SENSOR LINEAR 1270MM WIRE LEADS |
40 |
|
Datasheet |
Box with Wire Leads | SP2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1270mm (0 ~ 50") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
SPD-50-3SENSOR LINEAR 1270MM CONNECTOR |
43 |
|
Datasheet |
Box with Connector | SPD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1270mm (0 ~ 50") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 40V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
SR1A-125STRING POT, 125 INCH RANGE |
39 |
|
Datasheet |
Box with Connector | SR1 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 3175.00mm (0 ~ 125.00") | Resistive | - | String Potentiometer | ±0.5% | 10 kOhms | - | 30VAC/DC | Chassis Mount | Cable | -40°C ~ 85°C | - | - | - |
|
A33230LLHALT-XY-S-AR-033D HALL-EFFECT SENSOR IC WITH SI |
28,291 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
|
RDC503052ARESISTIVE POSITION SENSORS ROTAR |
3,573 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | - | - | Analog Voltage | - | Hole for Shaft | ±2% | 10 kOhms | ±30% | 5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | 4-SMD |
|
3382G-2-103GSENSOR ROTARY 330DEG SMD |
2,368 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
3382G-1-104GSENSOR ROTARY 330DEG SMD |
896 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 100 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
RDC506018ASENSOR ROTARY 333DEG SMD |
8,710 |
|
Datasheet |
4-SMD, Gull Wing | RDC50 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | - | - | Resistive | - | Hole for Shaft | ±2% | 10 kOhms | ±30% | 5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|

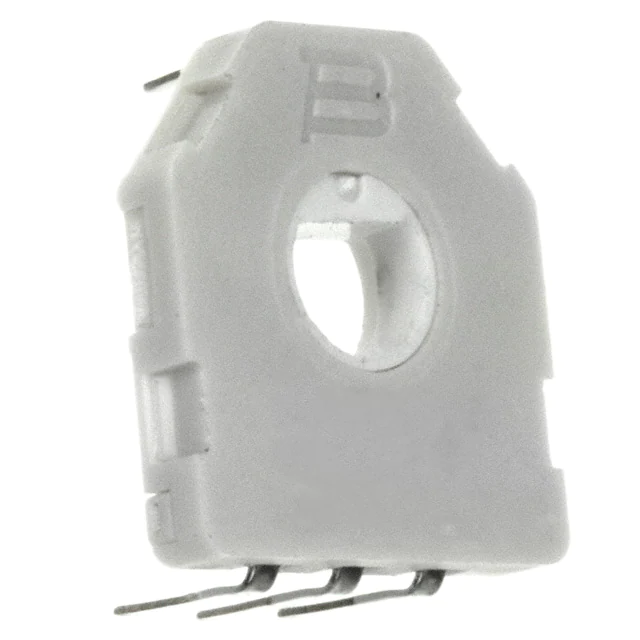

3382H-1-103SENSOR ROTARY 330DEG PC PIN |
6,900 |
|
Datasheet |
Module, PC Pins | - | Tube | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Through Hole | PC Pin | -40°C ~ 120°C | - | - | - |
|
A1330LLETR-TPROGRAMMABLE ANGLE SENSOR IC WIT |
10,627 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 8-TSSOP |
|
HAL3736DJ-ASENSOR ANGLE 360DEG SMD |
6,150 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Hal® 37 | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | PWM, SENT | - | External Magnet, Not Included | ±0.1% | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 170°C | Automotive | AEC-Q100 | 8-SOIC-1 |
|
|
HAL3737DJ-ASENSOR ANGLE 360DEG SMD |
5,206 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Hal® 37 | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | PWM, SENT | - | External Magnet, Not Included | ±0.1% | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 170°C | Automotive | AEC-Q100 | 8-SOIC-1 |
Angle, Linear Position Measuring Electronic Components
Explore Angle, Linear Position Measuring electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
