Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCJ1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
750 |
|
Datasheet |
UCJ | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | 14Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EKZN6R3ELL152MH20DCAP ALUM 1500UF 20% 6.3V RADIAL |
747 |
|
Datasheet |
KZN | Bulk | Active | 1500 µF | ±20% | 6.3 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.5 A @ 100 kHz | 41 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
63ZLH100MEFC8X16CAP ALUM 100UF 20% 63V RADIAL TH |
636 |
|
Datasheet |
ZLH | Bulk | Active | 100 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 344 mA @ 120 Hz | - | 160 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
16ZLQ1200MEFC10X16CAP ALUM 1200UF 20% 16V RADIAL |
539 |
|
Datasheet |
ZLQ | Bulk | Active | 1200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.158 A @ 120 Hz | 1.93 A @ 100 kHz | 25 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
860130875008CAP ALUM 33UF 20% 100V RADIAL TH |
516 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 33 µF | ±20% | 100 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 214.2 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UUX2D100MNL1GSCAP ALUM 10UF 20% 200V SMD |
449 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 10 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 64 mA @ 120 Hz | 106.88 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
UCJ1H100MCL1GSCAP ALUM 10UF 20% 50V SMD |
108 |
|
Datasheet |
UCJ | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | 14Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-FR1V391LBCAP ALUM 390UF 20% 35V RADIAL TH |
58 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 390 µF | ±20% | 35 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

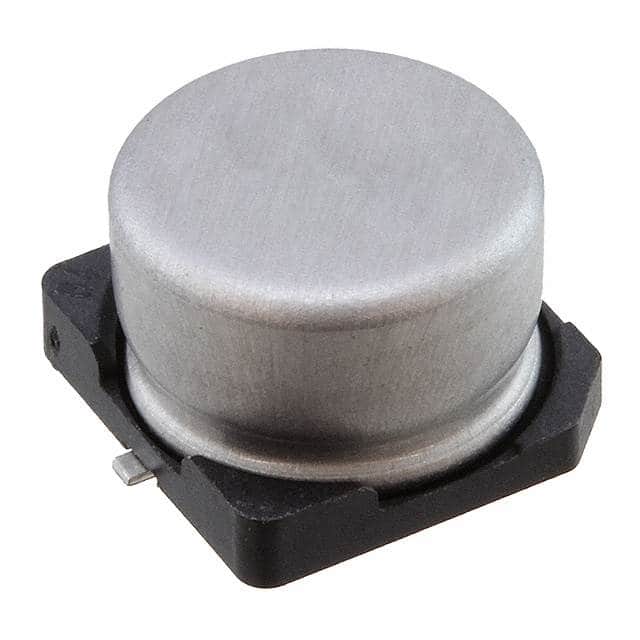

UWP1C470MCL1GBCAP ALUM 47UF 20% 16V SMD |
1,951 |
|
Datasheet |
UWP | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 75 mA @ 120 Hz | 112.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.217" (5.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPW1J121MPD1TDCAP ALUM 120UF 20% 63V RADIAL TH |
1,629 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 120 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 194 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UVK1E471MPD1TDCAP ALUM 470UF 20% 25V RADIAL TH |
1,492 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
URS1H221MPD1TDCAP ALUM 220UF 20% 50V RADIAL TH |
1,453 |
|
Datasheet |
URS | Cut Tape (CT) | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 420 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ECA-1JM331BCAP ALUM 330UF 20% 63V RADIAL TH |
1,200 |
|
Datasheet |
M-A | Cut Tape (CT) | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 935 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-1EA331PCAP ALUM 330UF 20% 25V SMD |
1,150 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 340 mA @ 120 Hz | 578 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ECA-2WHG3R3BCAP ALUM 3.3UF 20% 450V RADIAL |
1,000 |
|
Datasheet |
NHG-A | Cut Tape (CT) | Active | 3.3 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 41 mA @ 120 Hz | 61.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEU-EB1V331BCAP ALUM 330UF 20% 35V RADIAL TH |
976 |
|
Datasheet |
EB-A | Cut Tape (CT) | Active | 330 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 278 mA @ 120 Hz | 361.4 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
URZ1H221MPD1TDCAP ALUM 220UF 20% 50V RADIAL TH |
956 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 435 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UKT0J471MPDCAP ALUM 470UF 20% 6.3V RADIAL |
946 |
|
Datasheet |
UKT | Bulk | Not For New Designs | 470 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 270 mA @ 120 Hz | 405 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
EMZR100ARA102MHA0GCAP ALUM 1000UF 20% 10V SMD |
882 |
|
Datasheet |
Alchip™- MZR | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ECA-2EHG220BCAP ALUM 22UF 20% 250V RADIAL TH |
838 |
|
Datasheet |
NHG-A | Cut Tape (CT) | Active | 22 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 155 mA @ 120 Hz | 232.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
