Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUB1H330MNL1GSCAP ALUM 33UF 20% 50V SMD |
1,000 |
|
Datasheet |
UUB | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | General Purpose | 46 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UHV1V471MPD1TDCAP ALUM 470UF 20% 35V RADIAL TH |
997 |
|
Datasheet |
UHV | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 907.5 mA @ 120 Hz | 1.815 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
63YXG120MEFC10X16CAP ALUM 120UF 20% 63V RADIAL TH |
962 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 120 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 178.5 mA @ 120 Hz | 357 mA @ 100 kHz | 310 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
ECA-0JM472CAP ALUM 4700UF 20% 6.3V RADIAL |
890 |
|
Datasheet |
M-A | Bulk | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.989 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|

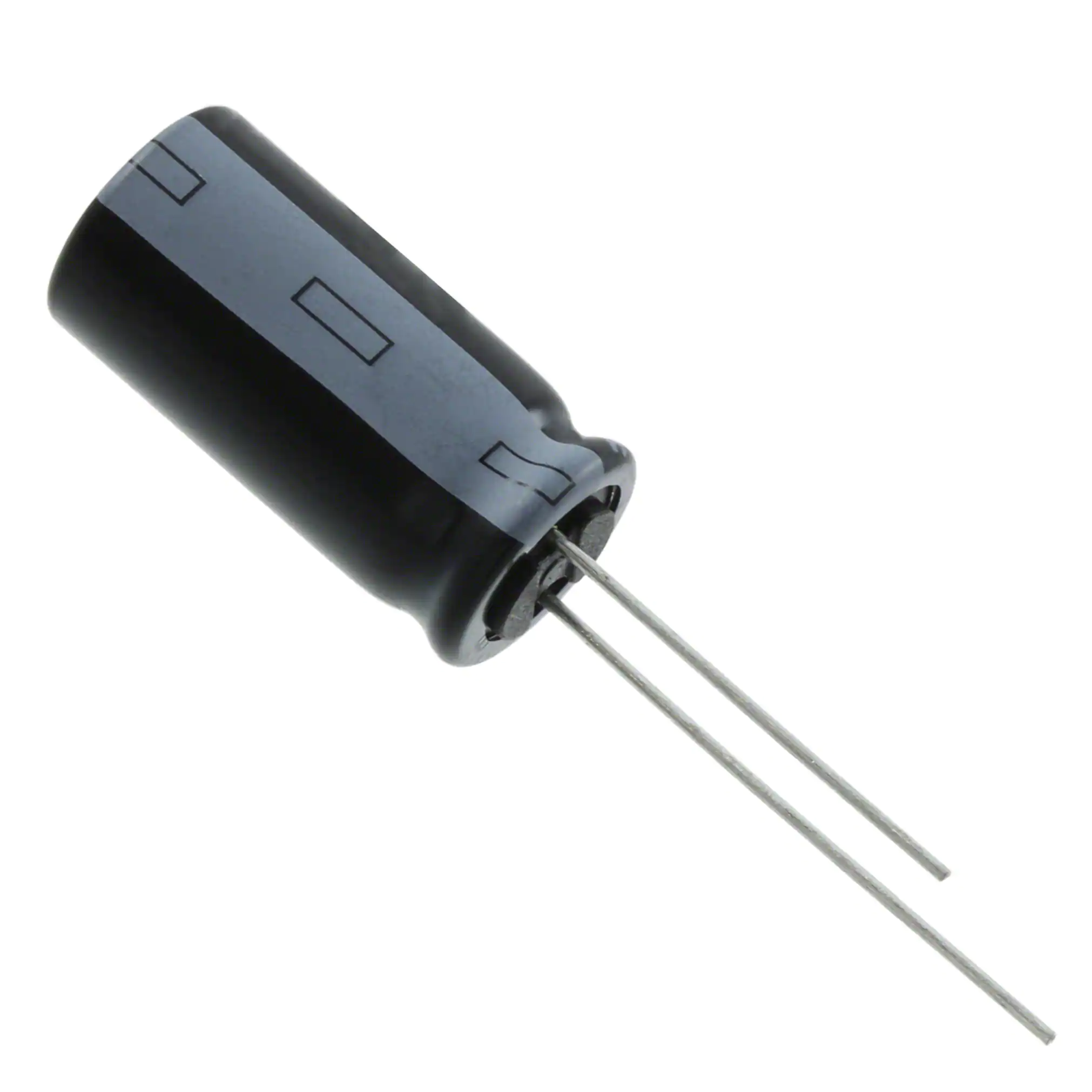

10ZLS1800MEFC10X20CAP ALUM 1800UF 20% 10V RADIAL |
880 |
|
Datasheet |
ZLS | Bulk | Active | 1800 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.176 A @ 120 Hz | 1.96 A @ 100 kHz | 20 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
200RX3010M8X16CAP ALUM 10UF 20% 200V RADIAL TH |
848 |
|
Datasheet |
RX30 | Bulk | Active | 10 µF | ±20% | 200 V | - | 2000 Hrs @ 130°C | -25°C ~ 130°C | Polar | AEC-Q200 | Automotive | 60 mA @ 120 Hz | 200 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
250LLE12MEFC10X12.5CAP ALUM 12UF 20% 250V RADIAL TH |
836 |
|
Datasheet |
LLE | Bulk | Active | 12 µF | ±20% | 250 V | - | 15000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 97 mA @ 120 Hz | 184 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
UVR2W4R7MPD1TDCAP ALUM 4.7UF 20% 450V RADIAL |
816 |
|
Datasheet |
UVR | Cut Tape (CT) | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 88 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
URS1H331MHDCAP ALUM 330UF 20% 50V RADIAL TH |
738 |
|
Datasheet |
URS | Bulk | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 795 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | - | Through Hole | |
|
80ZLH82MEFC10X12.5CAP ALUM 82UF 20% 80V RADIAL TH |
724 |
|
Datasheet |
ZLH | Bulk | Active | 82 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 312 mA @ 120 Hz | - | 230 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EEE-FN1V221PCAP ALUM 220UF 20% 35V SMD |
657 |
|
Datasheet |
FN | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPJ0J152MPDCAP ALUM 1500UF 20% 6.3V RADIAL |
651 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.22 A @ 10 kHz | 84 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UVR2W4R7MPDCAP ALUM 4.7UF 20% 450V RADIAL |
370 |
|
Datasheet |
UVR | Bulk | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 88 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UUL0J470MCL1GSCAP ALUM 47UF 20% 6.3V SMD |
288 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 36 mA @ 120 Hz | 54 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UUB1A221MNL1GSCAP ALUM 220UF 20% 10V SMD |
151 |
|
Datasheet |
UUB | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | General Purpose | 90 mA @ 120 Hz | 135 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UFW1A222MPDCAP ALUM 2200UF 20% 10V RADIAL |
100 |
|
Datasheet |
UFW | Bulk | Not For New Designs | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.05 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
UPM1H181MPDCAP ALUM 180UF 20% 50V RADIAL TH |
78 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 180 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 670 mA @ 120 Hz | 945 mA @ 10 kHz | 85 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UUL1A470MCL1GSCAP ALUM 47UF 20% 10V SMD |
39 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 50 mA @ 120 Hz | 75 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPA0J152MPD6TDCAP ALUM 1500UF 20% 6.3V RADIAL |
1,923 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 1500 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.054 A @ 120 Hz | 1.24 A @ 100 kHz | 49 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
UPM1A102MPD1TDCAP ALUM 1000UF 20% 10V RADIAL |
1,734 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 915 mA @ 120 Hz | 1.06 A @ 10 kHz | 60 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
