Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HBV470YAPCAP ALUM 47UF 20% 35V SMD |
800 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 98 mA @ 120 Hz | 166.6 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UKW0J102MPD1TDCAP ALUM 1000UF 20% 6.3V RADIAL |
784 |
|
Datasheet |
UKW | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 530 mA @ 120 Hz | 609.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
16ZLQ1200MEFC8X20CAP ALUM 1200UF 20% 16V RADIAL |
725 |
|
Datasheet |
ZLQ | Bulk | Active | 1200 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 996 mA @ 120 Hz | 1.66 A @ 100 kHz | 27 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UZG1H3R3MCL1GBCAP ALUM 3.3UF 20% 50V SMD |
720 |
|
Datasheet |
UZG | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | AEC-Q200 | General Purpose | 12 mA @ 120 Hz | 18 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
860130875007CAP ALUM 22UF 20% 100V RADIAL TH |
355 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 22 µF | ±20% | 100 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 137.7 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
35ZLS390MEFC8X20CAP ALUM 390UF 20% 35V RADIAL TH |
315 |
|
Datasheet |
ZLS | Bulk | Active | 390 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 775.5 mA @ 120 Hz | 1.41 A @ 100 kHz | 33 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM2D3R3MPD1TDCAP ALUM 3.3UF 20% 200V RADIAL |
184 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
860010478019CAP ALUM 1500UF 20% 25V RADIAL |
145 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 1500 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.353 A @ 120 Hz | 1.73184 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPS0J222MHDCAP ALUM 2200UF 20% 6.3V RADIAL |
77 |
|
Datasheet |
UPS | Bulk | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.088 A @ 120 Hz | 1.25 A @ 100 kHz | 75 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEE-HBC470XAPCAP ALUM 47UF 20% 16V SMD |
1,605 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84 mA @ 120 Hz | 142.8 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UUD0J471MNL1GSCAP ALUM 470UF 20% 6.3V SMD |
1,431 |
|
Datasheet |
UUD | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UUL1H4R7MCL1GSCAP ALUM 4.7UF 20% 50V SMD |
1,384 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 19 mA @ 120 Hz | 28.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UVY1C102MPDCAP ALUM 1000UF 20% 16V RADIAL |
991 |
|
Datasheet |
UVY | Bulk | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 575 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

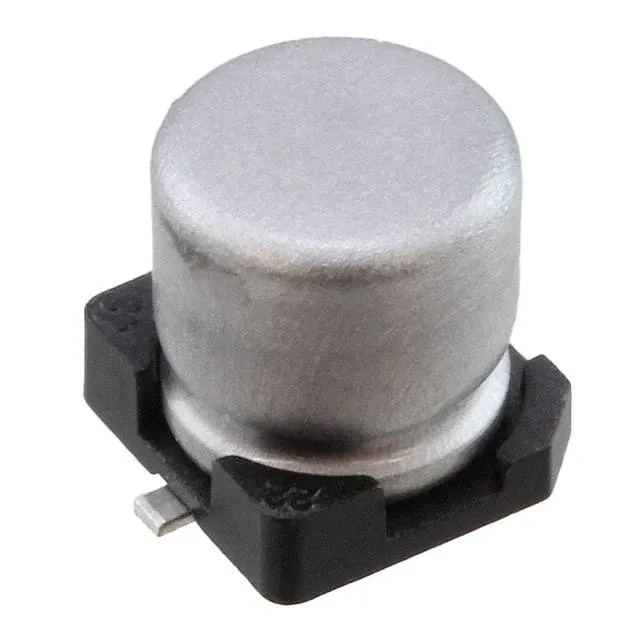

UWP0J220MCL1GBCAP ALUM 22UF 20% 6.3V SMD |
980 |
|
Datasheet |
UWP | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | AEC-Q200 | General Purpose | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UVP1A221MPD1TDCAP ALUM 220UF 20% 10V RADIAL TH |
963 |
|
Datasheet |
UVP | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 215 mA @ 120 Hz | 322.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-HD1V330APCAP ALUM 33UF 20% 35V SMD |
962 |
|
Datasheet |
HD | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 53 mA @ 120 Hz | 90.1 mA @ 10 kHz | 2 Ohms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FR1J151BCAP ALUM 150UF 20% 63V RADIAL TH |
941 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 150 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 751.1 mA @ 120 Hz | 1.073 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UUL1H100MCL1GSCAP ALUM 10UF 20% 50V SMD |
868 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

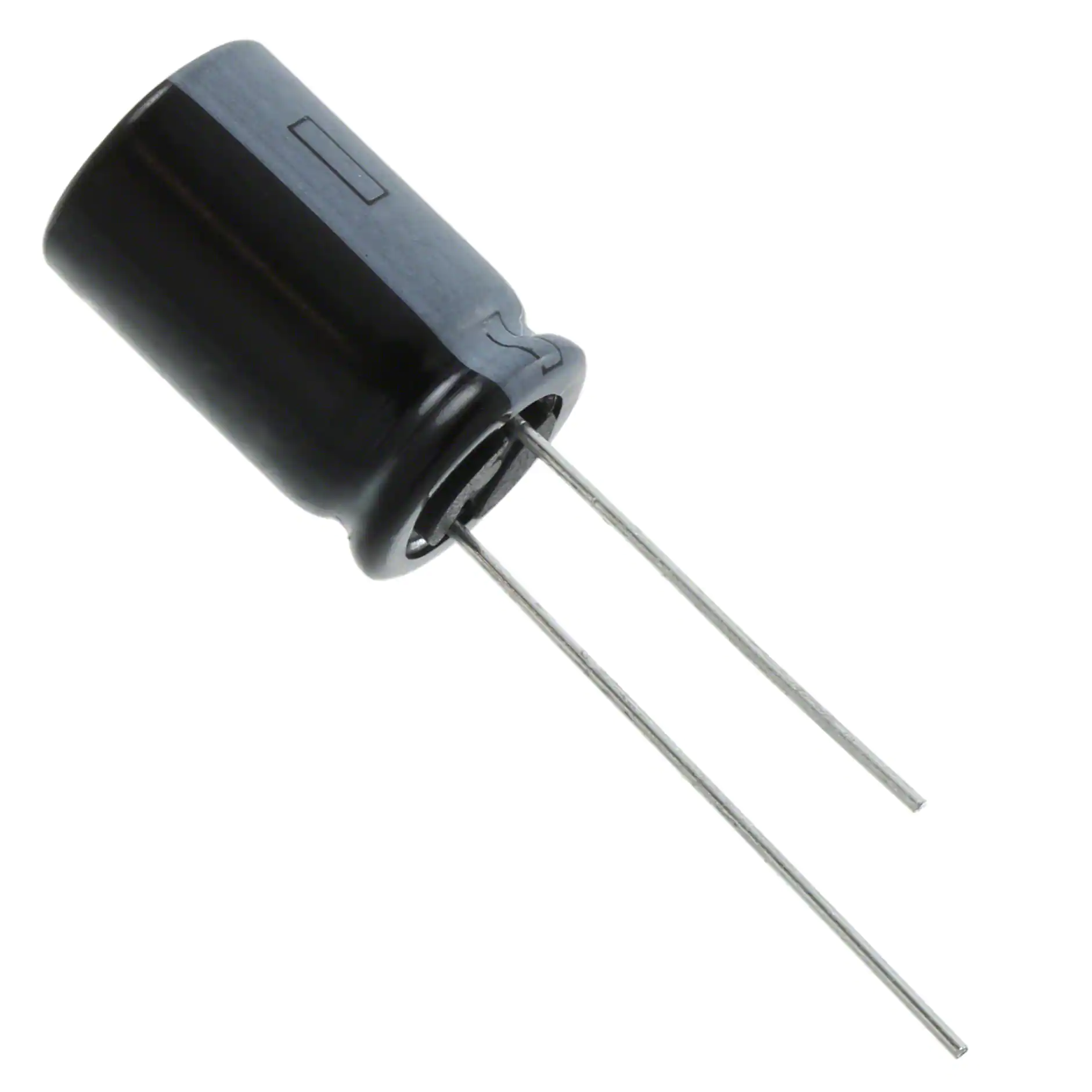

25ZLS680MEFC10X16CAP ALUM 680UF 20% 25V RADIAL TH |
850 |
|
Datasheet |
ZLS | Bulk | Active | 680 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 907.5 mA @ 120 Hz | 1.65 A @ 100 kHz | 32 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEU-HD1V101BCAP ALUM 100UF 20% 35V RADIAL TH |
844 |
|
Datasheet |
HD | Cut Tape (CT) | Active | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 225 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.500" (12.70mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
