Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HB1A101APCAP ALUM 100UF 20% 10V SMD |
1,868 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UCJ1V220MCL1GSCAP ALUM 22UF 20% 35V SMD |
1,549 |
|
Datasheet |
UCJ | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | 14Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
860080575017CAP ALUM 470UF 20% 35V RADIAL TH |
1,259 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.85 A @ 100 kHz | 34 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UES1A471MHM1TOCAP ALUM 470UF 20% 10V RADIAL TH |
1,188 |
|
Datasheet |
UES | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPV1H560MGD1TDCAP ALUM 56UF 20% 50V RADIAL TH |
1,000 |
|
Datasheet |
UPV | Cut Tape (CT) | Not For New Designs | 56 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 350 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UUX1A471MNL1GSCAP ALUM 470UF 20% 10V SMD |
980 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 351 mA @ 120 Hz | 456.3 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UWZ1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
772 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 220 mA @ 120 Hz | 232.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPJ2C2R2MPD1TDCAP ALUM 2.2UF 20% 160V RADIAL |
736 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 2.2 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 48 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPJ1C152MHD6TNCAP ALUM 1500UF 20% 16V RADIAL |
580 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.56 A @ 10 kHz | 66 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPA0J102MPD1TDCAP ALUM 1000UF 20% 6.3V RADIAL |
541 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 1000 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 860 mA @ 100 kHz | 62 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UHE1A152MPDCAP ALUM 1500UF 20% 10V RADIAL |
519 |
|
Datasheet |
UHE | Bulk | Active | 1500 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 1.65 A @ 100 kHz | 42 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
50ZLJ120M8X16CAP ALUM 120UF 20% 50V RADIAL TH |
344 |
|
Datasheet |
ZLJ | Bulk | Active | 120 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 615 mA @ 120 Hz | 1.23 A @ 100 kHz | 82 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
160PK47MEFC10X20CAP ALUM 47UF 20% 160V RADIAL TH |
332 |
|
Datasheet |
PK | Bulk | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ2D010MPD1TDCAP ALUM 1UF 20% 200V RADIAL TH |
204 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 30.4 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

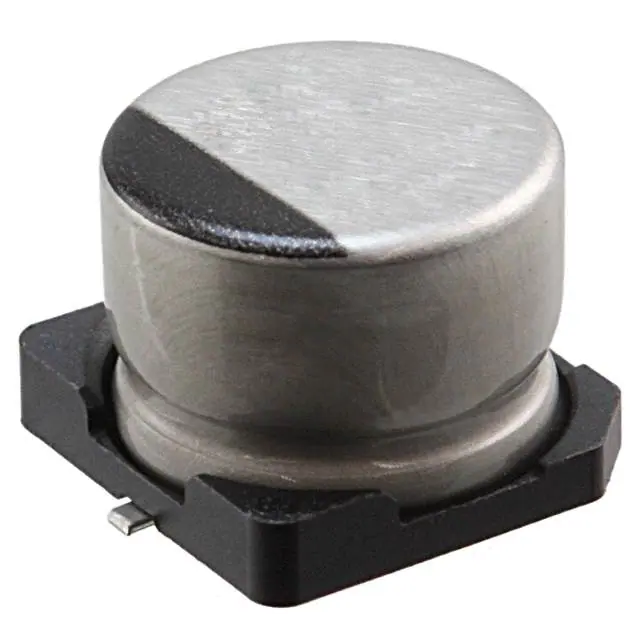

UUB1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
1,888 |
|
Datasheet |
UUB | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 48 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UUX2E6R8MNL1GSCAP ALUM 6.8UF 20% 250V SMD |
1,326 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 44 mA @ 120 Hz | 73.48 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

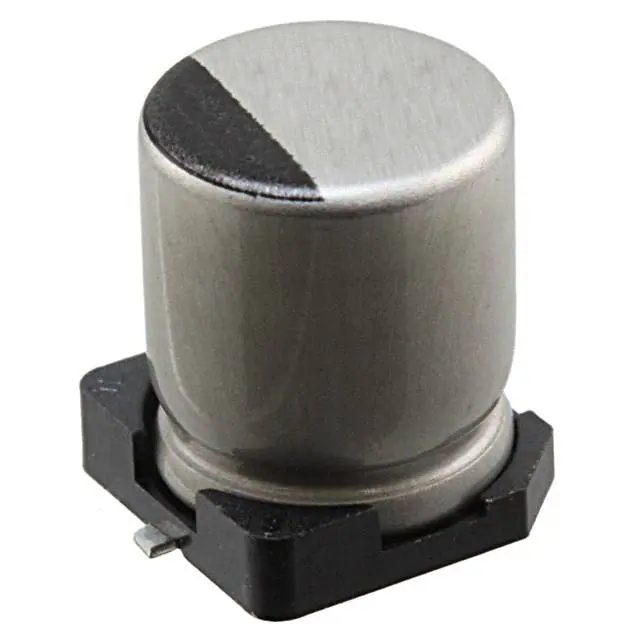

UUA1A101MCL1GSCAP ALUM 100UF 20% 10V SMD |
1,312 |
|
Datasheet |
UUA | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 81 mA @ 120 Hz | 121.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UKL1A331MPD1TDCAP ALUM 330UF 20% 10V RADIAL TH |
1,291 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 400 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UCA2C100MPD1TDCAP ALUM 10UF 20% 160V RADIAL TH |
1,220 |
|
Datasheet |
UCA | Cut Tape (CT) | Not For New Designs | 10 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

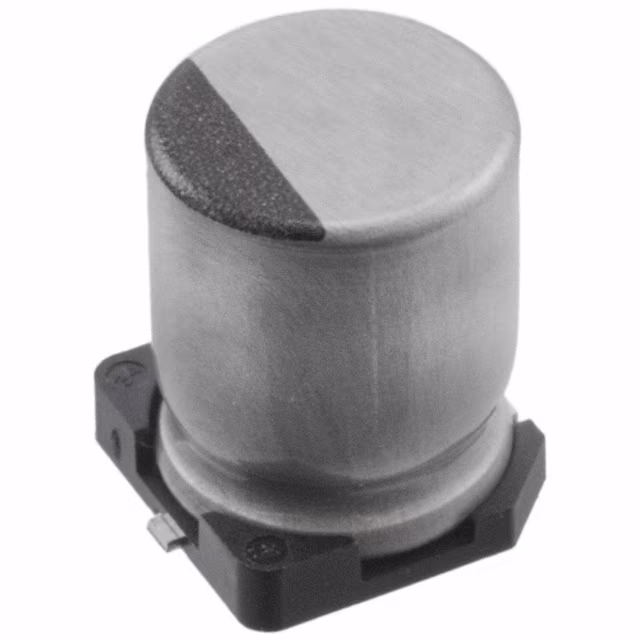

16TZV330M8X10.5CAP ALUM 330UF 20% 16V SMD |
1,217 |
|
Datasheet |
TZV | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
