Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HAH470XAPCAP ALUM 47UF 20% 50V SMD |
273 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 63 mA @ 120 Hz | 107.1 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UKL1E101MPD1TDCAP ALUM 100UF 20% 25V RADIAL TH |
1,971 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 420 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1H221MHD6TDCAP ALUM 220UF 20% 50V RADIAL TH |
1,266 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 670 mA @ 120 Hz | 920 mA @ 10 kHz | 80 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|
160PX47MEFCT810X20CAP ALUM 47UF 20% 160V RADIAL TH |
1,074 |
|
Datasheet |
PX | Cut Tape (CT) | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 225 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCM1V680MCL1GSCAP ALUM 68UF 20% 35V SMD |
1,003 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ1A471MPD6CAP ALUM 470UF 20% 10V RADIAL TH |
952 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | - | 210 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

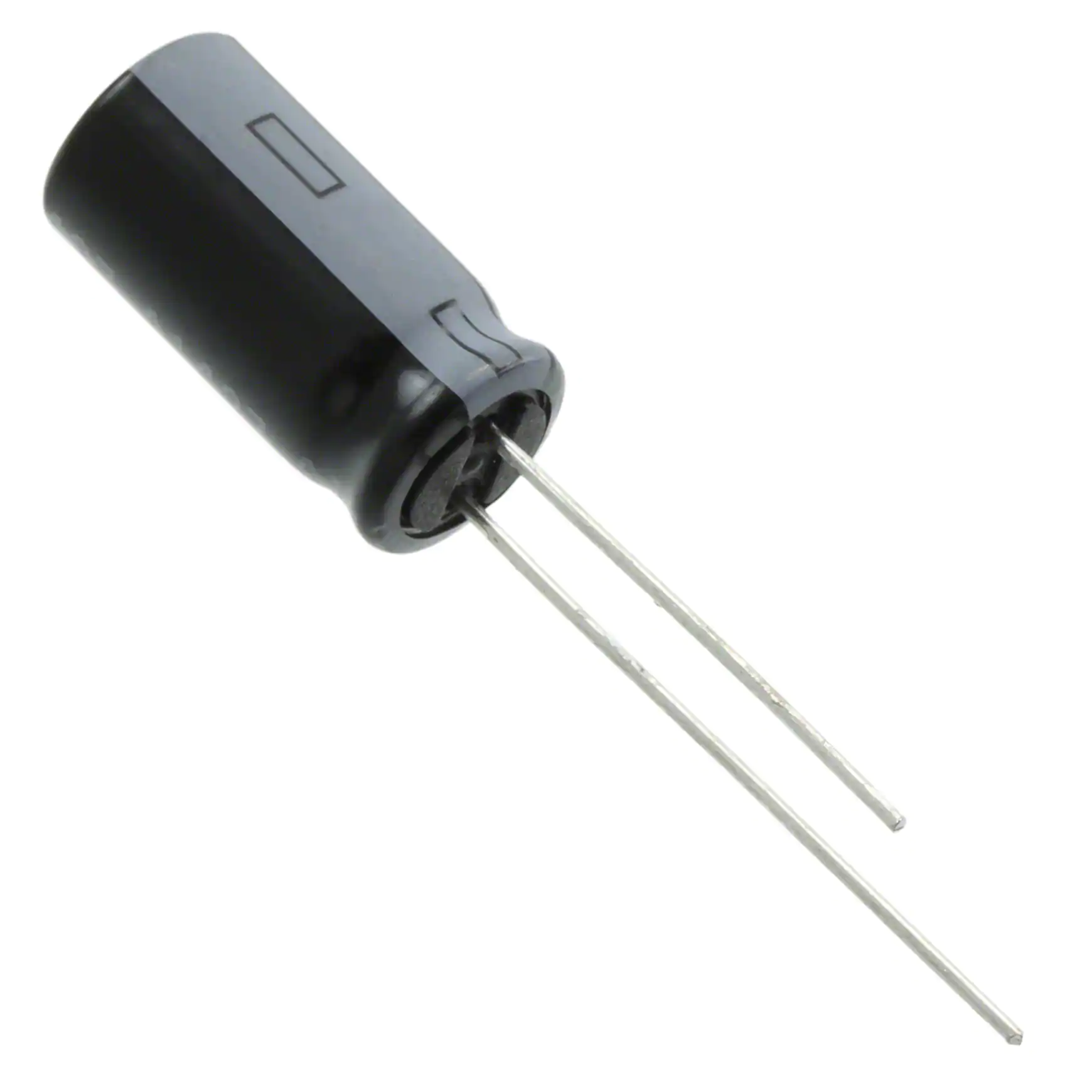

10ZLS1000MEFC8X16CAP ALUM 1000UF 20% 10V RADIAL |
896 |
|
Datasheet |
ZLS | Bulk | Active | 1000 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 726 mA @ 120 Hz | 1.21 A @ 100 kHz | 48 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
16ZLJ560M8X16CAP ALUM 560UF 20% 16V RADIAL TH |
754 |
|
Datasheet |
ZLJ | Bulk | Active | 560 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.6 A @ 100 kHz | 59 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UVR1H221MPD1CPCAP ALUM 220UF 20% 50V RADIAL TH |
716 |
|
Datasheet |
UVR | Bulk | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 645 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ECE-A0JN221UCAP ALUM 220UF 20% 6.3V RADIAL |
595 |
|
- |
SU | Bulk | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 340 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
UCQ1A220MCL1GBCAP ALUM 22UF 20% 10V SMD |
435 |
|
Datasheet |
UCQ | Tape & Reel (TR) | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.181" (4.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
35TXV22M6.3X6.1CAP ALUM 22UF 20% 35V SMD |
320 |
|
Datasheet |
TXV | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | 1Ohm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 31.5 mA @ 120 Hz | 70 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
10SEV220M6.3X8CAP ALUM 220UF 20% 10V SMD |
318 |
|
Datasheet |
SEV | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 175 mA @ 120 Hz | 210 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-1HA220APCAP ALUM 22UF 20% 50V SMD |
1,916 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 204 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-1EA101UAPCAP ALUM 100UF 20% 25V SMD |
1,887 |
|
Datasheet |
S | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ECA-2AHG470BCAP ALUM 47UF 20% 100V RADIAL TH |
1,360 |
|
Datasheet |
NHG-A | Cut Tape (CT) | Active | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 247.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UUX1H470MNL1GSCAP ALUM 47UF 20% 50V SMD |
1,351 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 180 mA @ 120 Hz | 300.6 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-HA1V470UPCAP ALUM 47UF 20% 35V SMD |
1,165 |
|
Datasheet |
HA | Tape & Reel (TR) | Not For New Designs | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84 mA @ 120 Hz | 142.8 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
160LLE15MEFC10X9CAP ALUM 15UF 20% 160V RADIAL TH |
1,000 |
|
Datasheet |
LLE | Bulk | Not For New Designs | 15 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 180 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
10YXS1000MEFC10X12.5CAP ALUM 1000UF 20% 10V RADIAL |
977 |
|
Datasheet |
YXS | Bulk | Active | 1000 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 726 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
