Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
865060253008CAP ALUM 470UF 20% 10V SMD |
665 |
|
Datasheet |
WCAP-ASLL | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 357.5 mA @ 120 Hz | 550 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
25WXA330MEFC10X9CAP ALUM 330UF 20% 25V RADIAL TH |
628 |
|
Datasheet |
WXA | Bulk | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 310 mA @ 120 Hz | 372 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
400LLE2.2MEFC8X11.5CAP ALUM 2.2UF 20% 400V RADIAL |
586 |
|
Datasheet |
LLE | Bulk | Active | 2.2 µF | ±20% | 400 V | - | 15000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
865060353008CAP ALUM 330UF 20% 16V SMD |
555 |
|
Datasheet |
WCAP-ASLL | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 357.5 mA @ 120 Hz | 550 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ECA-2GHG3R3BCAP ALUM 3.3UF 20% 400V RADIAL |
519 |
|
Datasheet |
NHG-A | Cut Tape (CT) | Active | 3.3 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 60 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UVK1H221MPDCAP ALUM 220UF 20% 50V RADIAL TH |
510 |
|
Datasheet |
UVK | Bulk | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 645 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ECA-2GM4R7CAP ALUM 4.7UF 20% 400V RADIAL |
481 |
|
Datasheet |
M-A | Bulk | Active | 4.7 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 122.4 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
25YXG330MEFC10X12.5CAP ALUM 330UF 20% 25V RADIAL TH |
469 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 330 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 475.75 mA @ 120 Hz | - | 80 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
35ZLJ270M8X16CAP ALUM 270UF 20% 35V RADIAL TH |
386 |
|
Datasheet |
ZLJ | Bulk | Active | 270 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.6 A @ 100 kHz | 59 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPM1K470MPD6TDCAP ALUM 47UF 20% 80V RADIAL TH |
368 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 47 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 245 mA @ 120 Hz | 410 mA @ 10 kHz | 420 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
EKMG160ELL331MHB5DCAP ALUM 330UF 20% 16V RADIAL TH |
237 |
|
Datasheet |
KMG | Bulk | Active | 330 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 390 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKXE201ELL270MJ16SCAP ALUM 27UF 20% 200V RADIAL TH |
150 |
|
Datasheet |
KXE | Bulk | Active | 27 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EMZA160ARA470MF61GCAP ALUM 47UF 20% 16V SMD |
99 |
|
Datasheet |
Alchip™- MZA | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UKT1A331MPDCAP ALUM 330UF 20% 10V RADIAL TH |
35 |
|
Datasheet |
UKT | Bulk | Not For New Designs | 330 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 240 mA @ 120 Hz | 360 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|

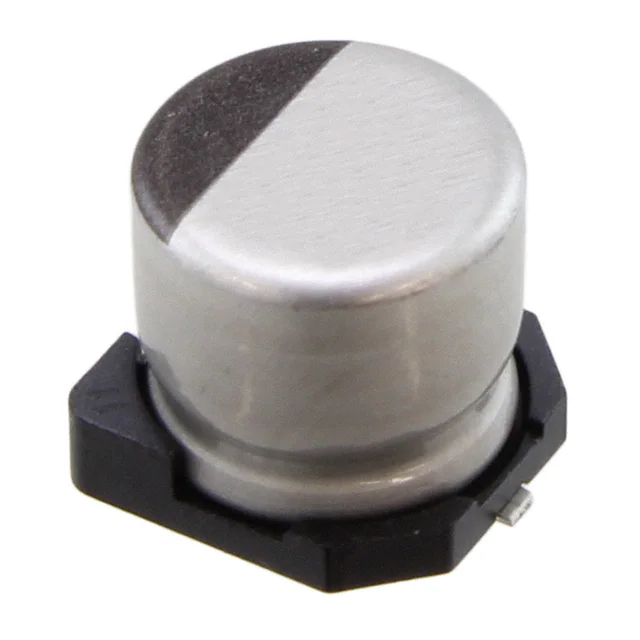

UCZ1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
1,730 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | 1.6Ohm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 34.5 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.248" (6.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UUL1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
1,682 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 25 mA @ 120 Hz | 37.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EEE-FKE151XSPCAP ALUM 150UF 20% 25V SMD |
1,677 |
|
Datasheet |
FKS | Tape & Reel (TR) | Not For New Designs | 150 µF | ±20% | 25 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

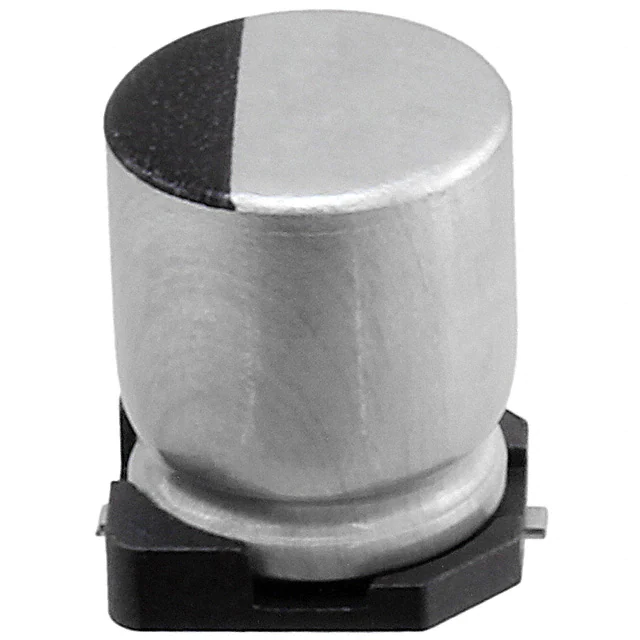

35TXV33M6.3X8CAP ALUM 33UF 20% 35V SMD |
1,621 |
|
Datasheet |
TXV | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | 300mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 63 mA @ 120 Hz | 140 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVY1V331MPD1TDCAP ALUM 330UF 20% 35V RADIAL TH |
1,404 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 525 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
ECA-2EM100BCAP ALUM 10UF 20% 250V RADIAL TH |
1,393 |
|
Datasheet |
M-A | Cut Tape (CT) | Active | 10 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
