Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWD0J221MCL1GSCAP ALUM 220UF 20% 6.3V SMD |
335 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
6.3AX1000MEFC10X9CAP ALUM 1000UF 20% 6.3V RADIAL |
268 |
|
Datasheet |
AX | Bulk | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 36 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|

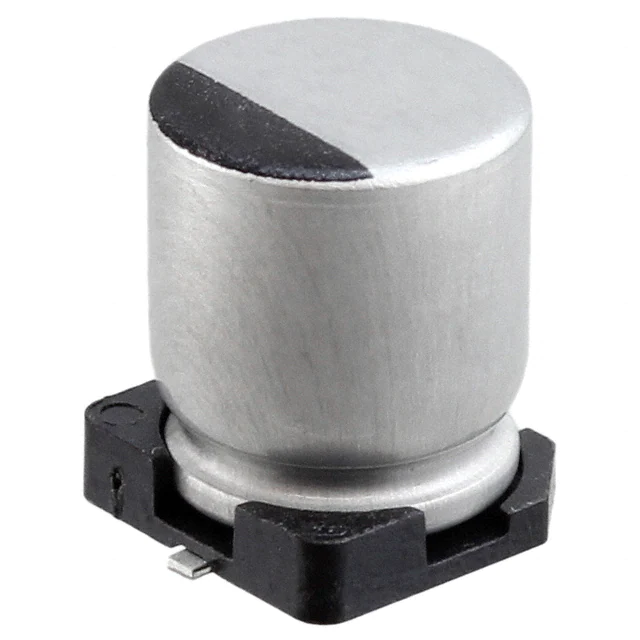

50THV22M6.3X8CAP ALUM 22UF 20% 50V SMD |
260 |
|
Datasheet |
THV | Tape & Reel (TR) | Active | 22 µF | ±20% | 50 V | 900mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 67.5 mA @ 120 Hz | 150 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-ED2C330CAP ALUM 33UF 20% 160V RADIAL TH |
240 |
|
Datasheet |
ED-A | Bulk | Active | 33 µF | ±20% | 160 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 232 mA @ 120 Hz | 580 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
860131275003CAP ALUM 3.3UF 20% 350V RADIAL |
233 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 3.3 µF | ±20% | 350 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 93.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
860010375019CAP ALUM 1500UF 20% 16V RADIAL |
228 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 1500 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.408 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
ELXZ160ELL561MH20DCAP ALUM 560UF 20% 16V RADIAL TH |
225 |
|
Datasheet |
LXZ | Bulk | Active | 560 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 405 mA @ 120 Hz | 810 mA @ 100 kHz | 80 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
EMZR100ARA151ME61GCAP ALUM 150UF 20% 10V SMD |
39 |
|
Datasheet |
Alchip™- MZR | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
865080153014CAP ALUM 1000UF 20% 6.3V SMD |
1,651 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 344.5 mA @ 120 Hz | 530 mA @ 100 kHz | 200 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
865060453006CAP ALUM 150UF 20% 25V SMD |
1,301 |
|
Datasheet |
WCAP-ASLL | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 325 mA @ 120 Hz | 500 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FR1A182BCAP ALUM 1800UF 20% 10V RADIAL |
1,158 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 1800 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UKL1A221MPDANACAP ALUM 220UF 20% 10V RADIAL TH |
1,000 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 465 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
10YXS680MEFC8X16CAP ALUM 680UF 20% 10V RADIAL TH |
959 |
|
Datasheet |
YXS | Bulk | Active | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 577.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EKYB6R3ELL821MHB5DCAP ALUM 820UF 20% 6.3V RADIAL |
942 |
|
Datasheet |
KYB | Bulk | Active | 820 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 504 mA @ 120 Hz | 840 mA @ 100 kHz | 87 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
160PK22MEFC10X12.5CAP ALUM 22UF 20% 160V RADIAL TH |
885 |
|
Datasheet |
PK | Bulk | Active | 22 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 195 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
|
16YXS470MEFC8X16CAP ALUM 470UF 20% 16V RADIAL TH |
867 |
|
Datasheet |
YXS | Bulk | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 577.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UCL1A681MNL1GSCAP ALUM 680UF 20% 10V SMD |
777 |
|
Datasheet |
UCL | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 425 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
860160374030CAP ALUM 820UF 20% 16V RADIAL TH |
684 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 820 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 640.32 mA @ 120 Hz | 1.104 A @ 100 kHz | 170 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
50ZLH180MEFC8X20CAP ALUM 180UF 20% 50V RADIAL TH |
642 |
|
Datasheet |
ZLH | Bulk | Active | 180 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | - | 46 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
860010275020CAP ALUM 2200UF 20% 10V RADIAL |
500 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.5488 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
