Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

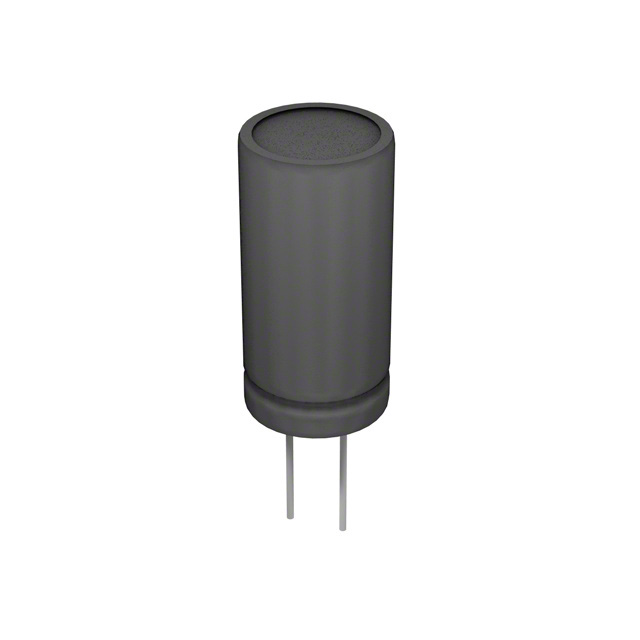

SH472M016STCAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4700 µF | ±20% | 16 V | 70mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 1.872 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

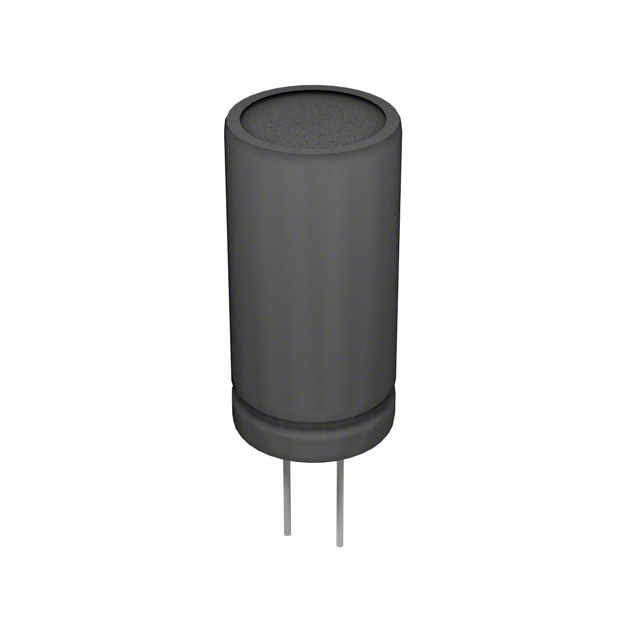

SH472M025STCAP ALUM 4700UF 20% 25V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4700 µF | ±20% | 25 V | 60mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 120 Hz | 2.028 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|

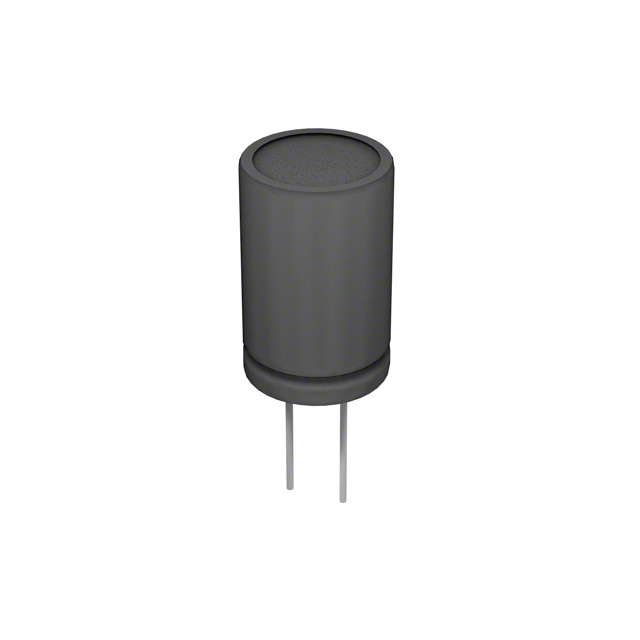

SH472M6R3STCAP ALUM 4700UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4700 µF | ±20% | 6.3 V | 90mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 1.584 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

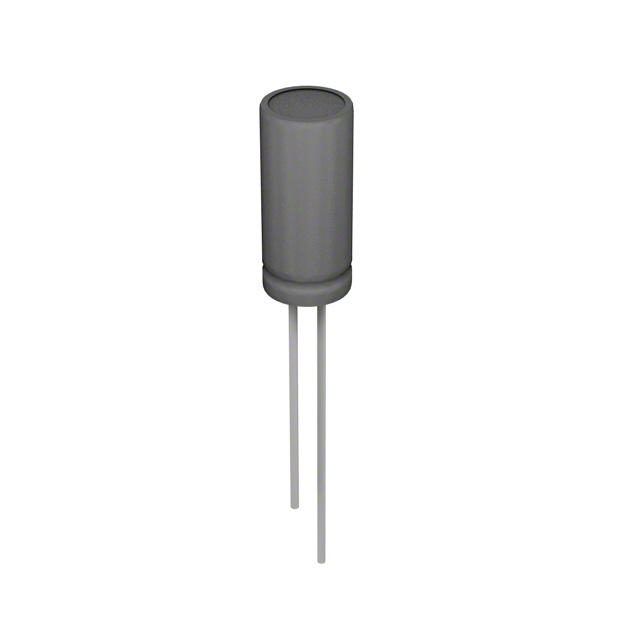

SH4R7M050STCAP ALUM 4.7UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4.7 µF | ±20% | 50 V | 33.86Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 42 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH4R7M063STCAP ALUM 4.7UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4.7 µF | ±20% | 63 V | 28.22Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH4R7M100STCAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4.7 µF | ±20% | 100 V | 28.22Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 37 mA @ 120 Hz | 51.8 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|

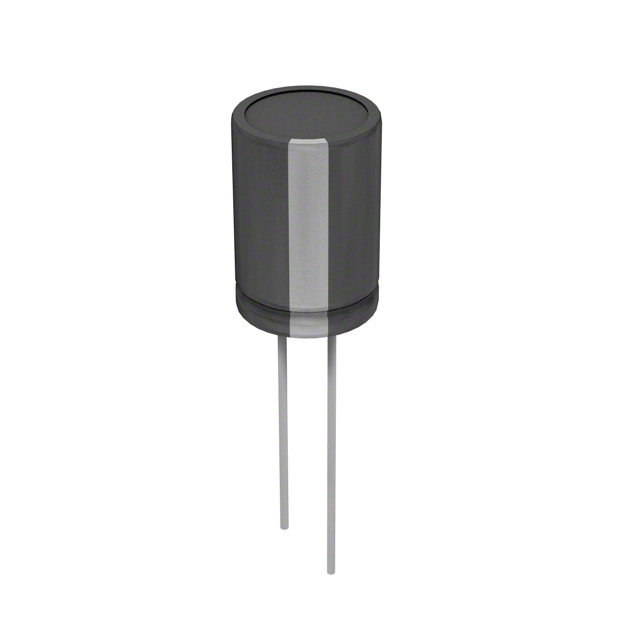

SH4R7M160STCAP ALUM 4.7UF 20% 160V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4.7 µF | ±20% | 160 V | 42.33Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 43 mA @ 120 Hz | 68.8 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|

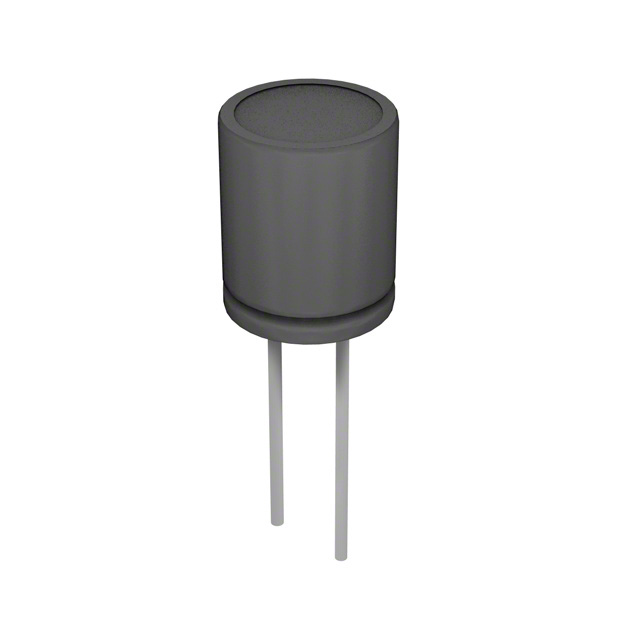

SH4R7M250STCAP ALUM 4.7UF 20% 250V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4.7 µF | ±20% | 250 V | 42.33Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
SHR47M050STCAP ALUM 0.47UF 20% 50V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SHR47M100STCAP ALUM 0.47UF 20% 100V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 0.47 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SK010M450STCAP ALUM 1UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
SK | Bulk | Active | 1 µF | ±20% | 450 V | 265.39Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
SK220M450STCAP ALUM 22UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
SK | Bulk | Active | 22 µF | ±20% | 450 V | 12.06Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SK221M6R3STCAP ALUM 220UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 220 µF | ±20% | 6.3 V | 1.33Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 264 mA @ 1 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
SK330M063STCAP ALUM 33UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SK | Bulk | Active | 33 µF | ±20% | 63 V | 3.62Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 182 mA @ 1 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
SK330M100STCAP ALUM 33UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SK | Bulk | Active | 33 µF | ±20% | 100 V | 3.22Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 170 mA @ 120 Hz | 221 mA @ 1 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.591" (15.00mm) | - | Through Hole | |
|
|
SK331M100STCAP ALUM 330UF 20% 100V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 330 µF | ±20% | 100 V | 320mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.118 A @ 1 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SK332M010STCAP ALUM 3300UF 20% 10V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 3300 µF | ±20% | 10 V | 100mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.54 A @ 1 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
SK332M016STCAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 3300 µF | ±20% | 16 V | 100mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.87 A @ 1 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.102" (28.00mm) | - | Through Hole | |
|
SK471M010STCAP ALUM 470UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SK | Bulk | Active | 470 µF | ±20% | 10 V | 540mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
SK471M100STCAP ALUM 470UF 20% 100V RADIAL |
0 |
|
Datasheet |
SK | Bulk | Active | 470 µF | ±20% | 100 V | 230mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.339" (34.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
