Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2WP121BACAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.456 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2WP121DACAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.456 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2WP151BACAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S2WP151DACAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2WP181CXCAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 180 µF | ±20% | 450 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
ECO-S2WP221CXCAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 220 µF | ±20% | 450 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2WP221EACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 220 µF | ±20% | 450 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2WP271DACAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
ECO-S2WP271EXCAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 270 µF | ±20% | 450 V | 614mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2WP331DACAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECE-S2WP331EXCAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
- |
- | Bulk | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2WP391EACAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 390 µF | ±20% | 450 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
ECO-S2WP471EXCAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 470 µF | ±20% | 450 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.542 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP470BACAP ALUM 47UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 47 µF | ±20% | 500 V | 3.527Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 882 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

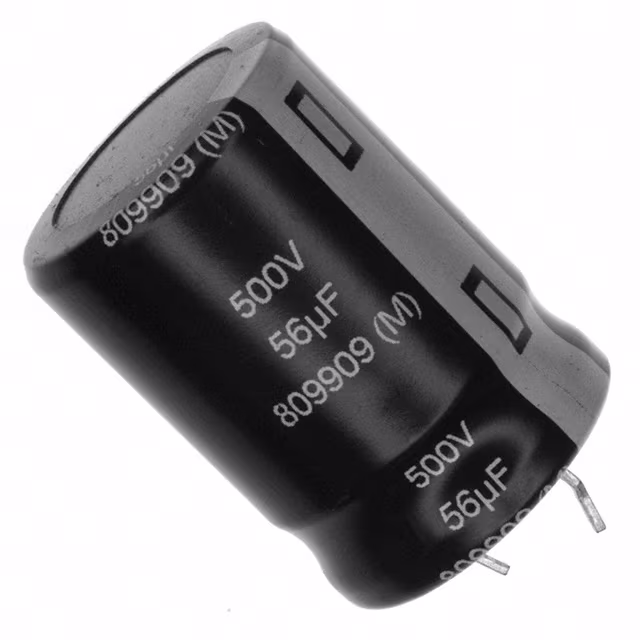

ECO-S2HP560BACAP ALUM 56UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 56 µF | ±20% | 500 V | 2.96Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2HP680BACAP ALUM 68UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2HP680CACAP ALUM 68UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S2HP820BACAP ALUM 82UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 82 µF | ±20% | 500 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2HP820CACAP ALUM 82UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 82 µF | ±20% | 500 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2HP101BACAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 100 µF | ±20% | 500 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
