Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2HP101CACAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 100 µF | ±20% | 500 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2HP121BACAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 120 µF | ±20% | 500 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

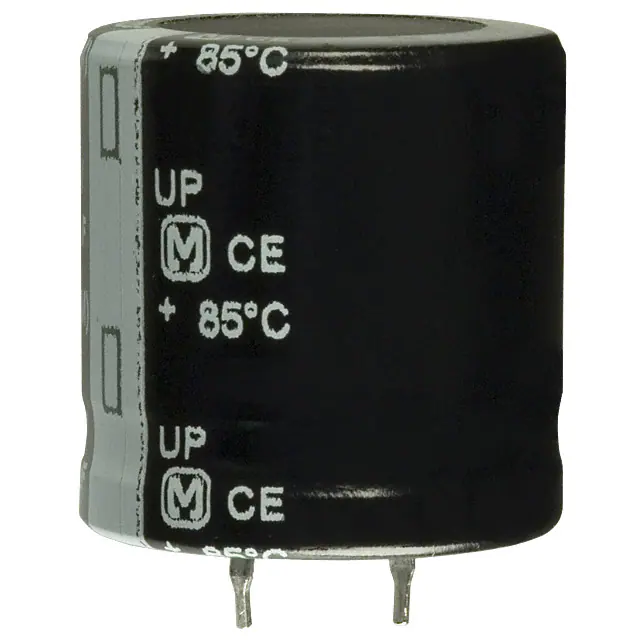

ECO-S2HP121DACAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 120 µF | ±20% | 500 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

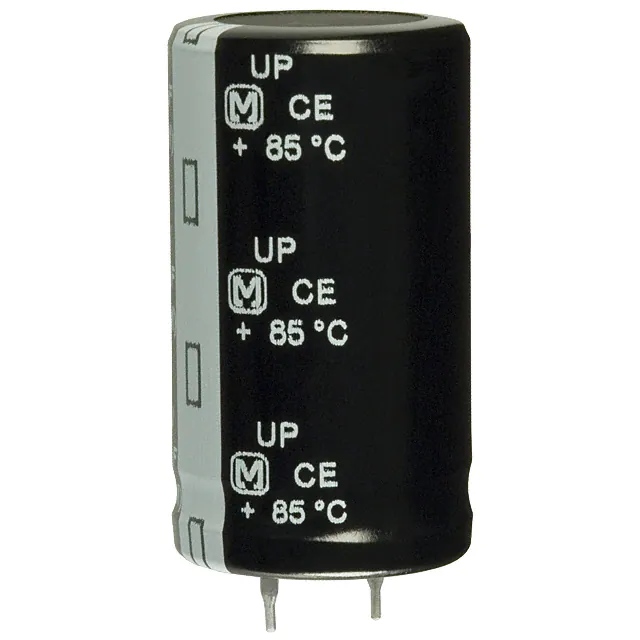

ECO-S2HP151CACAP ALUM 150UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 150 µF | ±20% | 500 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.8 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP151EACAP ALUM 150UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 150 µF | ±20% | 500 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2HP181CACAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 180 µF | ±20% | 500 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

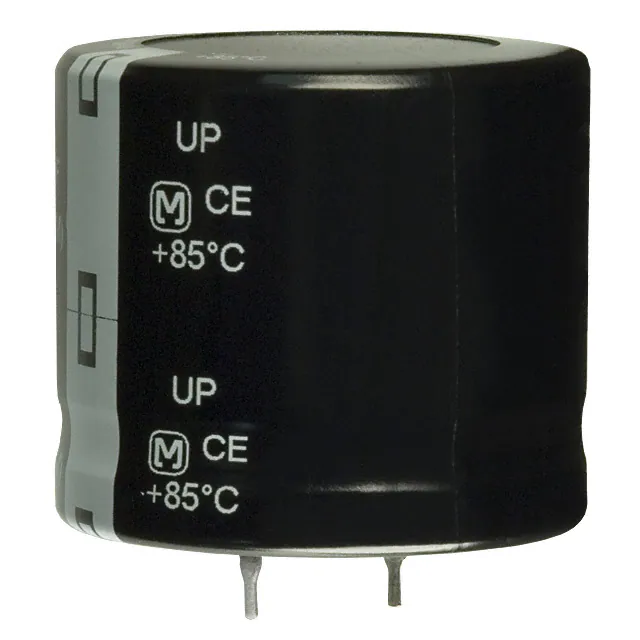

ECO-S2HP181EACAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 180 µF | ±20% | 500 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.904 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2HP221DACAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP221EACAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.156 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2HP271EACAP ALUM 270UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 270 µF | ±20% | 500 V | 614mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2HP331EACAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 330 µF | ±20% | 500 V | 502mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.786 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2HP391EACAP ALUM 390UF 20% 500V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 390 µF | ±20% | 500 V | 425mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.108 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S1CA332BACAP ALUM 3300UF 20% 16V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 16 V | 216mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.5 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1CA472BACAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 16 V | 123mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.748 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1EA222BACAP ALUM 2200UF 20% 25V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 25 V | 241mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1EA332BACAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 161mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 120 Hz | 1.863 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1VA152BACAP ALUM 1500UF 20% 35V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 35 V | 287mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1VA222BACAP ALUM 2200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 35 V | 196mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 1.702 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1HA102BACAP ALUM 1000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 50 V | 232mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1HA152BACAP ALUM 1500UF 20% 50V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 50 V | 155mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.438 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
