Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2W101BACAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 100 µF | ±20% | 450 V | 1.989Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.302 A @ 10 kHz | - | - | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

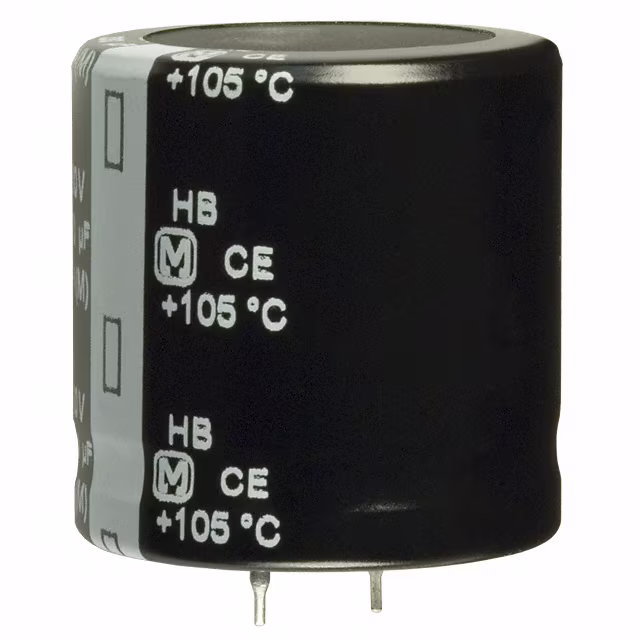

ECO-S2DB122EHCAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
- |
TS-HB | Bulk | Obsolete | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | - | - | Through Hole | |
|
ECO-S1CP472BACAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 4700 µF | ±20% | 16 V | 159mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.036 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1CP682BACAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 6800 µF | ±20% | 16 V | 110mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 2.956 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1CP822BACAP ALUM 8200UF 20% 16V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 8200 µF | ±20% | 16 V | 91mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1EP332BACAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 161mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 1.932 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1EP472BACAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 4700 µF | ±20% | 25 V | 113mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 2.749 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1EP562BACAP ALUM 5600UF 20% 25V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 5600 µF | ±20% | 25 V | 95mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.289 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1VP222BACAP ALUM 2200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 2200 µF | ±20% | 35 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.748 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1VP332BACAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 3300 µF | ±20% | 35 V | 111mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 120 Hz | 2.6335 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1VP392BACAP ALUM 3900UF 20% 35V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 3900 µF | ±20% | 35 V | 94mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.71 A @ 120 Hz | 3.117 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1HP152BACAP ALUM 1500UF 20% 50V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 50 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.426 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1HP222BACAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 2200 µF | ±20% | 50 V | 151mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.093 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1HP272BACAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 2700 µF | ±20% | 50 V | 123mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 2.565 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1KP681BACAP ALUM 680UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 680 µF | ±20% | 80 V | 390mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.173 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1KP102BACAP ALUM 1000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1000 µF | ±20% | 80 V | 265mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 1.737 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S1KP122BACAP ALUM 1200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1200 µF | ±20% | 80 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | 2.082 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S1KP152BACAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 80 V | 177mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 2.599 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S1KP152CACAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 80 V | 177mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 2.599 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S1KP182BACAP ALUM 1800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1800 µF | ±20% | 80 V | 147mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 2.898 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole |
