Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM0J391MPDCAP ALUM 390UF 20% 6.3V RADIAL |
2,990 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 390 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 345 mA @ 120 Hz | - | 170 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKMQ630ELL220ME11DCAP ALUM 22UF 20% 63V RADIAL TH |
2,960 |
|
Datasheet |
KMQ | Bulk | Active | 22 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 127.8 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPJ1V121MPD1TACAP ALUM 120UF 20% 35V RADIAL TH |
2,000 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 120 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 550 mA @ 10 kHz | 220 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
UPM0J391MPD1TACAP ALUM 390UF 20% 6.3V RADIAL |
2,000 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 390 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 345 mA @ 120 Hz | - | 170 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPS1A331MPD1TACAP ALUM 330UF 20% 10V RADIAL TH |
2,000 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 291.1 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
UPS2A220MPD1TACAP ALUM 22UF 20% 100V RADIAL TH |
2,000 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 22 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 39.1 mA @ 120 Hz | 230 mA @ 100 kHz | 680 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UCD1V100MCQ1GSCAP ALUM 35V POLAR |
2,000 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EKZE100ETD221MF11DCAP ALUM 220UF 20% 10V RADIAL TH |
1,899 |
|
Datasheet |
KZE | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 202.5 mA @ 120 Hz | 405 mA @ 100 kHz | 130 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EDK106M100A9MAACAP ALUM 10UF 20% 100V SMD |
12,488 |
|
Datasheet |
EDK | Tape & Reel (TR) | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 68.75 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPJ1A331MPD1TACAP ALUM 330UF 20% 10V RADIAL TH |
1,998 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | 260 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UKL1A151KPDANACAP ALUM 150UF 10% 10V RADIAL TH |
1,188 |
|
Datasheet |
UKL | Bulk | Active | 150 µF | ±10% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 375 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EST227M025AG3AACAP ALUM RAD 105C |
23,928 |
|
Datasheet |
EST | Bulk | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 640 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

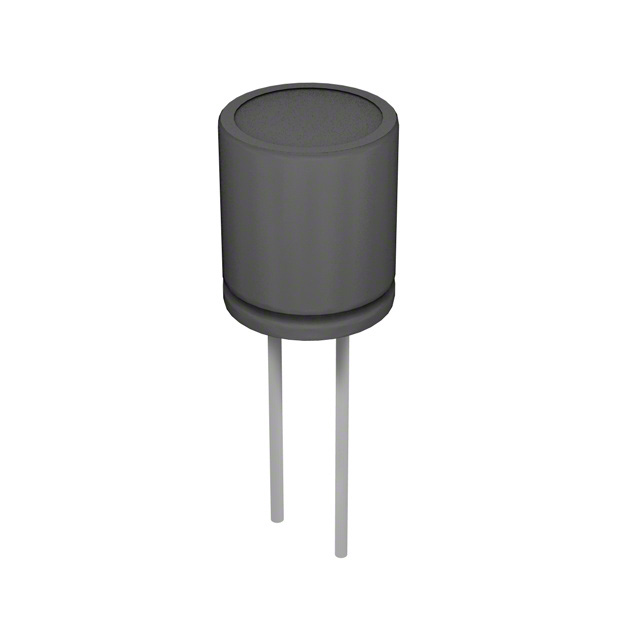

SEK2R2M350STCAP ALUM 2.2UF 20% 350V RADIAL |
16,000 |
|
Datasheet |
SEK | Bulk | Active | 2.2 µF | ±20% | 350 V | 120.63Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 63 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
|
EMZJ250ARA470MF61GCAP ALUM 47UF 20% 25V SMD |
14,320 |
|
Datasheet |
Alchip™- MZJ | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.272" (6.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

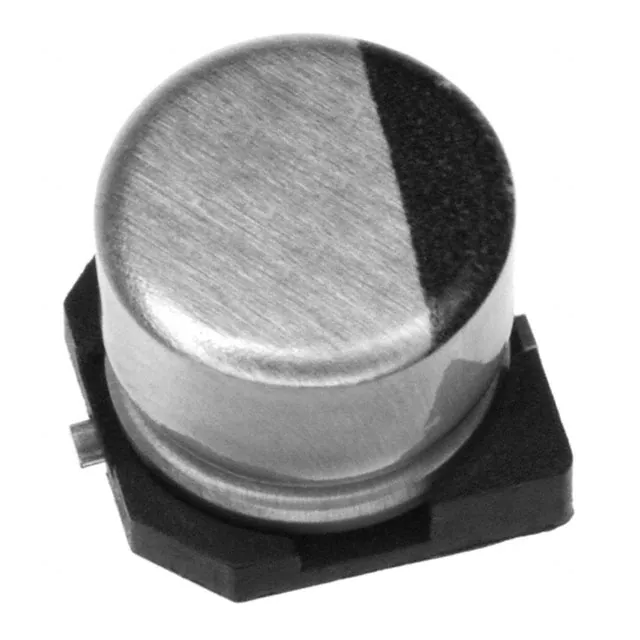

AVES226M25D16T-FCAP ALUM 22UF 20% 25V SMD |
10,000 |
|
Datasheet |
AVES | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | 12.1Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | 50.4 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EMVE630ARA220MF80GCAP ALUM 22UF 20% 63V SMD |
9,703 |
|
Datasheet |
Alchip™- MVE | Tape & Reel (TR) | Active | 22 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 58 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EMVY350ARA680MF80GCAP ALUM 68UF 20% 35V SMD |
4,367 |
|
Datasheet |
Alchip™- MVY | Tape & Reel (TR) | Active | 68 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 112 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EKZH6R3ELL122MJC5SCAP ALUM 1200UF 20% 6.3V RADIAL |
4,000 |
|
Datasheet |
KZH | Bulk | Active | 1200 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 744 mA @ 120 Hz | 1.24 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
UVZ1H101MPD1CCCAP ALUM 50V POLAR |
2,975 |
|
Datasheet |
UVZ | Cut Tape (CT) | Active | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKMG500EC3101MHB5DCAP ALUM 100UF 20% 50V RADIAL TH |
2,930 |
|
Datasheet |
KMG | Cut Tape (CT) | Active | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 270 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
