Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMG160ETD221MF11DCAP ALUM 220UF 20% 16V RADIAL TH |
1,970 |
|
Datasheet |
SMG | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 390 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ELXV250ETC121MF15DCAP ALUM 120UF 20% 25V RADIAL TH |
1,966 |
|
Datasheet |
LXV | Tape & Reel (TR) | Active | 120 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 181.5 mA @ 120 Hz | 330 mA @ 100 kHz | 270 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPJ1A391MPD6CAP ALUM 390UF 20% 10V RADIAL TH |
1,882 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 390 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | - | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

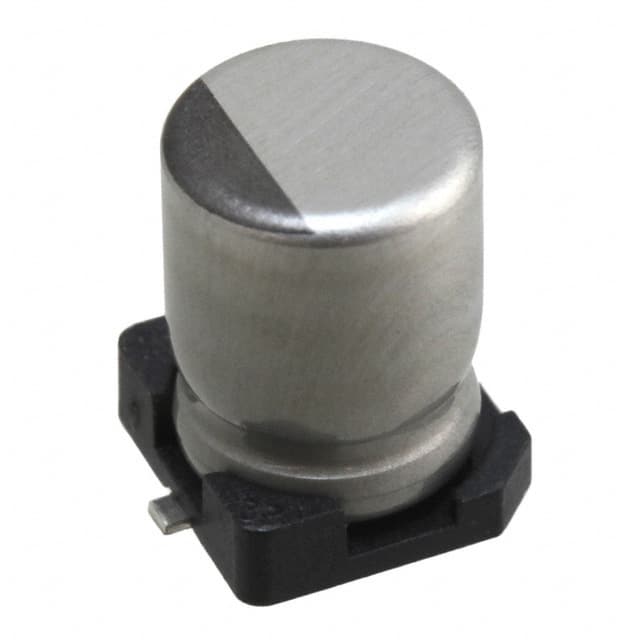

UCW1A330MCL1GSCAP ALUM 33UF 20% 10V SMD |
1,659 |
|
Datasheet |
UCW | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | 2.2 Ohms | - | 0.197" Dia (5.00mm) | 0.276" (7.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
ELXV500ELL560MF15DCAP ALUM 56UF 20% 50V RADIAL TH |
1,459 |
|
Datasheet |
LXV | Bulk | Active | 56 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 124 mA @ 120 Hz | 310 mA @ 100 kHz | 410 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EDK476M050S9HAACAP ALUM 47UF 20% 50V SMD |
19,910 |
|
Datasheet |
EDK | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 90 mA @ 120 Hz | 112.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
AVES106M25C12T-FCAP ALUM 10UF 20% 25V SMD |
10,000 |
|
Datasheet |
AVES | Tape & Reel (TR) | Active | 10 µF | ±20% | 25 V | 26.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 29.4 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EKMQ101ETC220MF11DCAP ALUM 22UF 20% 100V RADIAL TH |
3,900 |
|
Datasheet |
KMQ | Cut Tape (CT) | Active | 22 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 120 Hz | 167.4 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMQ500ELL220ME11DCAP ALUM 22UF 20% 50V RADIAL TH |
2,695 |
|
Datasheet |
KMQ | Bulk | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 68 mA @ 120 Hz | 122.4 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPJ0J821MPDCAP ALUM 820UF 20% 6.3V RADIAL |
2,000 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 820 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 795 mA @ 10 kHz | 130 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.827" (21.00mm) | - | Through Hole | |
|
UPJ1E181MPD1TACAP ALUM 180UF 20% 25V RADIAL TH |
2,000 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 180 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 550 mA @ 10 kHz | 220 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
UPW1V151MPD1TACAP ALUM 150UF 20% 35V RADIAL TH |
2,000 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 150 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 360.75 mA @ 120 Hz | - | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVR2F2R2MPD1TACAP ALUM 2.2UF 20% 315V RADIAL |
2,000 |
|
Datasheet |
UVR | Cut Tape (CT) | Active | 2.2 µF | ±20% | 315 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
EKMQ101ELL220MF11DCAP ALUM 22UF 20% 100V RADIAL TH |
1,949 |
|
Datasheet |
KMQ | Bulk | Active | 22 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 120 Hz | 167.4 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
16JZV10M4X6.1CAP ALUM 10UF 20% 16V SMD |
1,898 |
|
Datasheet |
JZV | Tape & Reel (TR) | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 28.8 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ELXY630ELL330MF15DCAP ALUM 33UF 20% 63V RADIAL TH |
1,897 |
|
Datasheet |
LXY | Bulk | Active | 33 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 93.2 mA @ 120 Hz | 233 mA @ 100 kHz | 610 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
ELXZ500ETD470MFB5DCAP ALUM 47UF 20% 50V RADIAL TH |
1,837 |
|
Datasheet |
LXZ | Cut Tape (CT) | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 260 mA @ 100 kHz | 450 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
-Series_-338_-4x5.3_-B.jpg)
|
AVES226M06B12T-FCAP ALUM 22UF 20% 6.3V SMD |
20,000 |
|
Datasheet |
AVES | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | 22.6Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 26.25 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV686M025A9GAACAP ALUM 68UF 20% 25V SMD |
19,990 |
|
Datasheet |
EEV | Tape & Reel (TR) | Active | 68 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 168 mA @ 120 Hz | 240 mA @ 100 kHz | 520 mOhms | - | 0.248" Dia (6.30mm) | 0.222" (5.65mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
476KXM063MCAP ALUM 47UF 20% 63V RADIAL TH |
16,000 |
|
Datasheet |
KXM | Bulk | Active | 47 µF | ±20% | 63 V | 3.5274Ohm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 192 mA @ 120 Hz | 480 mA @ 100 kHz | 810 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
