Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REH0816470M100KCAP ALUM 47UF 20% 100V RADIAL TH |
10,292 |
|
Datasheet |
REH | Cut Tape (CT) | Active | 47 µF | ±20% | 100 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 168 mA @ 120 Hz | 240 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
MAL214258339E3CAP ALUM 33UF 20% 63V RADIAL TH |
9,990 |
|
Datasheet |
142 RHS | Bulk | Active | 33 µF | ±20% | 63 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 150 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214299225E3CAP ALUM 100V POLAR |
9,988 |
|
Datasheet |
142 RHS | Bulk | Active | 22 µF | ±20% | 100 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 100 Hz | 139.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214294475E3CAP ALUM 10V POLAR |
9,947 |
|
Datasheet |
142 RHS | Bulk | Active | 470 µF | ±20% | 10 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 204 mA @ 100 Hz | 275.4 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214236101E3CAP ALUM 100UF 20% 25V RADIAL TH |
9,894 |
|
Datasheet |
142 RHS | Cut Tape (CT) | Active | 100 µF | ±20% | 25 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 191.7 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214255221E3CAP ALUM 220UF 20% 16V RADIAL TH |
9,871 |
|
Datasheet |
142 RHS | Bulk | Active | 220 µF | ±20% | 16 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 256.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214298475E3CAP ALUM 63V POLAR |
9,827 |
|
Datasheet |
142 RHS | Bulk | Active | 47 µF | ±20% | 63 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 100 Hz | 195 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214299105E3CAP ALUM 100V POLAR |
8,906 |
|
Datasheet |
142 RHS | Bulk | Active | 10 µF | ±20% | 100 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 100 Hz | 81 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
MAL214256101E3CAP ALUM 100UF 20% 25V RADIAL TH |
7,592 |
|
Datasheet |
142 RHS | Bulk | Active | 100 µF | ±20% | 25 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 191.7 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESH108M016AH4AACAP ALUM 1000UF 20% 16V RADIAL |
4,637 |
|
Datasheet |
ESH | Bulk | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 805 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.827" (21.00mm) | - | Through Hole | |
|
ELXV101ELL270MJC5SCAP ALUM 27UF 20% 100V RADIAL TH |
4,000 |
|
Datasheet |
LXV | Bulk | Active | 27 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 133 mA @ 120 Hz | 380 mA @ 100 kHz | 470 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

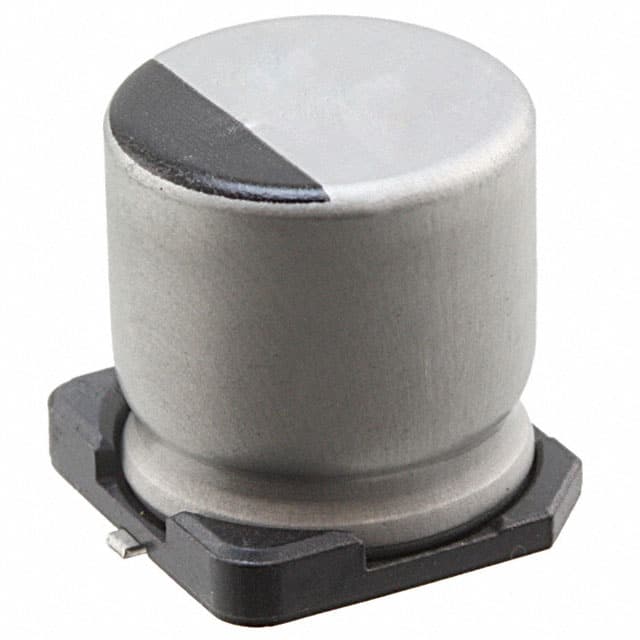

6.3JZV47M4X6.1CAP ALUM 47UF 20% 6.3V SMD |
2,000 |
|
Datasheet |
JZV | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 45 mA @ 120 Hz | - | 1.35 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UHD1C331MPD1TACAP ALUM 330UF 20% 16V RADIAL TH |
2,000 |
|
Datasheet |
UHD | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 532 mA @ 120 Hz | 760 mA @ 100 kHz | 72 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPJ1J680MPD1TACAP ALUM 68UF 20% 63V RADIAL TH |
2,000 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | - | 260 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
EKZH6R3ETD221ME11DCAP ALUM 220UF 20% 6.3V RADIAL |
1,998 |
|
Datasheet |
KZH | Cut Tape (CT) | Active | 220 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 330 mA @ 100 kHz | 240 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ELXY500ETC560MF15DCAP ALUM 56UF 20% 50V RADIAL TH |
1,493 |
|
Datasheet |
LXY | Tape & Reel (TR) | Active | 56 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 124 mA @ 120 Hz | 310 mA @ 100 kHz | 340 mOhms | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EDK226M063S9HAACAP ALUM 22UF 20% 63V SMD |
0 |
|
Datasheet |
EDK | Tape & Reel (TR) | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 40 mA @ 120 Hz | 50 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EXV107M016A9HAACAP ALUM 100UF 20% 16V SMD |
19,990 |
|
Datasheet |
EXV | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | 340mOhm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ESC337M025AG6AACAP ALUM 330UF 20% 25V RADIAL TH |
7,978 |
|
Datasheet |
ESC | Bulk | Active | 330 µF | ±20% | 25 V | 69mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 800 mA @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FC1V121BJCAP ALUM 120UF 20% 35V RADIAL TH |
2,823 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 120 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | - | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
