Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGR2G680MELA25CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LGR | Bulk | Active | 68 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 800.8 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ULD2W470MHDCAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
ULD | Bulk | Not For New Designs | 47 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 864 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGJ2E101MELYCAP ALUM 100UF 20% 250V SNAP TH |
13 |
|
Datasheet |
LGJ | Bulk | Active | 100 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 765 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UEP2A221MHDCAP ALUM 220UF 20% 100V RADIAL |
0 |
|
Datasheet |
UEP | Bulk | Not For New Designs | 220 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 510 mA @ 120 Hz | 765 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EKXN451ELL820MM20SCAP ALUM 82UF 20% 450V RADIAL TH |
11 |
|
Datasheet |
KXN | Bulk | Active | 82 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 1.6125 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
LGU2G101MELACAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 100 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.001 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LLS1J332MELZCAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 3.128 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UKA1C682MHDCAP ALUM 6800UF 20% 16V RADIAL |
22 |
|
Datasheet |
UKA | Bulk | Not For New Designs | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 1.78 A @ 120 Hz | 2.047 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|

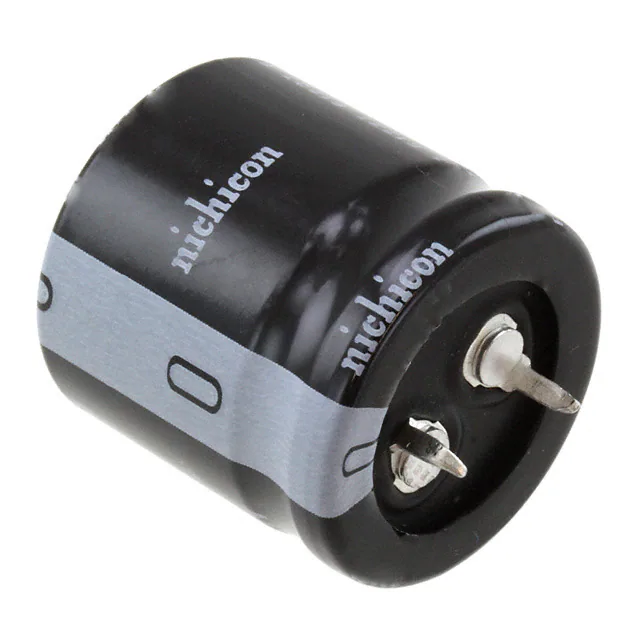

LLS2D471MELACAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.925 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
63ZLJ2200M18X35.5CAP ALUM 2200UF 20% 63V RADIAL |
0 |
|
Datasheet |
ZLJ | Bulk | Active | 2200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.73 A @ 120 Hz | 3.9 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
ESK227M350AQ4AACAP ALUM 220UF 20% 350V RADIAL |
0 |
|
Datasheet |
ESK | Box | Active | 220 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 564 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELH478M050AS1AACAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
ELH | Box | Active | 4700 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.95 A @ 120 Hz | 3.422 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ELXS201VSN471MP30SCAP ALUM 470UF 20% 200V SNAP TH |
5 |
|
Datasheet |
LXS | Bulk | Active | 470 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.31 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|

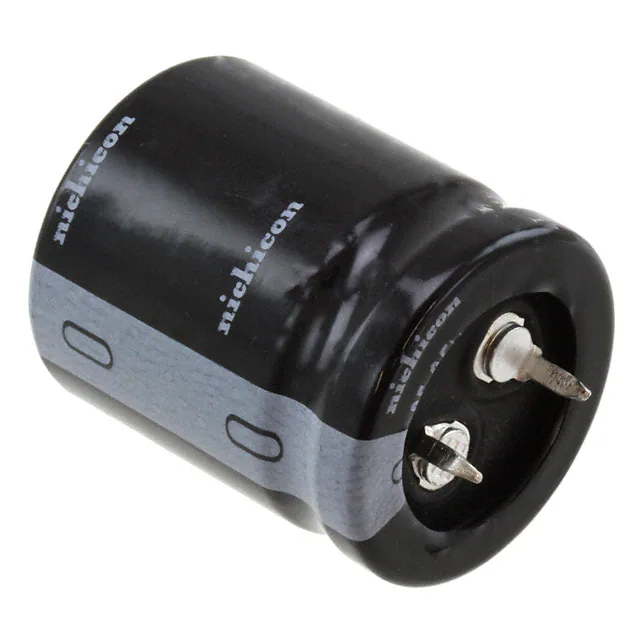

LLS1H472MELACAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 4700 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.07 A @ 120 Hz | 3.5305 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400VXG100MEFCSN22X30CAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 100 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.246 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ESK478M050AQ3AACAP ALUM RAD 85C |
0 |
|
Datasheet |
ESK | Bulk | Active | 4.7 mF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UHW1E562MHDCAP ALUM 5600UF 20% 25V RADIAL |
0 |
|
Datasheet |
UHW | Bulk | Active | 5600 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 4.2 A @ 100 kHz | 10 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LGJ2G121MELB20CAP ALUM 120UF 20% 400V SNAP TH |
2 |
|
Datasheet |
LGJ | Bulk | Active | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.2298 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL211838479E3CAP ALUM 47UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
118 AHT | Cut Tape (CT) | Active | 47 µF | ±20% | 63 V | 2.4Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 163.8 mA @ 10 kHz | 1.5 Ohms | - | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
400HXW120MEFR12.5X50CAP ALUM 120UF 20% 400V RADIAL |
0 |
|
Datasheet |
HXW | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.425 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 2.047" (52.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
