Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25PK10000MEFC18X35.5CAP ALUM 10000UF 20% 25V RADIAL |
0 |
|
Datasheet |
PK | Bulk | Active | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EKYB101ELL821MMP1SCAP ALUM 820UF 20% 100V RADIAL |
0 |
|
Datasheet |
KYB | Bulk | Active | 820 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 120 Hz | 3.05 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UKL1V222KHDCAP ALUM 2200UF 10% 35V RADIAL |
0 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 2200 µF | ±10% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 1.817 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EGPA500ELL222ML40SCAP ALUM 2200UF 20% 50V RADIAL |
0 |
|
Datasheet |
GPA | Bulk | Active | 2200 µF | ±20% | 50 V | 20mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.79 A @ 120 Hz | 3.72 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
EKXL401ELL101MM25SCAP ALUM 100UF 20% 400V RADIAL |
0 |
|
Datasheet |
KXL | Bulk | Active | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.5975 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UFW1C103MHDCAP ALUM 10000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Not For New Designs | 10000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.64 A @ 120 Hz | 3.036 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.398" (35.50mm) | - | Through Hole | |
|
160TXW270MEFR12.5X40CAP ALUM 270UF 20% 160V RADIAL |
0 |
|
Datasheet |
TXW | Bulk | Not For New Designs | 270 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 1.41 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
UBY2A301MHLCAP ALUM 300UF 20% 100V RADIAL |
1 |
|
Datasheet |
UBY | Bulk | Active | 300 µF | ±20% | 100 V | 42mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.555 A @ 120 Hz | 3.11 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
UUJ2D101MNJ6MSCAP ALUM 100UF 20% 200V SMD |
0 |
|
Datasheet |
UUJ | Tape & Reel (TR) | Active | 100 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 410 mA @ 120 Hz | 656 mA @ 10 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
200VXH330MEFCSN22X25CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 2.115 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLS1V472MELZCAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 4700 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 2.829 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGJ2D181MELY20CAP ALUM 180UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 180 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.02 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCY2C331MHDCAP ALUM 330UF 20% 160V RADIAL |
0 |
|
Datasheet |
UCY | Bulk | Active | 330 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.51 A @ 120 Hz | 3.02 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|

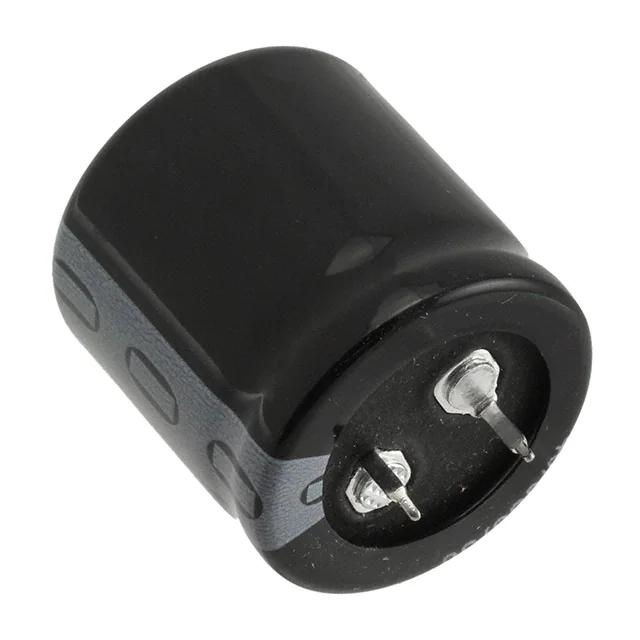

B41231C4229M000CAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
B41231 | Bulk | Active | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.39 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU2D331MELACAP ALUM 330UF 20% 200V SNAP TH |
8 |
|
Datasheet |
LGU | Bulk | Active | 330 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.875 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EKXG201ELL331MMP1SCAP ALUM 330UF 20% 200V RADIAL |
0 |
|
Datasheet |
KXG | Bulk | Last Time Buy | 330 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 3.2175 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL213821109E3CAP ALUM 10UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | 14Ohm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 51 mA @ 100 Hz | - | 2.7 Ohms | - | 0.248" Dia x 0.500" L (6.30mm x 12.70mm) | - | - | Through Hole | |
|
B41858D5568M000CAP ALUM 5600UF 20% 25V RADIAL |
0 |
|
Datasheet |
B41858 | Bulk | Active | 5600 µF | ±20% | 25 V | 20mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 3.864 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKXJ201ELL331MMN3SCAP ALUM 330UF 20% 200V RADIAL |
0 |
|
Datasheet |
KXJ | Bulk | Active | 330 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.395 A @ 120 Hz | 3.13875 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
35YXS4700MEFC18X40CAP ALUM 4700UF 20% 35V RADIAL |
13 |
|
Datasheet |
YXS | Bulk | Active | 4700 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.185 A @ 120 Hz | 4.55 A @ 100 kHz | 12 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
