Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-ED2E101SCAP ALUM 100UF 20% 250V RADIAL |
0 |
|
Datasheet |
ED-A | Bulk | Active | 100 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 1.5 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

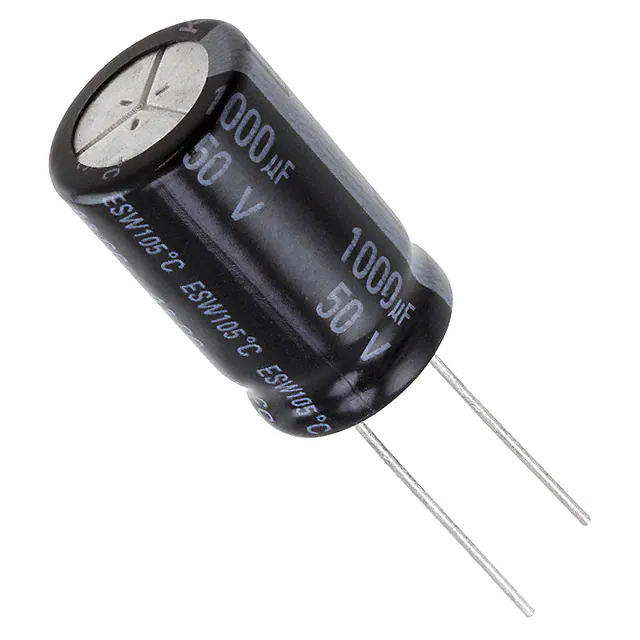

ESW108M050AM7AACAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
ESW | Bulk | Active | 1000 µF | ±20% | 50 V | 25mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.533 A @ 120 Hz | 2.555 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
228TTA010MCAP ALUM 2200UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
TTA | Bulk | Active | 2200 µF | ±20% | 10 V | 211mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.408 A @ 50 kHz | - | - | 0.512" Dia x 1.024" L (13.00mm x 26.00mm) | - | - | Through Hole | |
|

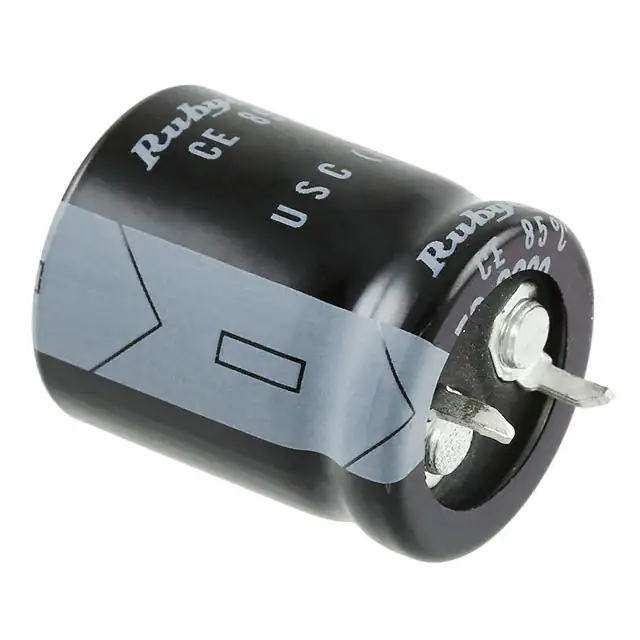

35USC4700MEFCSN22X25CAP ALUM 4700UF 20% 35V SNAP TH |
15 |
|
Datasheet |
USC | Bulk | Not For New Designs | 4700 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 2.829 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKW1V222MHDCAP ALUM 2200UF 20% 35V RADIAL |
0 |
|
Datasheet |
UKW | Bulk | Not For New Designs | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 120 Hz | 2.07 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
UCS2D221MHDCAP ALUM 220UF 20% 200V RADIAL |
0 |
|
Datasheet |
UCS | Bulk | Active | 220 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.183 A @ 120 Hz | 2.365 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEU-FC1J122CAP ALUM 1200UF 20% 63V RADIAL |
1 |
|
Datasheet |
FC | Bulk | Active | 1200 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.36 A @ 120 Hz | 2.95 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EKXG251ELL151MM25SCAP ALUM 150UF 20% 250V RADIAL |
0 |
|
Datasheet |
KXG | Bulk | Last Time Buy | 150 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.935 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKXG161ELL331MMN3SCAP ALUM 330UF 20% 160V RADIAL |
0 |
|
Datasheet |
KXG | Bulk | Last Time Buy | 330 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | 3.1275 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
865060763010CAP ALUM 470UF 20% 63V SMD |
16 |
|
Datasheet |
WCAP-ASLL | Tape & Reel (TR) | Active | 470 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 916.5 mA @ 120 Hz | 1.41 A @ 100 kHz | 82 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.642" L x 0.642" W (16.30mm x 16.30mm) | Surface Mount | |
|
ECA-1HM332CAP ALUM 3300UF 20% 50V RADIAL |
0 |
|
Datasheet |
M-A | Bulk | Active | 3300 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.55 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EKMQ500ELL222MLN3SCAP ALUM 2200UF 20% 50V RADIAL |
0 |
|
Datasheet |
KMQ | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.5228 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UVY1H222MHDCAP ALUM 2200UF 20% 50V RADIAL |
21 |
|
Datasheet |
UVY | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.6215 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
63ZLJ1200M12.5X40CAP ALUM 1200UF 20% 63V RADIAL |
16 |
|
Datasheet |
ZLJ | Bulk | Active | 1200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 3.8 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKYC500ELL202ML30SCAP ALUM 2000UF 20% 50V RADIAL |
13 |
|
Datasheet |
KYC | Bulk | Active | 2000 µF | ±20% | 50 V | 25mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.148 A @ 120 Hz | 3.58 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EKYB250ELL822MMP1SCAP ALUM 8200UF 20% 25V RADIAL |
0 |
|
Datasheet |
KYB | Bulk | Active | 8200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.638 A @ 120 Hz | 4.28 A @ 100 kHz | 12 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCX1H391MNS1MSCAP ALUM 390UF 20% 50V SMD |
0 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 390 µF | ±20% | 50 V | 90mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
EKZN500ELL222ML40SCAP ALUM 2200UF 20% 50V RADIAL |
8 |
|
Datasheet |
KZN | Bulk | Active | 2200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.375 A @ 120 Hz | 4.5 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
EKYB350ELL472ML40SCAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
Datasheet |
KYB | Bulk | Active | 4700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.587 A @ 120 Hz | 4.22 A @ 100 kHz | 13 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
EKMG500ELL332MMP1SCAP ALUM 3300UF 20% 50V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Active | 3300 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 1.9116 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
