Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAS800BUZZER PIEZO 12V 26MM TH |
0 |
|
Datasheet |
MAS | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 9 ~ 12V | 2.7kHz | Piezo | Single Tone | - | 103dB @ 12V, 10cm | 50mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 1.024" Dia (26.00mm) |
|
PK-27A35PSQBUZZER PIEZO 12V 30MM TH |
0 |
|
Datasheet |
PK | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo (with Feedback) | Single Tone | - | 95dB @ 12V, 30cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|

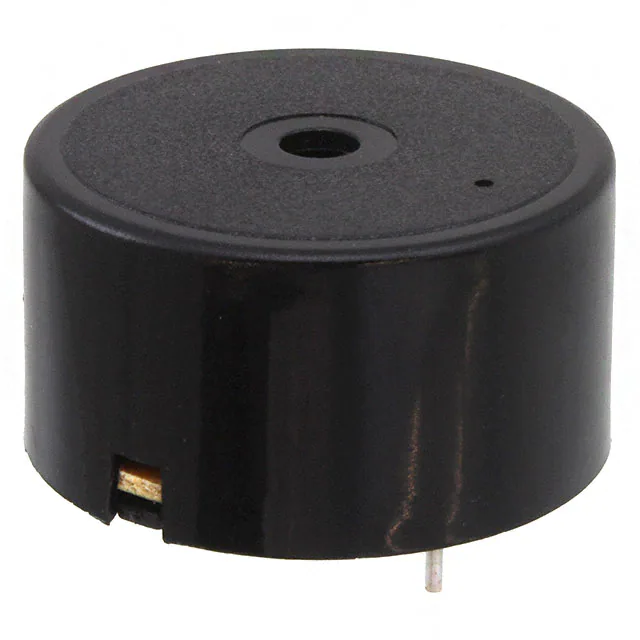

PK-27N25PSQBUZZER PIEZO 12V 30MM TH |
0 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
FM-12B-901ABUZZER 12V 43MM TH |
18 |
|
Datasheet |
- | Tray | Active | - | - | 12 V | 6 ~ 28V | 2.9kHz | - | Pulse, Fast | - | 90dB @ 12V, 60cm | 32mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.693" Dia (43.00mm) |
|
IP432912-2BUZZER PIEZO 12V 43.5MM PNL MNT |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 16V | 2.9kHz | Piezo | Dual Tone | - | 100dB @ 12V, 10cm | - | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.713" Dia (43.50mm) |
|

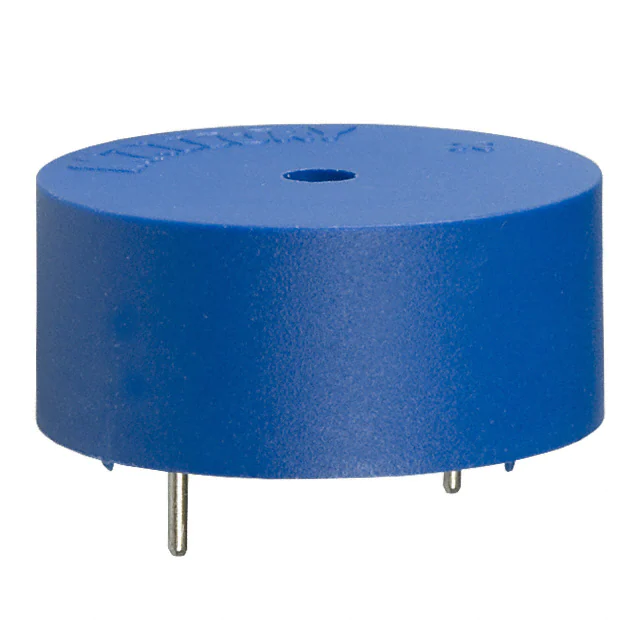

MSR516XBUZZER PIEZO 23MM TH |
0 |
|
Datasheet |
MSR | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 5 ~ 16V | 3.4kHz | Piezo | Siren | - | 75dB @ 5V, 61cm | 3 ~ 12mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|

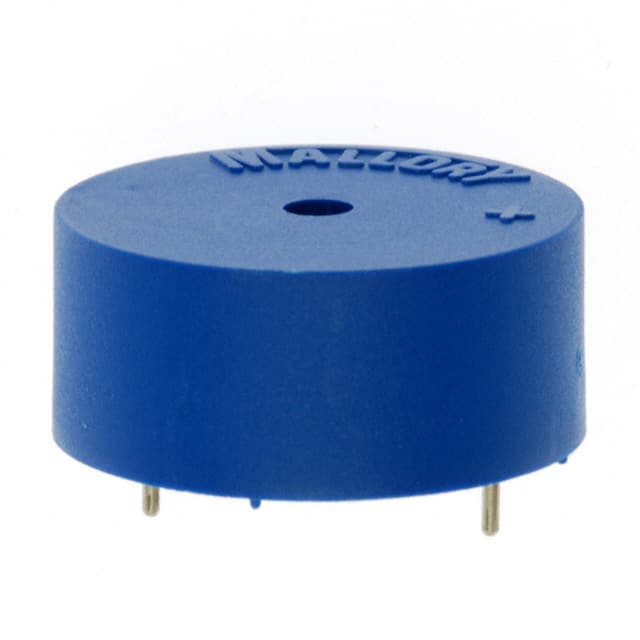

MSR516XRBUZZER PIEZO 23MM TH |
0 |
|
Datasheet |
MSR | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 5 ~ 16V | 3.4kHz | Piezo | Siren | - | 82dB @ 5V, 30cm | 3 ~ 12mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
CI25P-16T290-C-1XBUZZER PIEZO 12V 25.4MM TH |
0 |
|
Datasheet |
- | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 98dB @ 12V, 61cm | 40mA | Top | -30°C ~ 65°C | - | - | IP68 - Dust Tight, Waterproof | Through Hole | PC Pins | 1.000" Dia (25.40mm) | |
|

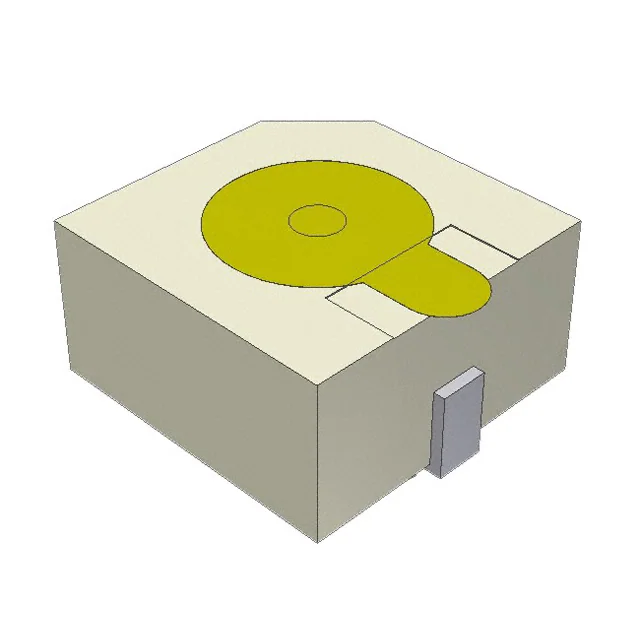

SMI-1324-TW-5V-R-T/RBUZZER MAGNETIC 5V 12.5X12.5 SMD |
0 |
|
Datasheet |
SMI | Tape & Reel (TR) | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
|
PK-27N35PSQBUZZER PIEZO 12V 30MM TH |
0 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
|
PK-27A35WQBUZZER PIEZO 12V 30MM FLANGE |
18 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
|
MSR414NRBUZZER PIEZO 23MM TH |
0 |
|
Datasheet |
MSR | Bulk | Not For New Designs | Indicator, Internally Driven | DC | - | 4 ~ 14V | 3.5kHz | Piezo | Single Tone | - | 88dB @ 4V, 30cm | 3 ~ 12mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
|
PS-583QBUZZER PIEZO 12V 50MM FLANGE |
0 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz | Piezo | Siren, Fast | - | 100dB @ 12V, 100cm | 300mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.969" Dia (50.00mm) |
|
FM-24A-901ABUZZER 12V 43MM TH |
25 |
|
Datasheet |
- | Tray | Active | - | - | 12 V | 6 ~ 28V | 2.9kHz | - | Pulse, Fast | - | 90dB @ 12V, 30cm | 10mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.693" Dia (43.00mm) |
|
|
PLD-27N36WQBUZZER PIEZO 12V 30MM FLANGE |
0 |
|
Datasheet |
PLD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Pin Selectable | Variable | 90dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
|
PFD-21N30WQBUZZER PIEZO 12V 24MM FLANGE |
0 |
|
Datasheet |
PFD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Pin Selectable | 3 PPS | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
PK-16N04WA-03QBUZZER MAGN 3V 32X17 W FLANG |
0 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 4V | 400Hz | Magnetic | Single Tone | - | 82dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
|
|
PF-21N30WQBUZZER PIEZO 12V 24MM FLANGE |
0 |
|
Datasheet |
PF | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Pulse, Fast | 3 PPS | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
|
PLD-21N30WQBUZZER PIEZO 12V 24MM FLANGE |
0 |
|
Datasheet |
PLD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Pin Selectable | Variable | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
|
PS-4529W-100AQBUZZER PIEZO 12V 45MM PNL MNT |
0 |
|
Datasheet |
PS | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 1.5 ~ 15V | 2.9kHz | Piezo | Single Tone | - | 105dB @ 12V, 30cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Panel Mount | Wire Leads | 1.772" Dia (45.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
